/Products/Electric Motors/Single Phase/Leeson/TEFC, Rigid Base/092116.00 Leeson 1/6HP General Purpose Electric Motor, 1800 RPM
Click Image to Expand

Product ID: 092116.00

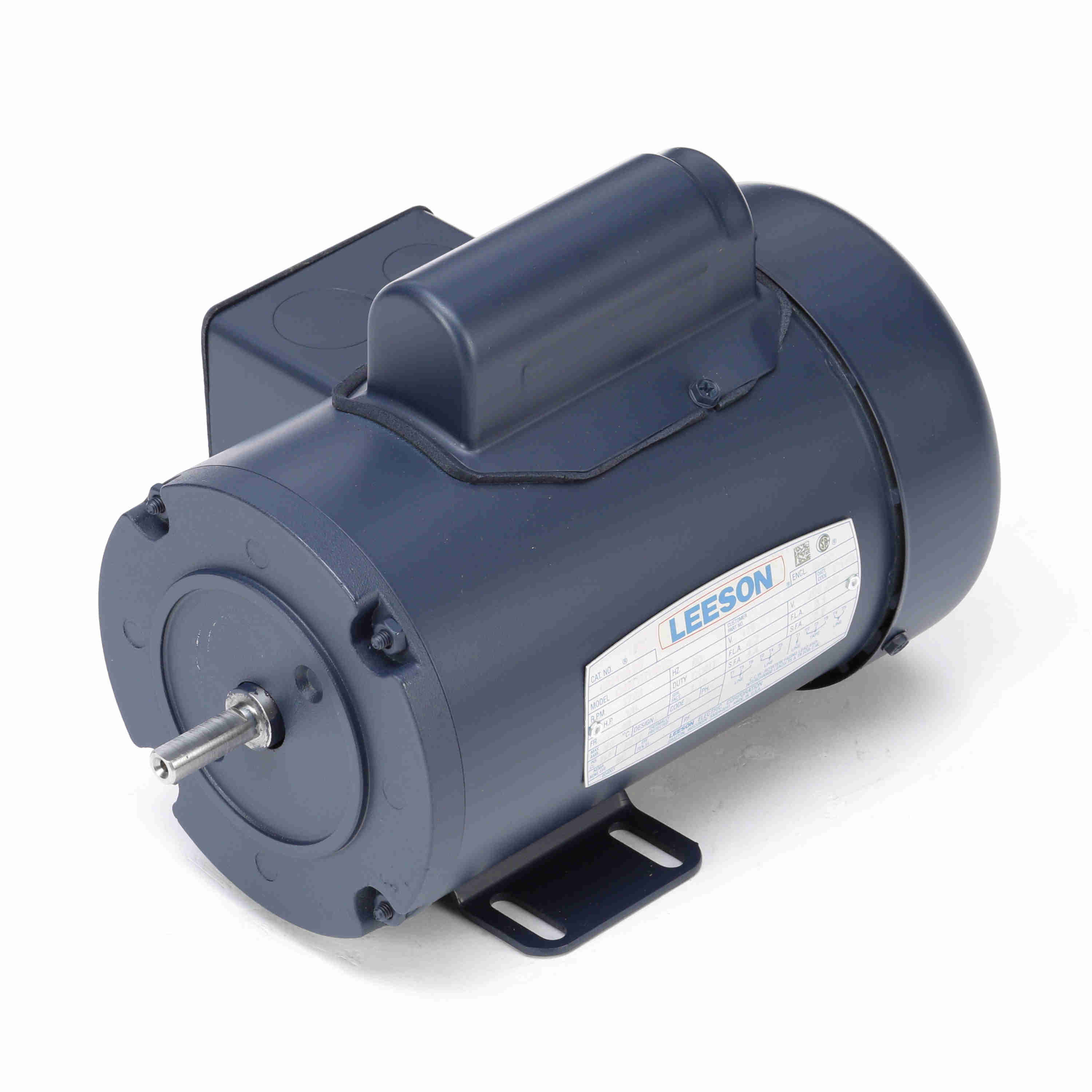

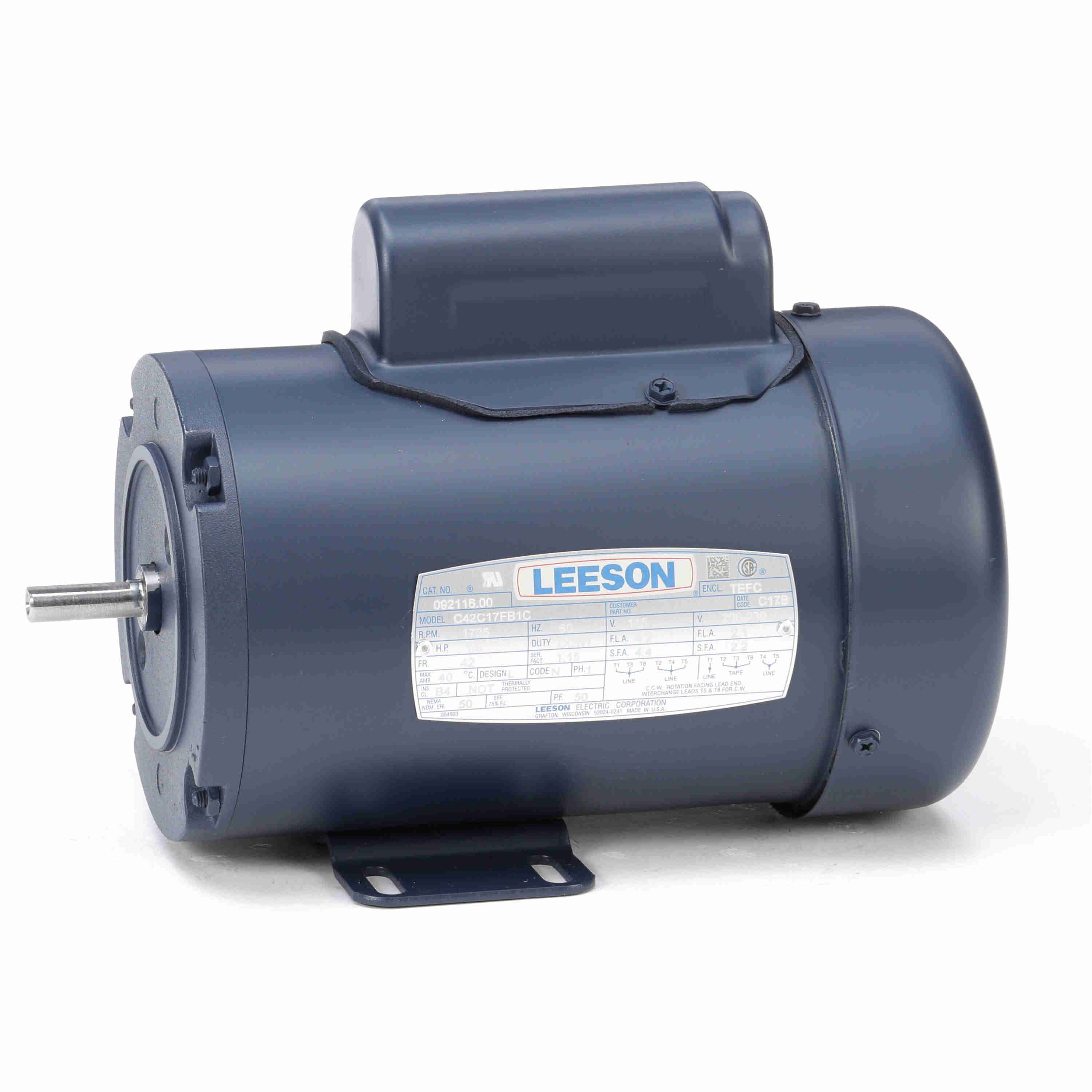

092116.00 Leeson 1/6HP General Purpose Electric Motor, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 092116.00

Selected accessories will also be added to cart
$399.97 / Each
Quantity:
TEFC, 42 Frame, 115/208-230VAC 60Hz Single Phase

Features

Features
  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • 1-year warranty on general purpose motors
  • UL recognized component listing and CSA certified

General Specifications

General Specifications
Model :C42C17FB1C Catalog No :092116.00
Part Description :1/6HP..1725RPM.42.TEFC.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C42C17FB1C Category :Totally Enclosed Fan Cooled (TEFC)
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.17 Hp Output KW :0.13 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :4.2/2.1 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :50 % Duty :Continuous
Insulation Class :B Design Code :L
KVA Code :N Frame :42
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :9.44 in Frame Length :6.00 in
Shaft Diameter :0.375 in Shaft Extension :1.12 in
Assembly/Box Mounting :F1 ONLY UPC :691720990049
Weight :20.00 LB
