/Products/Electric Motors/3 Phase Explosion Proof/WEG/Foot Mount/07536XT3E365TS WEG 75HP Explosion Proof Electric Motor, 3600RPM

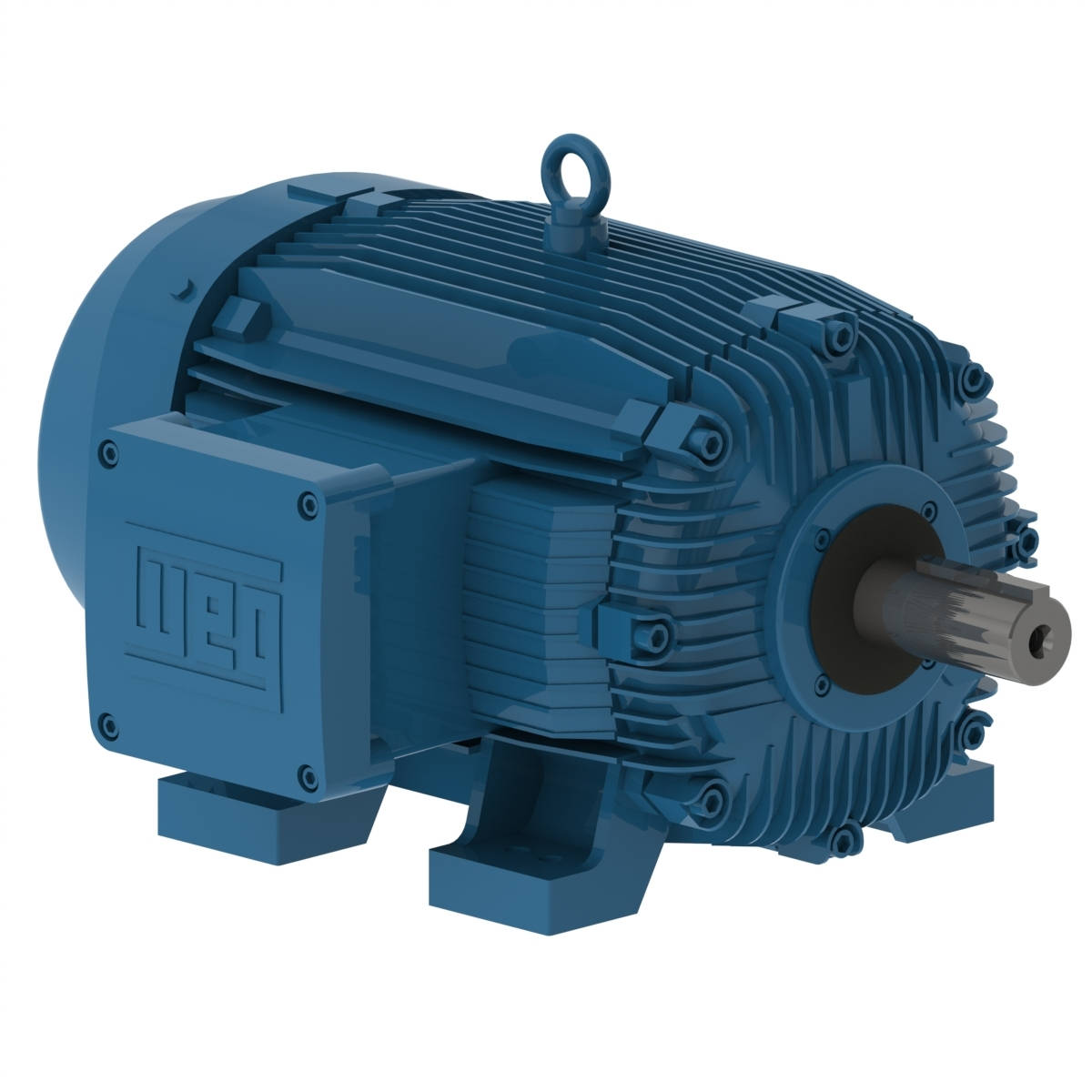

07536XT3E365TS WEG 75HP Explosion Proof Electric Motor, 3600RPM
Enlarge Photo

Product ID: 07536XT3E365TS

07536XT3E365TS WEG 75HP Explosion Proof Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 07536XT3E365TS

Selected accessories will also be added to cart
$8,463.75 / Each
Quantity:
IC411 - TEFC, IP55, 364TS/365TS Frame, 230/460/380VAC 50/60Hz 3 Phase, 11439795, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 230/460 V
Rated current 165/82.4 A
L. R. Amperes 1154/577 A
LRC 7.0x(Code G)
No load current 37.0/18.5 A
Rated torque 111 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 9.96 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 85.0 dB(A)
Approx. weight³ 1010 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  94.1  94.1

Power factor

50% 75% 100%
0.81  0.87  0.89
Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 82.1 A
L. R. Amperes 542 A
LRC 6.6x(Code G)
No load current 18.2 A
Rated torque 107 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 9.96 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 82.0 dB(A)
Approx. weight³ 1010 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.1  93.6

Power factor

50% 75% 100%
0.81  0.87  0.89
Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 78.4 A
L. R. Amperes 572 A
LRC 7.3x(Code H)
No load current 19.5 A
Rated torque 107 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 9.96 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 82.0 dB(A)
Approx. weight³ 1010 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.7  94.1  94.1

Power factor

50% 75% 100%
0.79  0.86  0.88
Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 75.3 A
L. R. Amperes 595 A
LRC 7.9x(Code J)
No load current 20.2 A
Rated torque 106 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 9.96 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 82.0 dB(A)
Approx. weight³ 1010 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.1  94.5

Power factor

50% 75% 100%
0.77  0.85  0.88

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Sinterized, Exd
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
