/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount, C-Face, AEGIS SGR/07536OT3E364TSC-W40G WEG 75HP, General Purpose Electric Motor, 3600RPM

Product ID: 07536OT3E364TSC-W40G

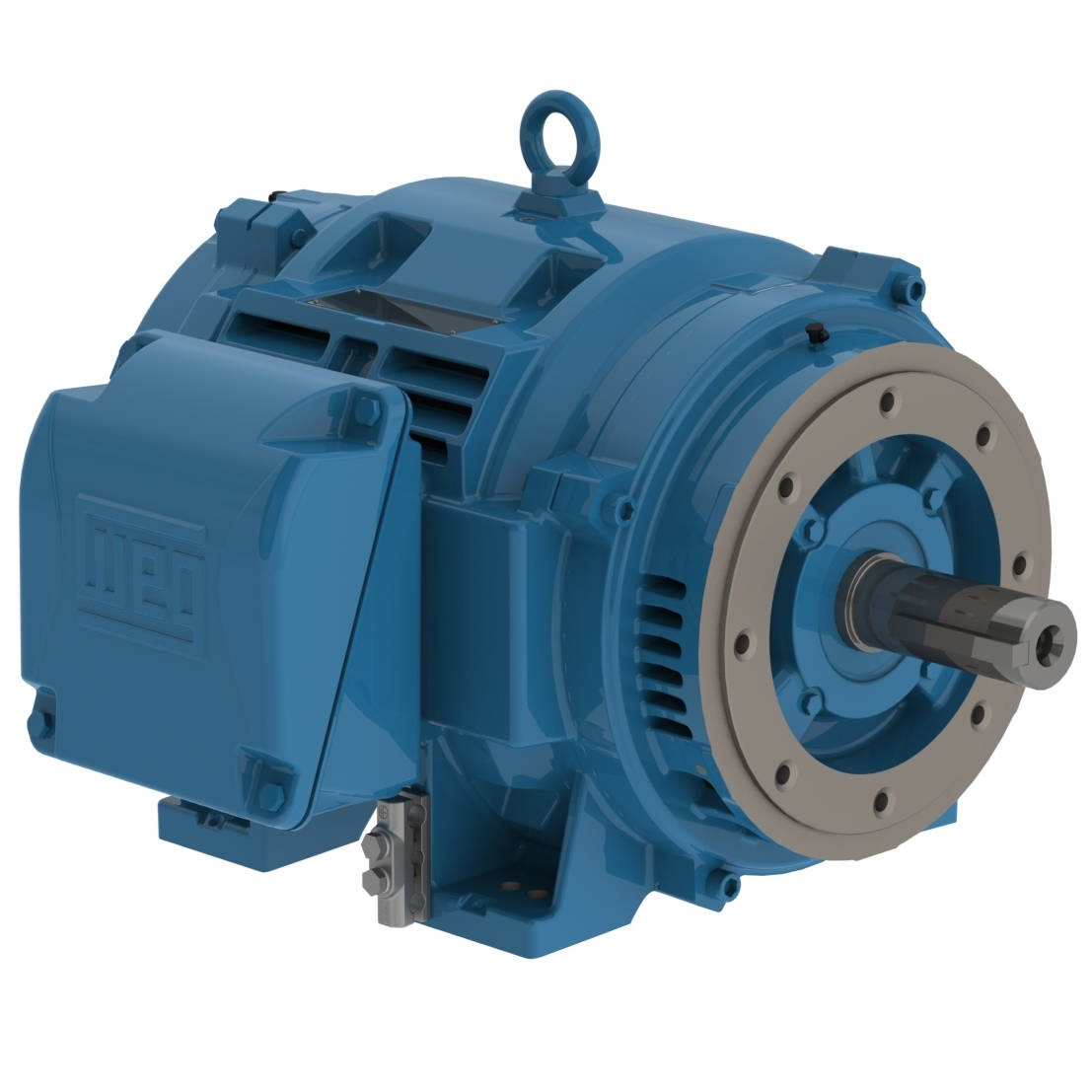

07536OT3E364TSC-W40G WEG 75HP, General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 07536OT3E364TSC-W40G

Selected accessories will also be added to cart

$4,924.50 / Each

Quantity:

IC01 - ODP, IP23, 364TSC/365TSC, 230/460/380VAC 50/60Hz 3 Phase, 14272919, NEMA Premium Efficiency, C-Face, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	364/5TSC
Output	75 HP (55 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3555 rpm
Slip	1.25 %
Rated voltage	230/460 V
Rated current	170/84.8 A
L. R. Amperes	1119/560 A
LRC	6.6x(Code G)
No load current	43.0/21.5 A
Rated torque	111 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	6.40 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	736 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	93.0	93.6

Power factor

50%	75%	100%
0.77	0.84	0.87

Frame	364/5TSC
Output	60 HP (45 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	380 V
Rated current	82.7 A
L. R. Amperes	579 A
LRC	7.0x(Code H)
No load current	20.7 A
Rated torque	107 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	6.40 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	736 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.9	94.0

Power factor

50%	75%	100%
0.78	0.85	0.88

Frame	364/5TSC
Output	60 HP (45 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2963 rpm
Slip	1.23 %
Rated voltage	400 V
Rated current	79.4 A
L. R. Amperes	588 A
LRC	7.4x(Code H)
No load current	22.7 A
Rated torque	106 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	6.40 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	736 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.4	92.8	94.0

Power factor

50%	75%	100%
0.73	0.83	0.87

Frame	364/5TSC
Output	60 HP (45 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	415 V
Rated current	78.4 A
L. R. Amperes	588 A
LRC	7.5x(Code H)
No load current	25.0 A
Rated torque	106 ft.lb
Locked rotor torque	220 %
Breakdown torque	280 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	6.40 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	736 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	92.7	94.0

Power factor

50%	75%	100%
0.69	0.80	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
Fan material	Without fan
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	Without Bearing Seal
DE bearing Seal	Without Bearing Seal
Cable Press Material	Sem
