/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Refrigeration/07536OT3E364TS-RFW40 WEG 75HP Refrigeration Electric Motor, 3600RPM

Product ID: 07536OT3E364TS-RFW40

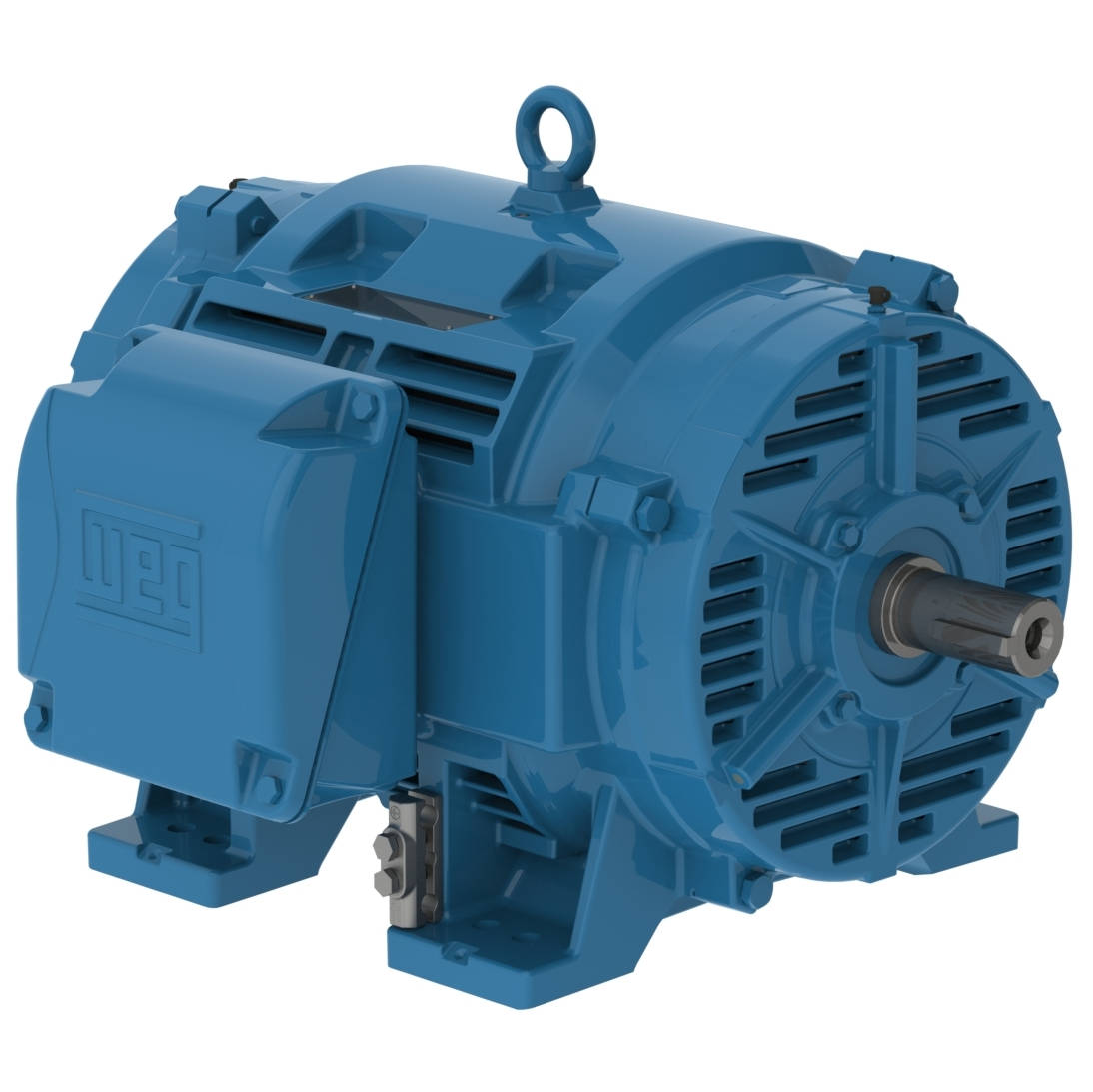

07536OT3E364TS-RFW40 WEG 75HP Refrigeration Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 07536OT3E364TS-RFW40

Selected accessories will also be added to cart

$4,784.25 / Each

Quantity:

IC01 - ODP, IP23, 364TS/365TS Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 16082867, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	364/5TS
Output	75 HP (55 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3555 rpm
Slip	1.25 %
Rated voltage	208-230/460 V
Rated current	188-170/84.8 A
L. R. Amperes	1241-1122/560 A
LRC	6.6x(Code G)
No load current	37.1-43.0/21.5 A
Rated torque	111 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	6.40 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	736 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	93.0	93.6

Power factor

50%	75%	100%
0.77	0.84	0.87

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
