/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Refrigeration/07536OT3E364TS-RFVFD WEG 75HP Refrigeration Electric Motor, 3600RPM

Product ID: 07536OT3E364TS-RFVFD

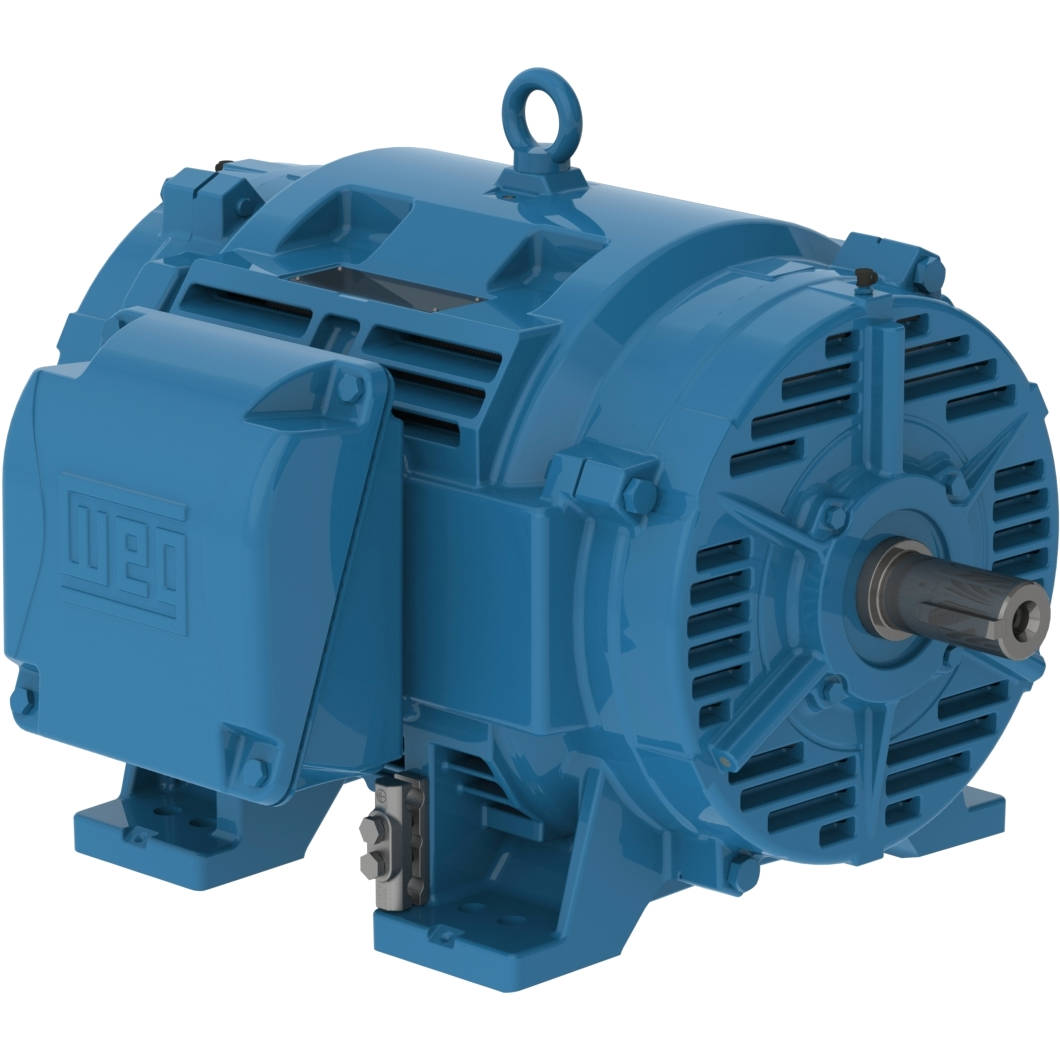

07536OT3E364TS-RFVFD WEG 75HP Refrigeration Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 07536OT3E364TS-RFVFD

Selected accessories will also be added to cart

$6,381.75 / Each

Quantity:

IC01 - ODP, IP23, 364TS/365TS Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 16063396, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, Insulated Bearing Housing, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	364/5TS
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	106 A
L. R. Amperes	700 A
LRC	6.6x(Code G)
No load current	32.0 A
Rated torque	133 ft.lb
Locked rotor torque	260 %
Breakdown torque	290 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	7.20 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	VFD
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	774 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.8	93.0	93.0

Power factor

50%	75%	100%
0.75	0.84	0.87

Frame	364/5TS
Output	75 HP (55 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3560 rpm
Slip	1.11 %
Rated voltage	208 V
Rated current	185 A
L. R. Amperes	1499 A
LRC	8.1x(Code J)
No load current	53.0 A
Rated torque	111 ft.lb
Locked rotor torque	280 %
Breakdown torque	300 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	7.20 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	VFD
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	774 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.5	93.2	93.6

Power factor

50%	75%	100%
0.79	0.85	0.88

Frame	364/5TS
Output	75 HP (55 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3570 rpm
Slip	0.83 %
Rated voltage	230/460 V
Rated current	176/87.8 A
L. R. Amperes	1426/711 A
LRC	8.1x(Code J)
No load current	66.0/33.0 A
Rated torque	110 ft.lb
Locked rotor torque	330 %
Breakdown torque	370 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	7.20 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	VFD
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	774 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.5	93.2	93.6

Power factor

50%	75%	100%
0.70	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
