/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JP Close-Coupled Pump/07536ET3E365JP-W22 WEG 75HP JP Close Coupled Pump Electric Motor, 3600RPM

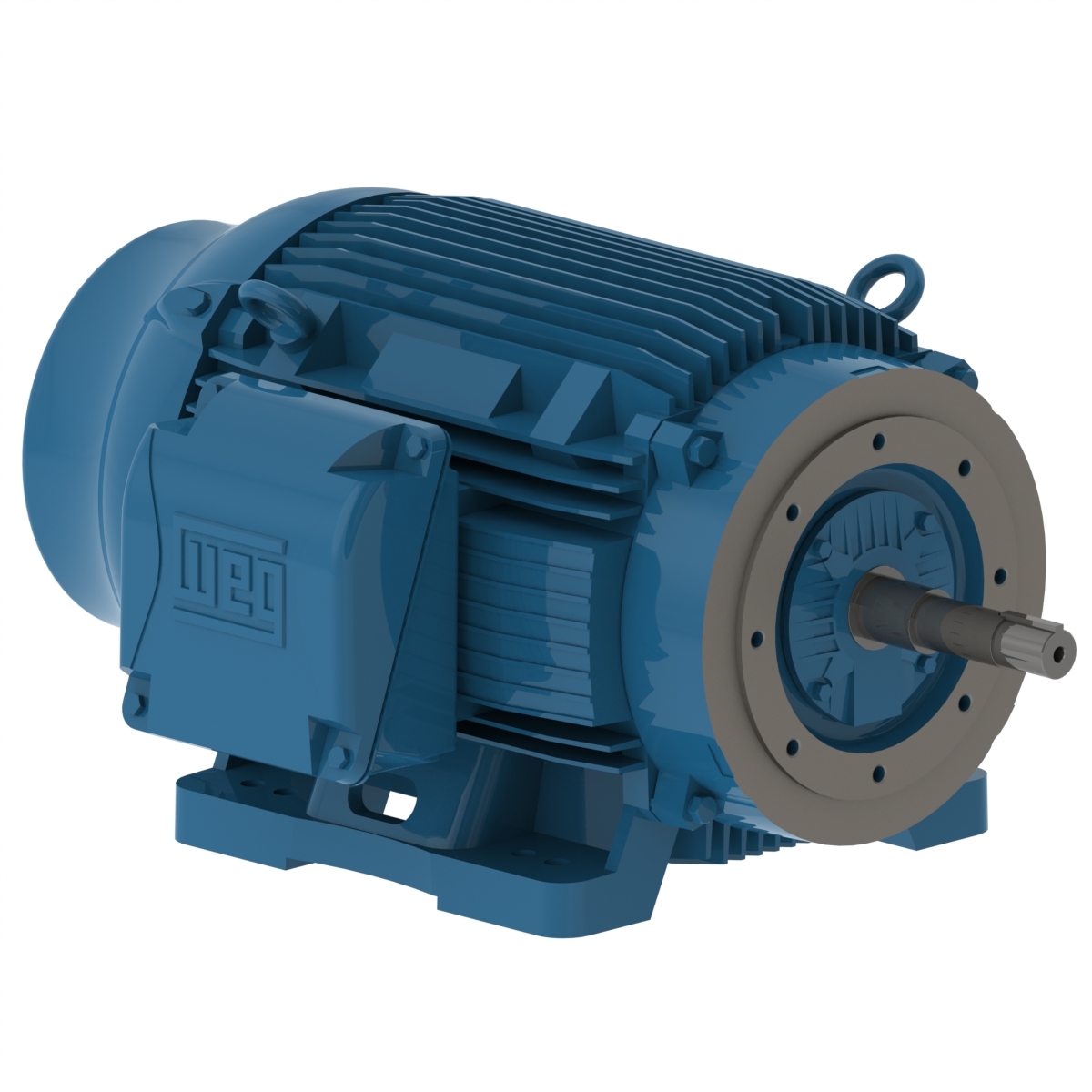

07536ET3E365JP-W22 WEG 75HP JP Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 07536ET3E365JP-W22

07536ET3E365JP-W22 WEG 75HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 07536ET3E365JP-W22

Selected accessories will also be added to cart
$8,490.75 / Each
Quantity:
IC411 - TEFC, IP55, 364JP/365JP Frame, 208-230/460V 3-Phase 60Hz, Foot Mount, 11587728

Electric Motors

Frame 364/5JP
Output 75 HP (55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 208-230/460 V
Rated current 181-164/81.9 A
L. R. Amperes 1214-1097/549 A
LRC 6.7x(Code G)
No load current 37.9-44.0/22.0 A
Rated torque 109 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 886 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.6  93.6

Power factor

50% 75% 100%
0.83  0.88  0.90
Frame 364/5JP
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 66.7 A
L. R. Amperes 527 A
LRC 7.9x(Code H)
No load current 22.0 A
Rated torque 87.5 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 886 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.2  92.5  93.7

Power factor

50% 75% 100%
0.75  0.85  0.90
Frame 364/5JP
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 64.8 A
L. R. Amperes 557 A
LRC 8.6x(Code J)
No load current 23.3 A
Rated torque 87.4 ft.lb
Locked rotor torque 260 %
Breakdown torque 350 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 886 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.5  93.0  93.7

Power factor

50% 75% 100%
0.72  0.83  0.88
Frame 364/5JP
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 62.4 A
L. R. Amperes 574 A
LRC 9.2x(Code K)
No load current 24.6 A
Rated torque 87.2 ft.lb
Locked rotor torque 290 %
Breakdown torque 380 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 886 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.8  93.1  93.7

Power factor

50% 75% 100%
0.70  0.82  0.88
Frame 364/5JP
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 99.4 A
L. R. Amperes 527 A
LRC 5.3x(Code E)
No load current 22.0 A
Rated torque 132 ft.lb
Locked rotor torque 160 %
Breakdown torque 210 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 886 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  92.4

Power factor

50% 75% 100%
0.86  0.90  0.91
Frame 364/5JP
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 400 V
Rated current 94.8 A
L. R. Amperes 559 A
LRC 5.9x(Code F)
No load current 23.3 A
Rated torque 132 ft.lb
Locked rotor torque 175 %
Breakdown torque 229 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 886 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  93.0

Power factor

50% 75% 100%
0.84  0.89  0.90
Frame 364/5JP
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 91.4 A
L. R. Amperes 576 A
LRC 6.3x(Code F)
No load current 24.6 A
Rated torque 132 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 886 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.6  93.0

Power factor

50% 75% 100%
0.83  0.88  0.90

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Gasket

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6314 C3  6314 C3
Sealing Lip Seal  Lip Seal
Lubrication interval 4000 h  4000 h
Lubricant amount 27 g  27 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
699 lb  1585 lb
