/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount/07518ST3QIERB365T-W22 WEG 75HP Severe Duty Electric Motor, 1800RPM

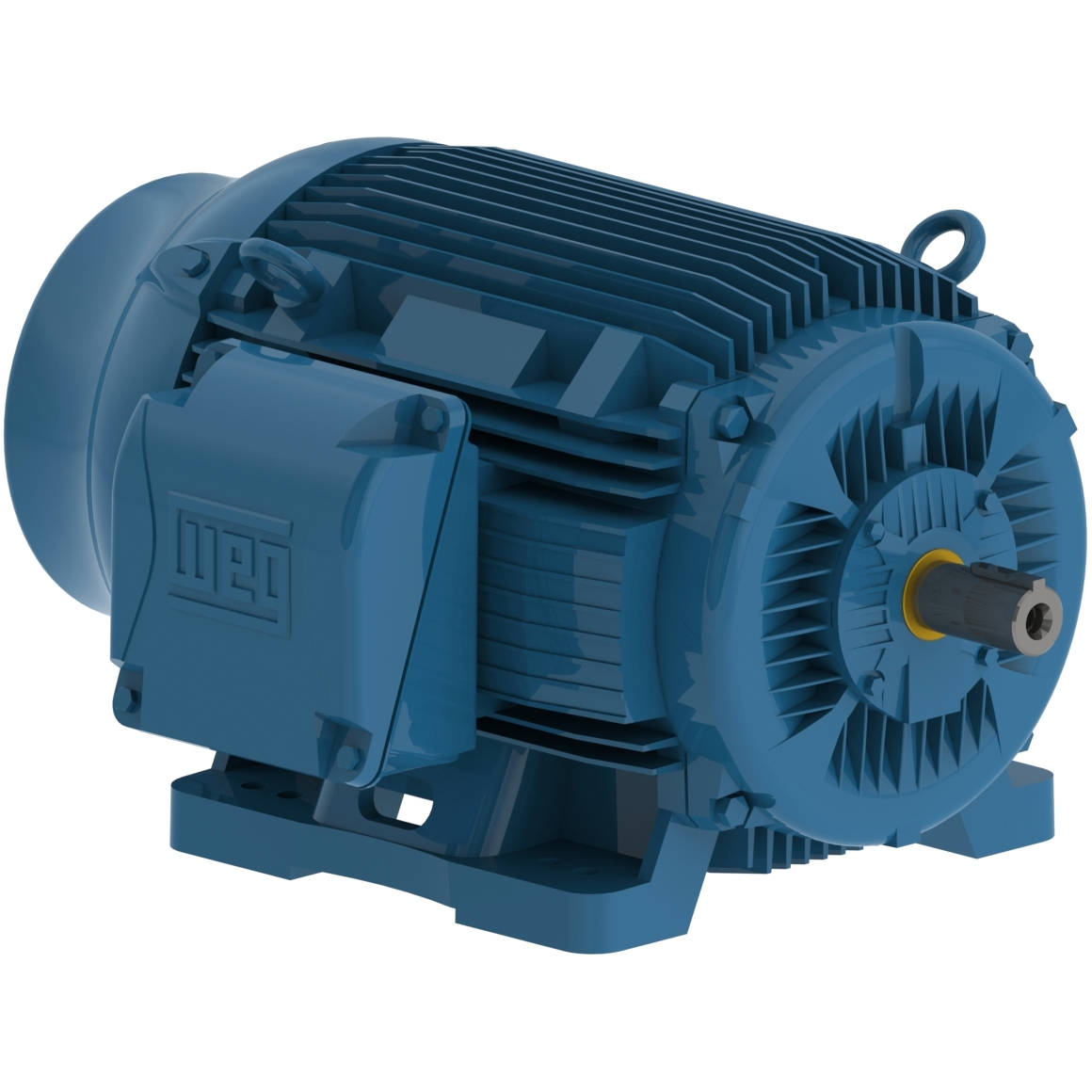

07518ST3QIERB365T-W22 WEG 75HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 07518ST3QIERB365T-W2

07518ST3QIERB365T-W22 WEG 75HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 07518ST3QIERB365T-W2

Selected accessories will also be added to cart
$7,514.25 / Each
Quantity:
IC411 - TEFC, IP55, 364T/365T Frame, 460VAC 60Hz 3 Phase, 12764468, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 2-3/8" Keyed Shaft

Electric Motors

Frame 364/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 87.2 A
L. R. Amperes 558 A
LRC 6.4x(Code G)
No load current 33.0 A
Rated torque 221 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 955 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.0  95.4

Power factor

50% 75% 100%
0.68  0.78  0.83
Frame 364/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 106 A
L. R. Amperes 541 A
LRC 5.1x(Code E)
No load current 33.0 A
Rated torque 268 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 955 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  94.1  93.6

Power factor

50% 75% 100%
0.75  0.82  0.84
Frame 364/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 102 A
L. R. Amperes 571 A
LRC 5.6x(Code F)
No load current 35.0 A
Rated torque 267 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 955 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  94.5  94.1

Power factor

50% 75% 100%
0.70  0.80  0.83
Frame 364/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 98.7 A
L. R. Amperes 602 A
LRC 6.1x(Code G)
No load current 38.0 A
Rated torque 266 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 955 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  94.5

Power factor

50% 75% 100%
0.67  0.78  0.82

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Type T, Threaded
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3
