/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/JP Close-Coupled Pump/07518OT3V365JPV-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 1800RPM

Product ID: 07518OT3V365JPV-W40

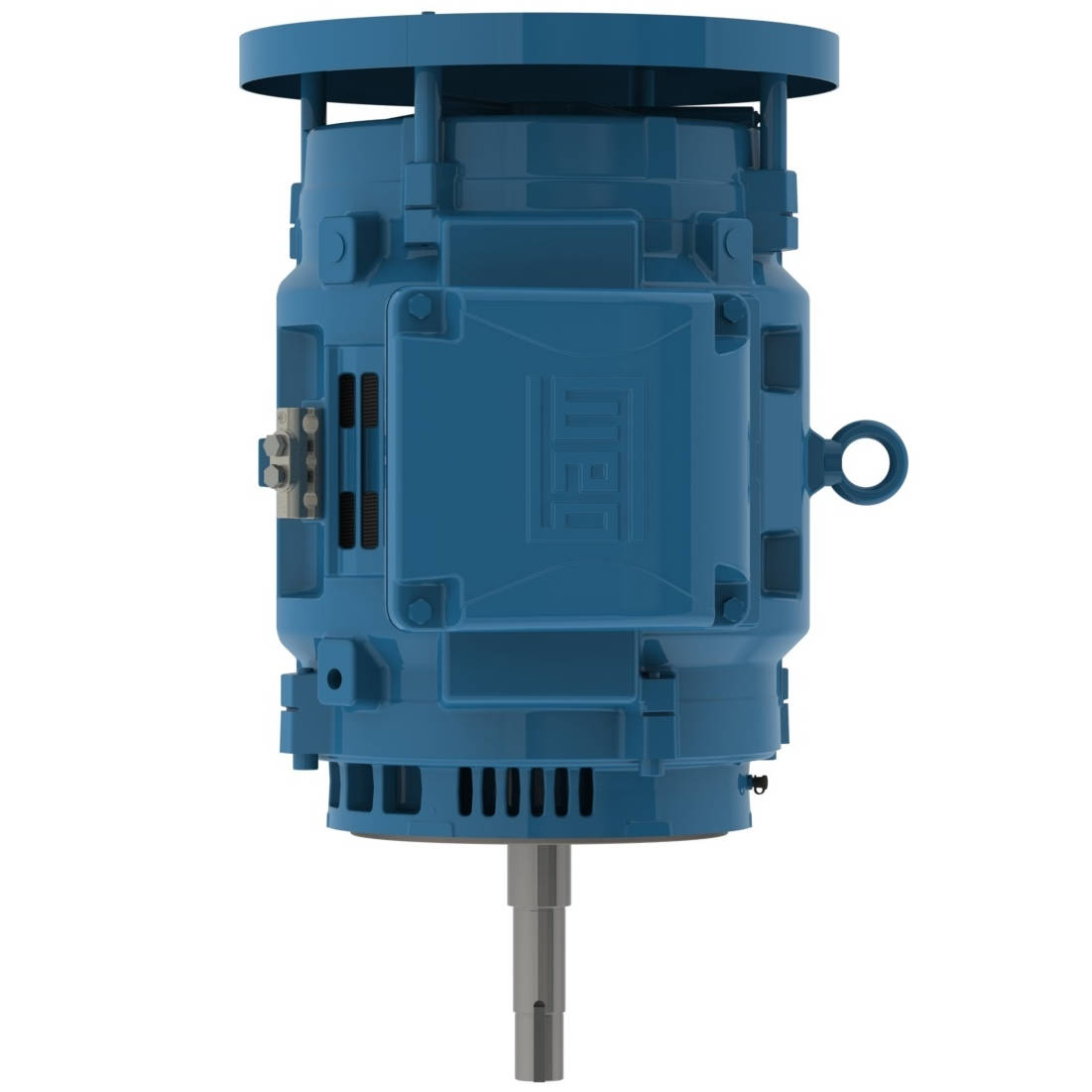

07518OT3V365JPV-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 07518OT3V365JPV-W40

Selected accessories will also be added to cart

$5,498.25 / Each

Quantity:

IC01 - ODP, IP23, 364JP/365JP Frame, 200/400VAC 60Hz 3 Phase, 14836812, NEMA Premium Efficiency, Footless, Vertical Mount, Cast Iron Frame

Details
Purchase Components

Frame	364/5JP
Output	75 HP (55 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	200/400 V
Rated current	197/98.3 A
L. R. Amperes	1337/669 A
LRC	6.8x(Code G)
No load current	70.2/35.1 A
Rated torque	221 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	16.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	780 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
