/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount, AEGIS SGR/07518OT3E365T-W40G WEG 75HP, General Purpose Electric Motor, 1800RPM

Product ID: 07518OT3E365T-W40G

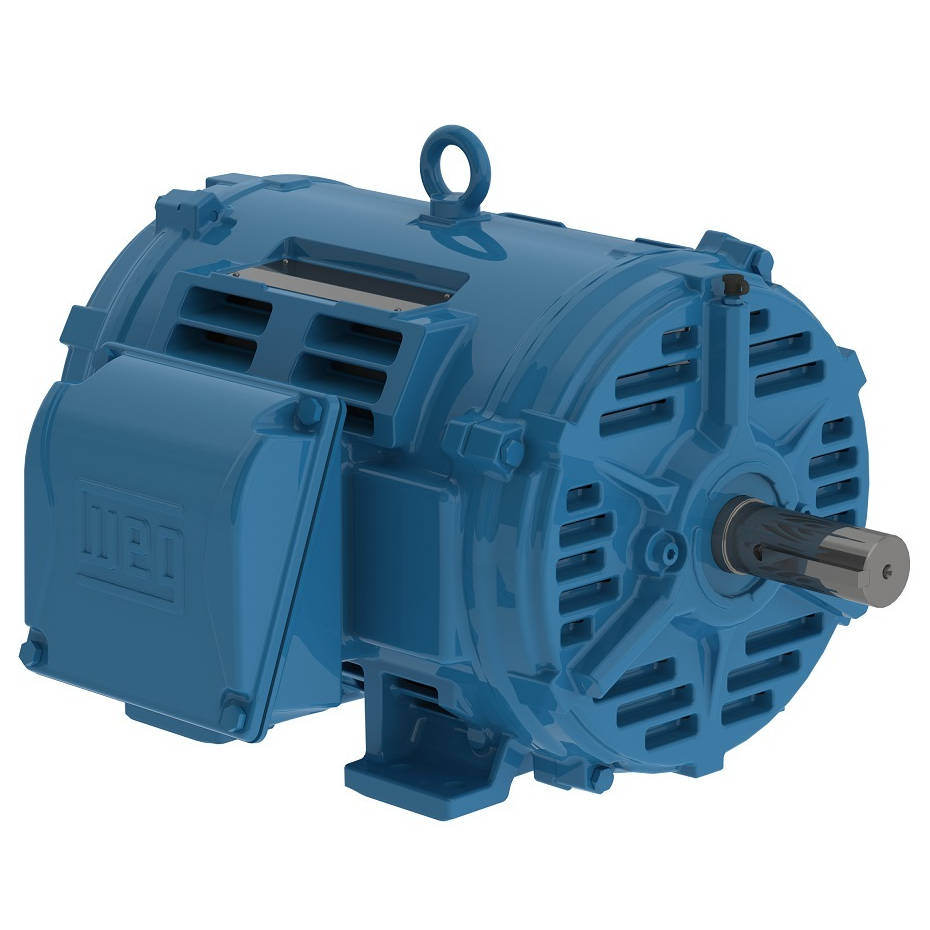

07518OT3E365T-W40G WEG 75HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 07518OT3E365T-W40G

Selected accessories will also be added to cart

$4,873.50 / Each

Quantity:

IC01 - ODP, IP23, 364T/365T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14285129, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, 2-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	364/5T
Output	75 HP (55 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	230/460 V
Rated current	171/85.5 A
L. R. Amperes	1163/581 A
LRC	6.8x(Code G)
No load current	61.0/30.5 A
Rated torque	221 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	16.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	771 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.0	95.0

Power factor

50%	75%	100%
0.73	0.82	0.85

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	84.4 A
L. R. Amperes	599 A
LRC	7.1x(Code H)
No load current	28.5 A
Rated torque	213 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	16.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	771 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.8	94.2	94.2

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1482 rpm
Slip	1.20 %
Rated voltage	400 V
Rated current	82.1 A
L. R. Amperes	591 A
LRC	7.2x(Code H)
No load current	33.7 A
Rated torque	213 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	16.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	771 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.8	94.2	94.2

Power factor

50%	75%	100%
0.69	0.80	0.84

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1484 rpm
Slip	1.07 %
Rated voltage	415 V
Rated current	80.1 A
L. R. Amperes	609 A
LRC	7.6x(Code J)
No load current	36.1 A
Rated torque	212 ft.lb
Locked rotor torque	250 %
Breakdown torque	280 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	16.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	771 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.8	94.2	94.2

Power factor

50%	75%	100%
0.66	0.77	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
