/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Fire Pump/07518OP3VFP365TS-W40 WEG 75HP Fire Pump Electric Motor, 1800RPM

Product ID: 07518OP3VFP365TS-W40

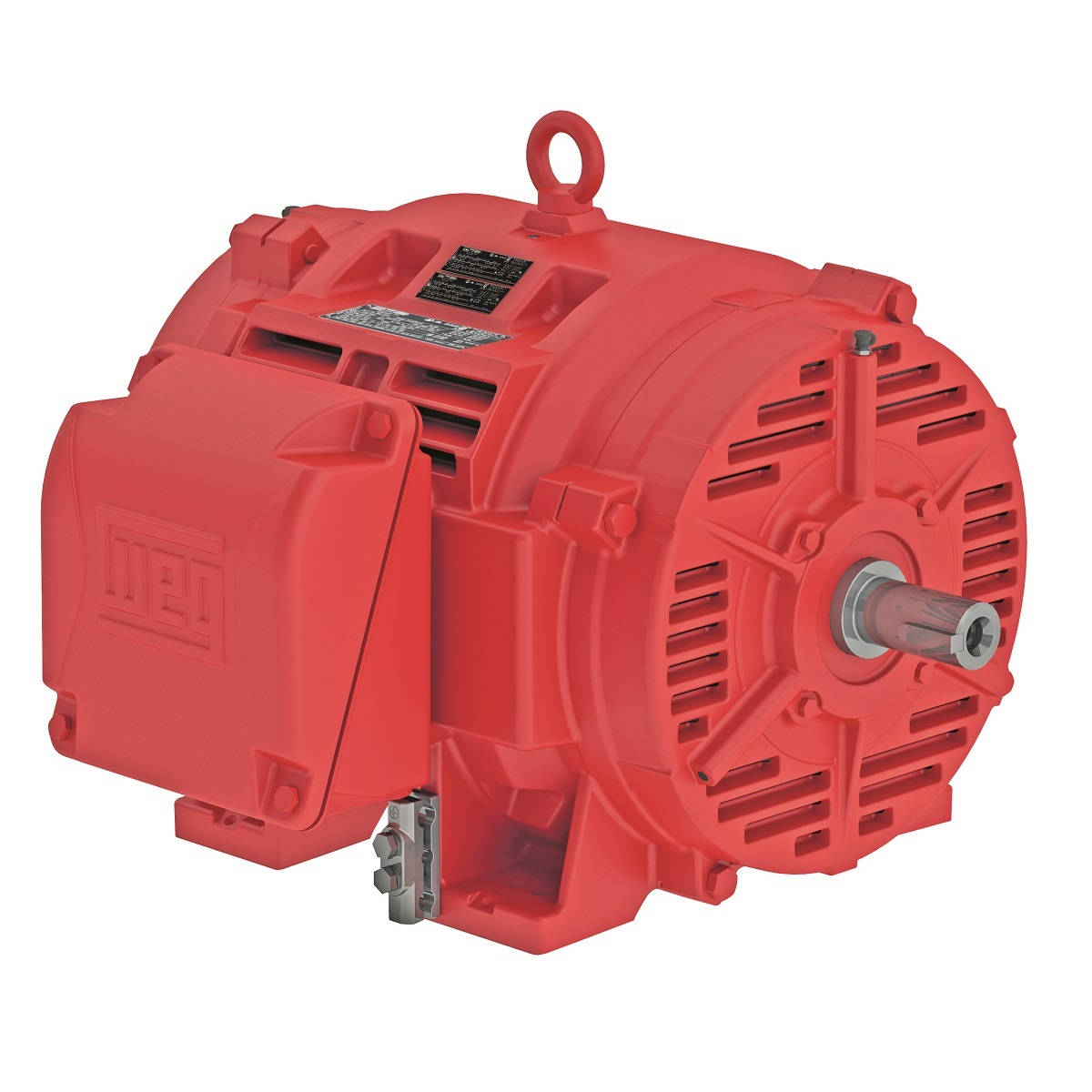

07518OP3VFP365TS-W40 WEG 75HP Fire Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 07518OP3VFP365TS-W40

Selected accessories will also be added to cart

$3,536.25 / Each

Quantity:

IC01 - ODP, IP23, 364TS/365TS Frame, 200/400VAC 60Hz 3 Phase, 14281217, High Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	364/5TS
Output	75 HP (55 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	200/400 V
Rated current	196/98.1 A
L. R. Amperes	1236/618 A
LRC	6.3x(Code G)
No load current	57.5/28.8 A
Rated torque	222 ft.lb
Locked rotor torque	180 %
Breakdown torque	229 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	15.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	765 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.75	0.83	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
