/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/06018OT3E364TS-W40 WEG 60HP, General Purpose Electric Motor, 1800RPM

Product ID: 06018OT3E364TS-W40

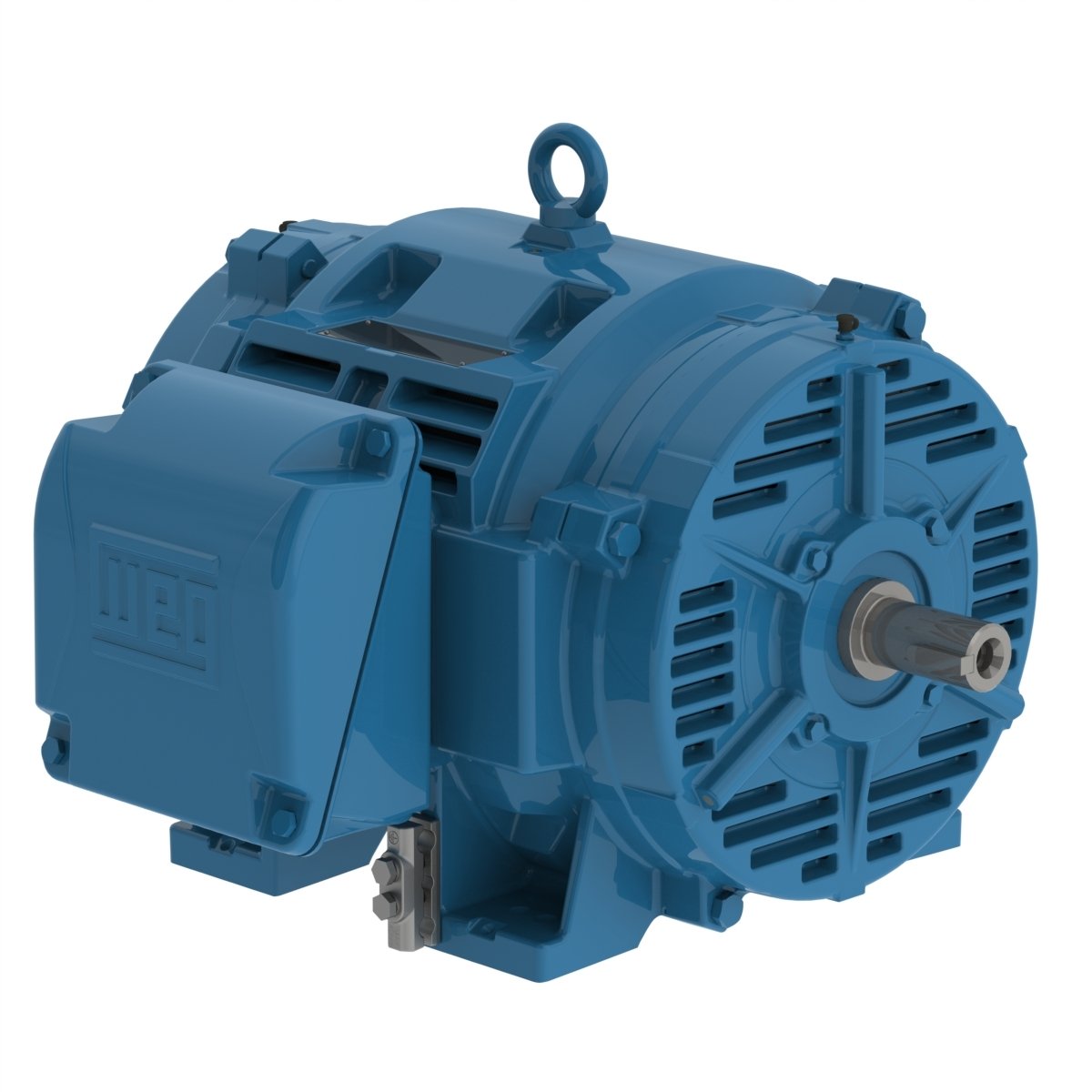

06018OT3E364TS-W40 WEG 60HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 06018OT3E364TS-W40

Selected accessories will also be added to cart

$3,332.25 / Each

Quantity:

IC01 - ODP, IP23, 364TS/365TS Frame, 208-230/460VAC 3-Phase 50/60Hz, 14270885, Cast Iron, Foot Mount, NEMA Premium Efficiency, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	364/5TS
Output	60 HP (45 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	208-230/460 V
Rated current	155-140/69.9 A
L. R. Amperes	1005-909/454 A
LRC	6.5x(Code G)
No load current	42.6-49.4/24.7 A
Rated torque	175 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	15.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	741 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.0	95.0

Power factor

50%	75%	100%
0.73	0.82	0.85

Frame	364/5TS
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	69.6 A
L. R. Amperes	473 A
LRC	6.8x(Code G)
No load current	24.4 A
Rated torque	175 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	15.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	741 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.5	93.9	93.9

Power factor

50%	75%	100%
0.74	0.83	0.86

Frame	364/5TS
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	66.9 A
L. R. Amperes	482 A
LRC	7.2x(Code H)
No load current	26.2 A
Rated torque	175 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	15.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	741 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.5	93.9	93.9

Power factor

50%	75%	100%
0.71	0.81	0.85

Frame	364/5TS
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	65.3 A
L. R. Amperes	457 A
LRC	7.0x(Code H)
No load current	27.7 A
Rated torque	174 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	15.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	741 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.5	93.9	93.9

Power factor

50%	75%	100%
0.68	0.79	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
