/Products/Electric Motors/3 Phase/WEG/Fire Pump/Foot Mount, Cast Iron/06018OP3HFP364TS-W40 WEG 60HP Fire Pump Electric Motor, 1800RPM

Product ID: 06018OP3HFP364TS-W40

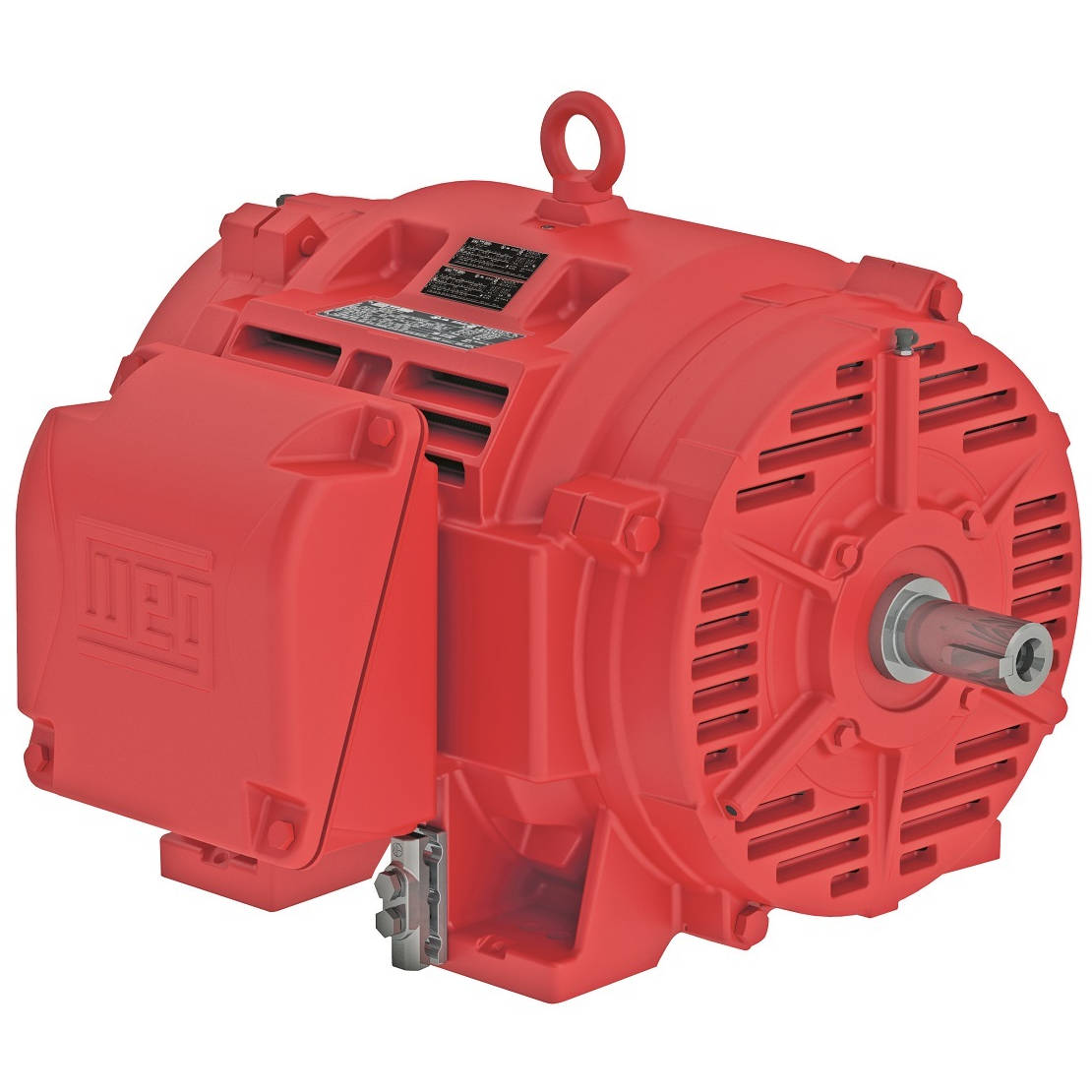

06018OP3HFP364TS-W40 WEG 60HP Fire Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 06018OP3HFP364TS-W40

Selected accessories will also be added to cart

$2,777.25 / Each

Quantity:

IC01 - ODP, IP23, 364TS/365TS Frame, 575VAC 60Hz 3 Phase, 14281212, High Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	364/5TS
Output	60 HP (45 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1777 rpm
Slip	1.28 %
Rated voltage	575 V
Rated current	56.8 A
L. R. Amperes	346 A
LRC	6.1x(Code G)
No load current	18.4 A
Rated torque	177 ft.lb
Locked rotor torque	180 %
Breakdown torque	229 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	12.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	658 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.6	93.6

Power factor

50%	75%	100%
0.73	0.82	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
