/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/C-Face, Footless/06018ET3ER364TC-W22 WEG 60HP Severe Duty Electric Motor, 1800 RPM

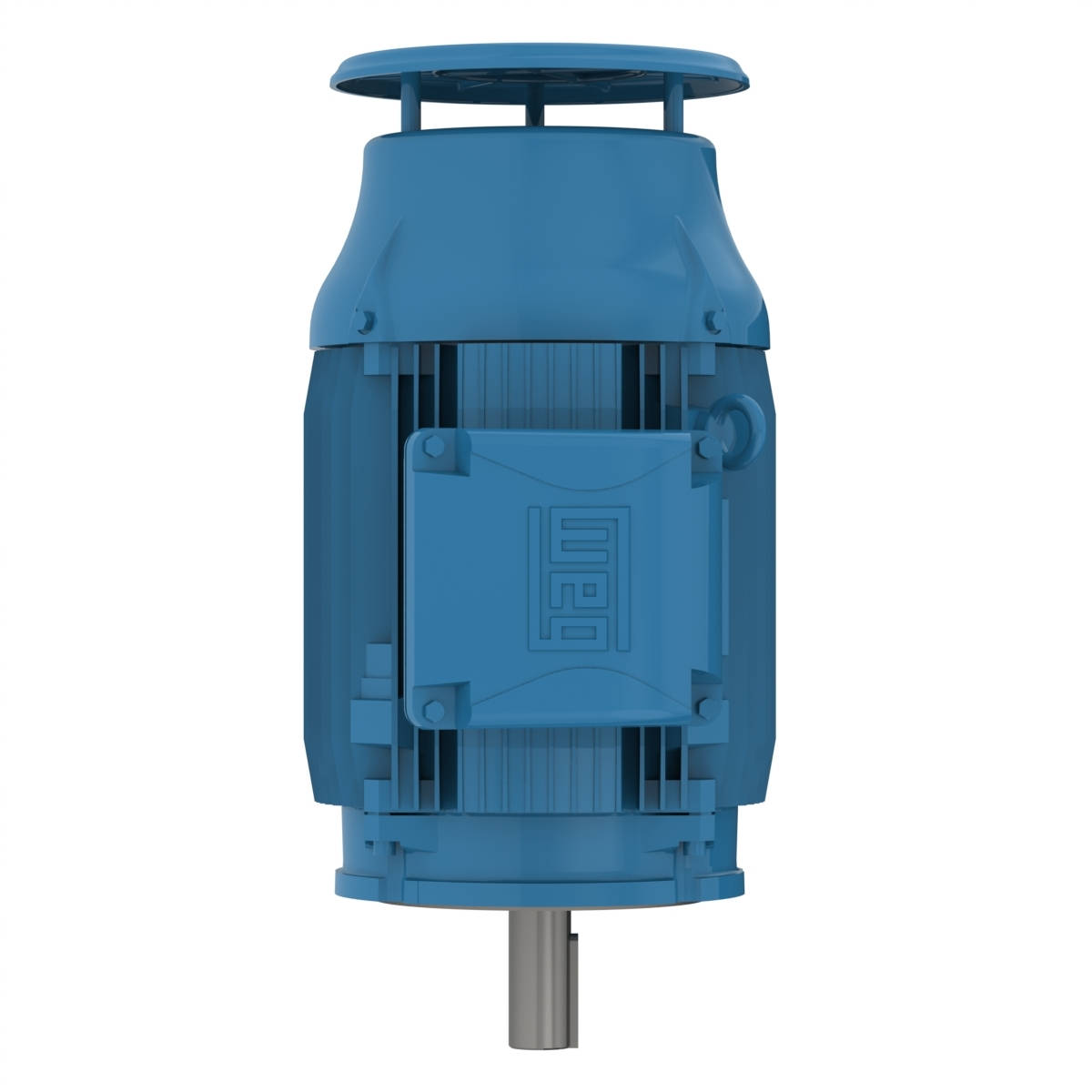

06018ET3ER364TC-W22 WEG 60HP Severe Duty Electric Motor, 1800 RPM
Enlarge Photo

Product ID: 06018ET3ER364TC-W22

06018ET3ER364TC-W22 WEG 60HP Severe Duty Electric Motor, 1800 RPM

MFG: WEG Electric Corporation
MFG Part Number: 06018ET3ER364TC-W22

Selected accessories will also be added to cart
$6,039.75 / Each
Quantity:
IC411 - TEFC, IP55, 364TC/365TC Frame, 230/460/380VAC 50/60Hz 3 Phase, 14335223, NEMA Premium Efficiency, Cast Iron Frame, Footless, C-Face, 2-3/8" Keyed Shaft

Electric Motors

Frame 364/5TC
Output 60 HP (45 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 143/71.6 A
L. R. Amperes 888/444 A
LRC 6.2x(Code G)
No load current 52.0/26.0 A
Rated torque 177 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 897 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  95.0

Power factor

50% 75% 100%
0.71  0.80  0.83
Frame 364/5TC
Output 50 HP (37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 71.0 A
L. R. Amperes 447 A
LRC 6.3x(Code G)
No load current 25.0 A
Rated torque 177 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 897 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.7  93.9  94.2

Power factor

50% 75% 100%
0.71  0.80  0.84
Frame 364/5TC
Output 50 HP (37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 69.1 A
L. R. Amperes 477 A
LRC 6.9x(Code H)
No load current 27.5 A
Rated torque 177 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 897 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.3  93.9  94.2

Power factor

50% 75% 100%
0.68  0.78  0.82
Frame 364/5TC
Output 50 HP (37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 67.4 A
L. R. Amperes 499 A
LRC 7.4x(Code J)
No load current 30.0 A
Rated torque 177 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 897 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.4  94.2  94.3

Power factor

50% 75% 100%
0.65  0.76  0.81
Frame 364/5TC
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 86.5 A
L. R. Amperes 450 A
LRC 5.2x(Code E)
No load current 23.8 A
Rated torque 214 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 897 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  93.6  93.0

Power factor

50% 75% 100%
0.76  0.82  0.85
Frame 364/5TC
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 82.6 A
L. R. Amperes 479 A
LRC 5.8x(Code F)
No load current 25.3 A
Rated torque 214 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 897 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  93.6  93.6

Power factor

50% 75% 100%
0.73  0.81  0.84
Frame 364/5TC
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 80.2 A
L. R. Amperes 497 A
LRC 6.2x(Code G)
No load current 30.0 A
Rated torque 213 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 897 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.1  94.1

Power factor

50% 75% 100%
0.70  0.80  0.83

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover With
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
