/Products/Electric Motors/3 Phase/WEG/Super Premium Efficiency/06018EG3E364T-W22 WEG 60HP Electric Motor, 1800RPM

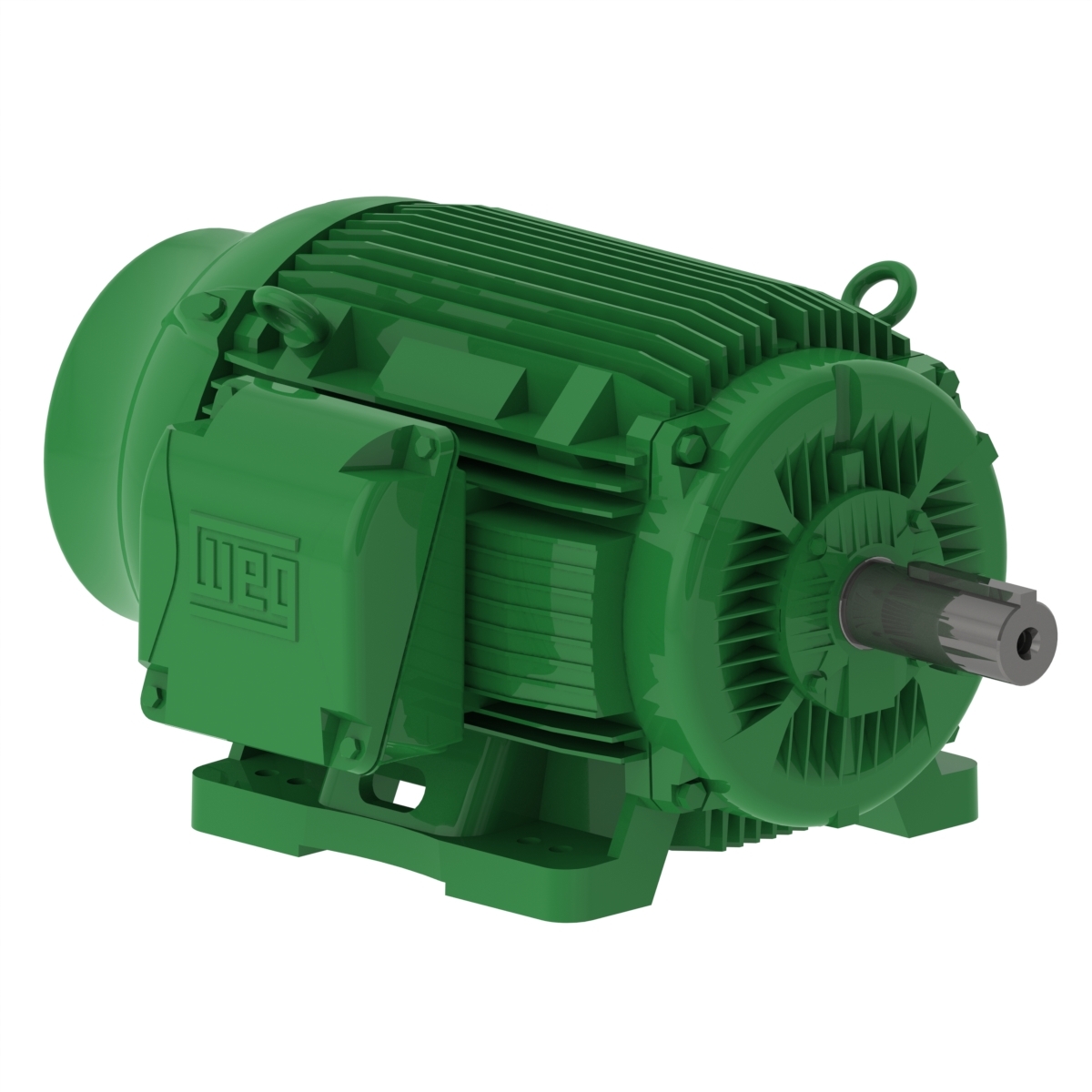

06018EG3E364T-W22 WEG 60HP Electric Motor, 1800RPM
Enlarge Photo

Product ID: 06018EG3E364T-W22

06018EG3E364T-W22 WEG 60HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 06018EG3E364T-W22

Selected accessories will also be added to cart
$6,096.00 / Each
Quantity:
IC411 - TEFC, IP55, 364T/365T Frame, 208-230/460VAC 60Hz 3 Phase, 11792472, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 364/5T
Output 60 HP (45 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 140/70.2 A
L. R. Amperes 1193/597 A
LRC 8.5x(Code J)
No load current 60.0/30.0 A
Rated torque 177 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 16.9 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 929 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.4  95.8

Power factor

50% 75% 100%
0.69  0.80  0.84
Frame 364/5T
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 83.2 A
L. R. Amperes 499 A
LRC 6.0x(Code F)
No load current 29.0 A
Rated torque 214 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 16.9 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 929 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  94.5

Power factor

50% 75% 100%
0.75  0.83  0.87
Frame 364/5T
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 80.4 A
L. R. Amperes 523 A
LRC 6.5x(Code G)
No load current 31.0 A
Rated torque 213 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 16.9 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 929 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.1  95.0  95.0

Power factor

50% 75% 100%
0.71  0.81  0.85
Frame 364/5T
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 78.5 A
L. R. Amperes 542 A
LRC 6.9x(Code H)
No load current 32.0 A
Rated torque 213 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 16.9 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 929 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.0  95.0

Power factor

50% 75% 100%
0.69  0.79  0.84

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 6002 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
