/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/P-Base/05036ET3E326HP-W22 WEG 50HP P-Base Pump Electric Motor, 3600RPM

Product ID: 05036ET3E326HP-W22

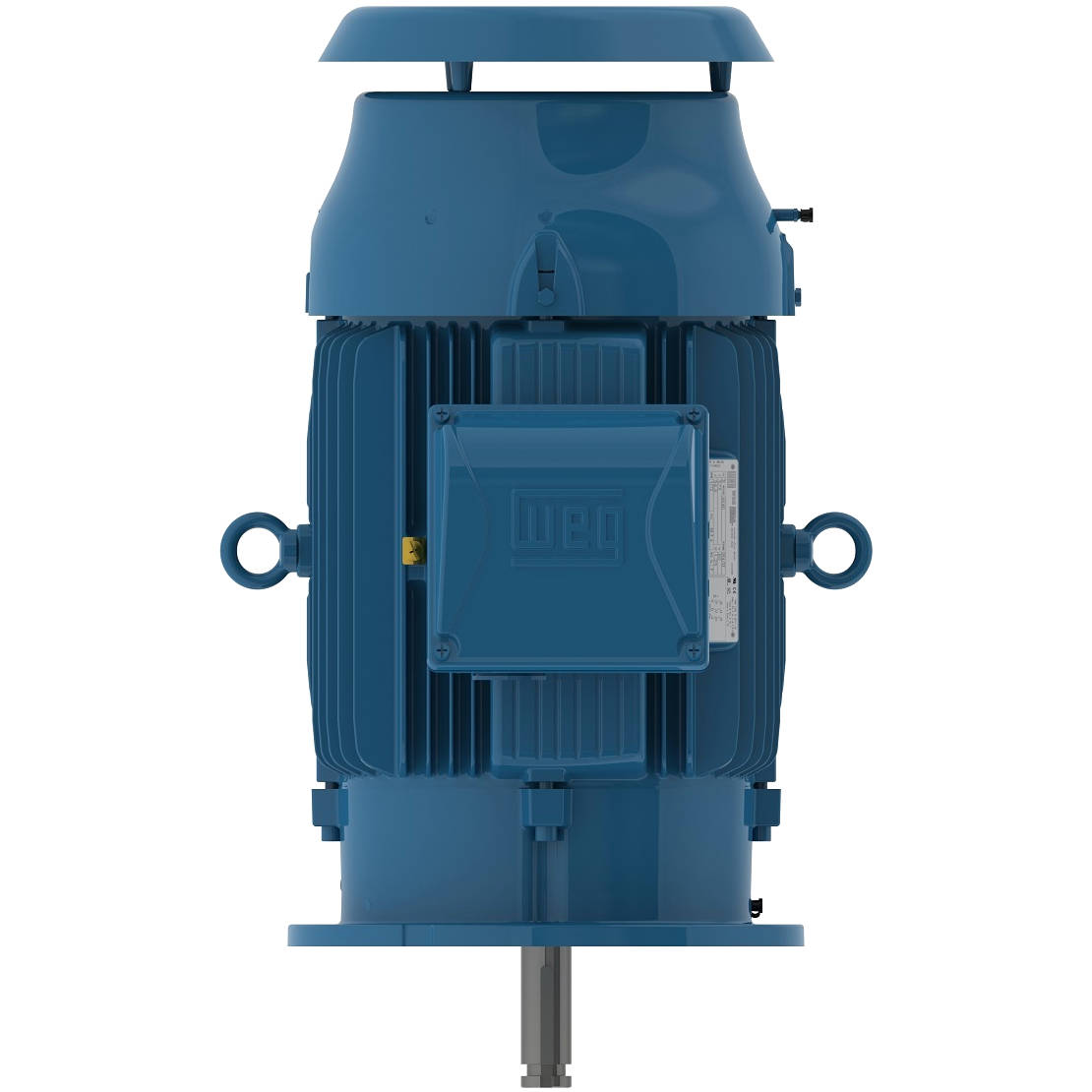

05036ET3E326HP-W22 WEG 50HP P-Base Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 05036ET3E326HP-W22

Selected accessories will also be added to cart

$5,010.75 / Each

Quantity:

IC411 - TEFC, IP55, 326HP Frame, 230/460/380VAC 50/60Hz 3 Phase, 13128961, NEMA Premium Efficiency, Footless, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	326HP
Output	50 HP (37 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3560 rpm
Slip	1.11 %
Rated voltage	230/460 V
Rated current	112/56.1 A
L. R. Amperes	707/353 A
LRC	6.3x(Code G)
No load current	28.0/14.0 A
Rated torque	73.8 ft.lb
Locked rotor torque	240 %
Breakdown torque	229 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	5.75 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	76.0 dB(A)
Approx. weight³	611 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	93.0

Power factor

50%	75%	100%
0.81	0.87	0.89

Frame	326HP
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	55.1 A
L. R. Amperes	364 A
LRC	6.6x(Code G)
No load current	13.0 A
Rated torque	71.0 ft.lb
Locked rotor torque	240 %
Breakdown torque	229 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	5.75 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	611 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.8	92.9	93.0

Power factor

50%	75%	100%
0.80	0.87	0.89

Frame	326HP
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	400 V
Rated current	52.7 A
L. R. Amperes	374 A
LRC	7.1x(Code H)
No load current	14.0 A
Rated torque	70.8 ft.lb
Locked rotor torque	260 %
Breakdown torque	250 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	5.75 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	611 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.2	92.8	93.3

Power factor

50%	75%	100%
0.77	0.86	0.88

Frame	326HP
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	415 V
Rated current	50.8 A
L. R. Amperes	366 A
LRC	7.2x(Code H)
No load current	15.0 A
Rated torque	70.8 ft.lb
Locked rotor torque	280 %
Breakdown torque	280 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	5.75 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	611 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.2	93.1	93.3

Power factor

50%	75%	100%
0.76	0.85	0.88

Frame	326HP
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	380 V
Rated current	69.4 A
L. R. Amperes	361 A
LRC	5.2x(Code E)
No load current	13.0 A
Rated torque	89.5 ft.lb
Locked rotor torque	190 %
Breakdown torque	200 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	5.75 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	611 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	92.4	91.0

Power factor

50%	75%	100%
0.85	0.88	0.89

Frame	326HP
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	65.4 A
L. R. Amperes	366 A
LRC	5.6x(Code F)
No load current	14.0 A
Rated torque	89.0 ft.lb
Locked rotor torque	210 %
Breakdown torque	200 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	5.75 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	611 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	92.4	91.7

Power factor

50%	75%	100%
0.83	0.88	0.89

Frame	326HP
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	62.6 A
L. R. Amperes	388 A
LRC	6.2x(Code F)
No load current	15.0 A
Rated torque	88.9 ft.lb
Locked rotor torque	229 %
Breakdown torque	220 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	5.75 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	611 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	92.4

Power factor

50%	75%	100%
0.82	0.87	0.89

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
