/Products/Electric Motors/3 Phase Explosion Proof/WEG/C-Face, Footless/04018XT3ER324TC WEG 40HP Explosion Proof Electric Motor, 1800RPM

Product ID: 04018XT3ER324TC

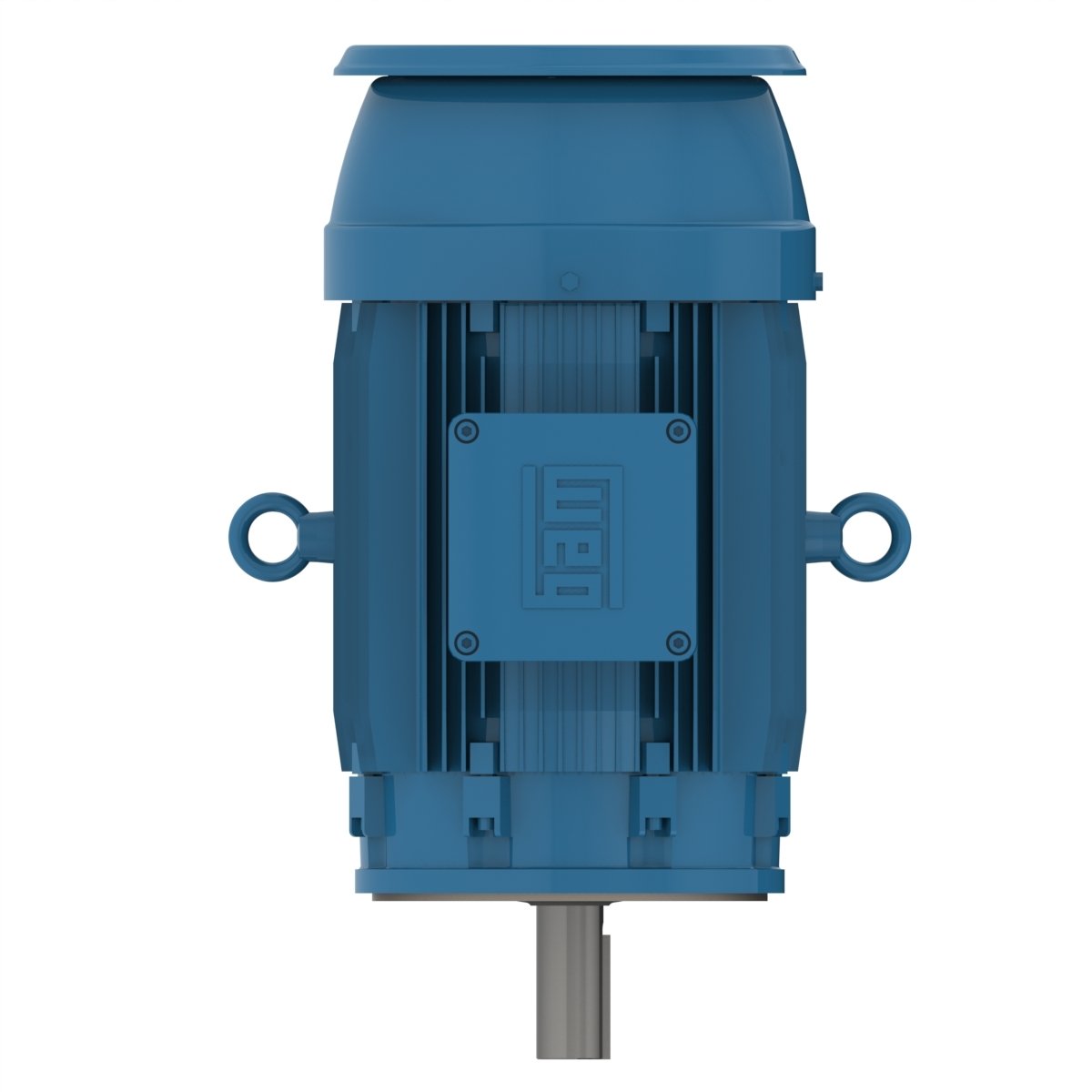

04018XT3ER324TC WEG 40HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 04018XT3ER324TC

Selected accessories will also be added to cart

$4,520.25 / Each

Quantity:

IC411 - TEFC, IP55, 324TC Frame, 208-230/460VAC 3-Phase 60Hz, 14407933, C-Face, Footless, Cast Iron Frame, NEMA Premium Efficiency, 2-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	324TC
Output	40 HP (30 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	208-230/460 V
Rated current	107-96.4/48.2 A
L. R. Amperes	821-742/371 A
LRC	7.7x(Code J)
No load current	39.7-46.0/23.0 A
Rated torque	116 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	8.17 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	71.0 dB(A)
Approx. weight³	653 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	94.1	94.1

Power factor

50%	75%	100%
0.66	0.77	0.83

Frame	324TC
Output	40 HP (30 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	58.7 A
L. R. Amperes	364 A
LRC	6.2x(Code G)
No load current	22.8 A
Rated torque	141 ft.lb
Locked rotor torque	200 %
Breakdown torque	210 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	8.17 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	653 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	92.4

Power factor

50%	75%	100%
0.72	0.81	0.84

Frame	324TC
Output	40 HP (30 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	56.1 A
L. R. Amperes	387 A
LRC	6.9x(Code H)
No load current	24.1 A
Rated torque	140 ft.lb
Locked rotor torque	229 %
Breakdown torque	240 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	8.17 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	653 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	93.0

Power factor

50%	75%	100%
0.68	0.79	0.83

Frame	324TC
Output	40 HP (30 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	54.1 A
L. R. Amperes	400 A
LRC	7.4x(Code J)
No load current	25.3 A
Rated torque	140 ft.lb
Locked rotor torque	250 %
Breakdown torque	260 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	8.17 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	653 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.6	93.0

Power factor

50%	75%	100%
0.66	0.77	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Sinterized, Exd
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
