/Products/Electric Motors/3 Phase/WEG/Air Handling/Pad Mount/04018ET3EPM324/6Y-W22 WEG 40HP Pad Mount Electric Motor, 1800RPM

Product ID: 04018ET3EPM324/6Y-W2

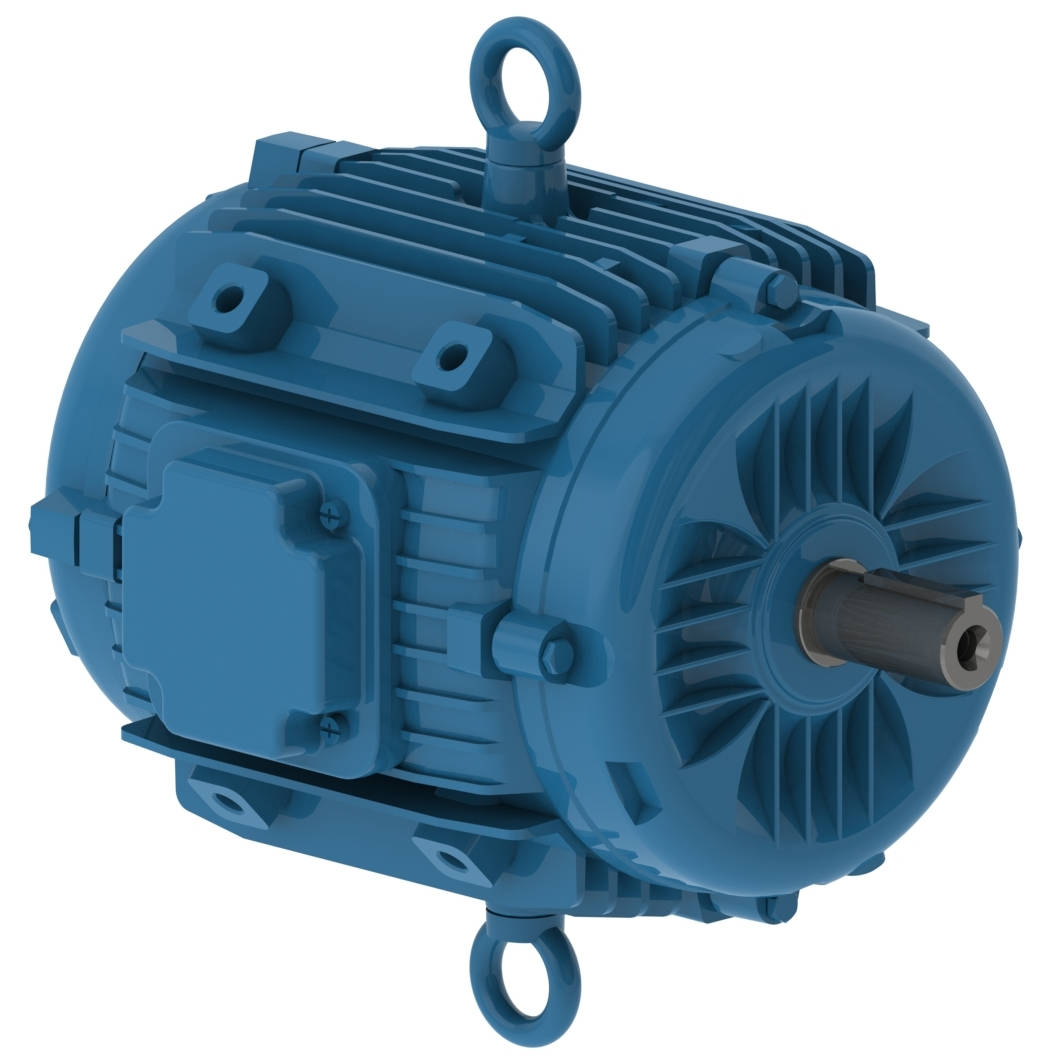

04018ET3EPM324/6Y-W22 WEG 40HP Pad Mount Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 04018ET3EPM324/6Y-W22

Selected accessories will also be added to cart

$3,478.50 / Each

Quantity:

IC410 - TEAO, IP55, 326YZ Frame, 208-230/460VAC 60Hz 3 Phase, 13658572, NEMA Premium Efficiency, Pad Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	326YZ
Output	40 HP (30 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	208-230/460 V
Rated current	104-94.2/47.1 A
L. R. Amperes	634-575/287 A
LRC	6.1x(Code G)
No load current	0.000-32.0/16.0 A
Rated torque	118 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	36s (cold) 20s (hot)

Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	553 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.72	0.80	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Winding thermal protection	Thermistor - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
