/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/JP Close-Coupled Pump/04012OT3E364JP-W40 WEG 40HP JP Close-Coupled Pump Electric Motor, 1200RPM

Product ID: 04012OT3E364JP-W40

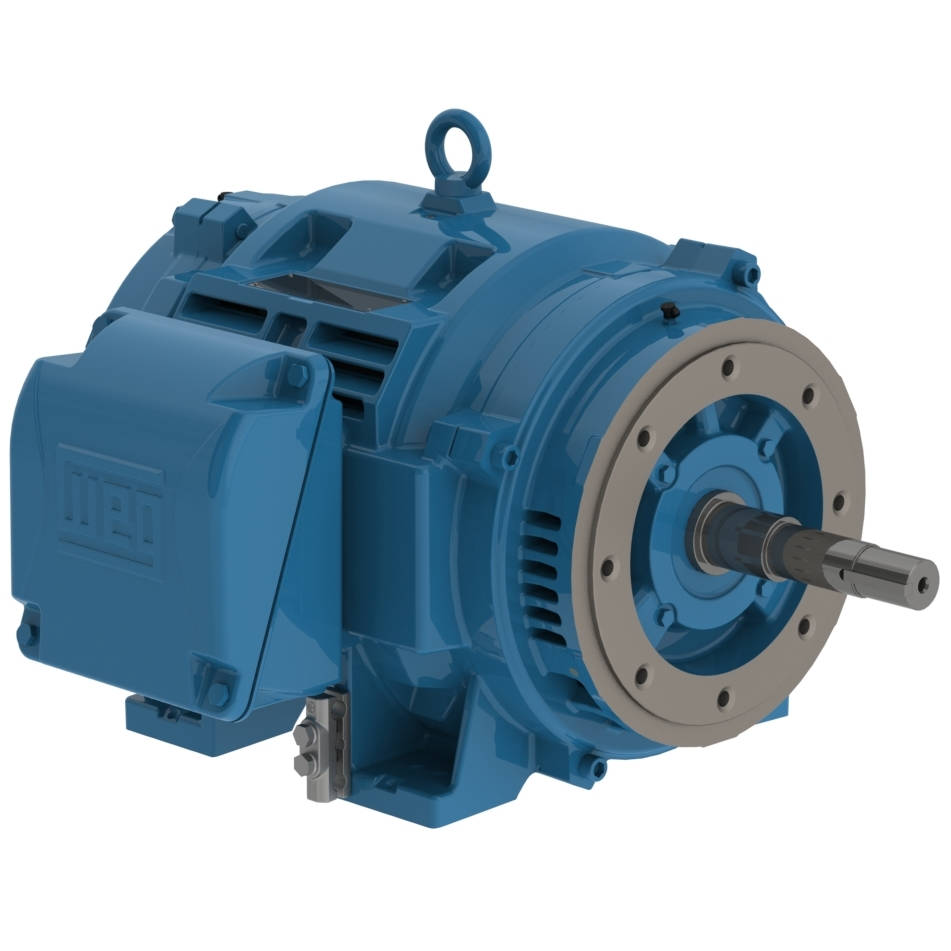

04012OT3E364JP-W40 WEG 40HP JP Close-Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 04012OT3E364JP-W40

Selected accessories will also be added to cart

$5,583.00 / Each

Quantity:

IC01 - ODP, IP23, 364JP/365JP Frame, 230/460/380VAC 50/60Hz 3 Phase, 14269638, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	364/5JP
Output	40 HP (30 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1185 rpm
Slip	1.25 %
Rated voltage	230/460 V
Rated current	94.2/47.1 A
L. R. Amperes	603/301 A
LRC	6.4x(Code G)
No load current	31.6/15.8 A
Rated torque	177 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	21.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	787 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.74	0.82	0.85

Frame	364/5JP
Output	30 HP (22 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	380 V
Rated current	42.7 A
L. R. Amperes	295 A
LRC	6.9x(Code H)
No load current	15.6 A
Rated torque	160 ft.lb
Locked rotor torque	200 %
Breakdown torque	260 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	21.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	787 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.8	92.2	92.2

Power factor

50%	75%	100%
0.72	0.82	0.85

Frame	364/5JP
Output	30 HP (22 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	400 V
Rated current	41.0 A
L. R. Amperes	287 A
LRC	7.0x(Code H)
No load current	16.7 A
Rated torque	160 ft.lb
Locked rotor torque	229 %
Breakdown torque	290 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	21.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	787 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.8	92.2	92.2

Power factor

50%	75%	100%
0.69	0.79	0.84

Frame	364/5JP
Output	30 HP (22 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	40.0 A
L. R. Amperes	320 A
LRC	8.0x(Code J)
No load current	17.6 A
Rated torque	160 ft.lb
Locked rotor torque	250 %
Breakdown torque	310 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	21.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	787 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.8	92.2	92.2

Power factor

50%	75%	100%
0.66	0.78	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
