/Products/Electric Motors/3 Phase/WEG/Super Premium Efficiency/04012EG3E364T-W22 WEG 40HP Electric Motor, 1200RPM

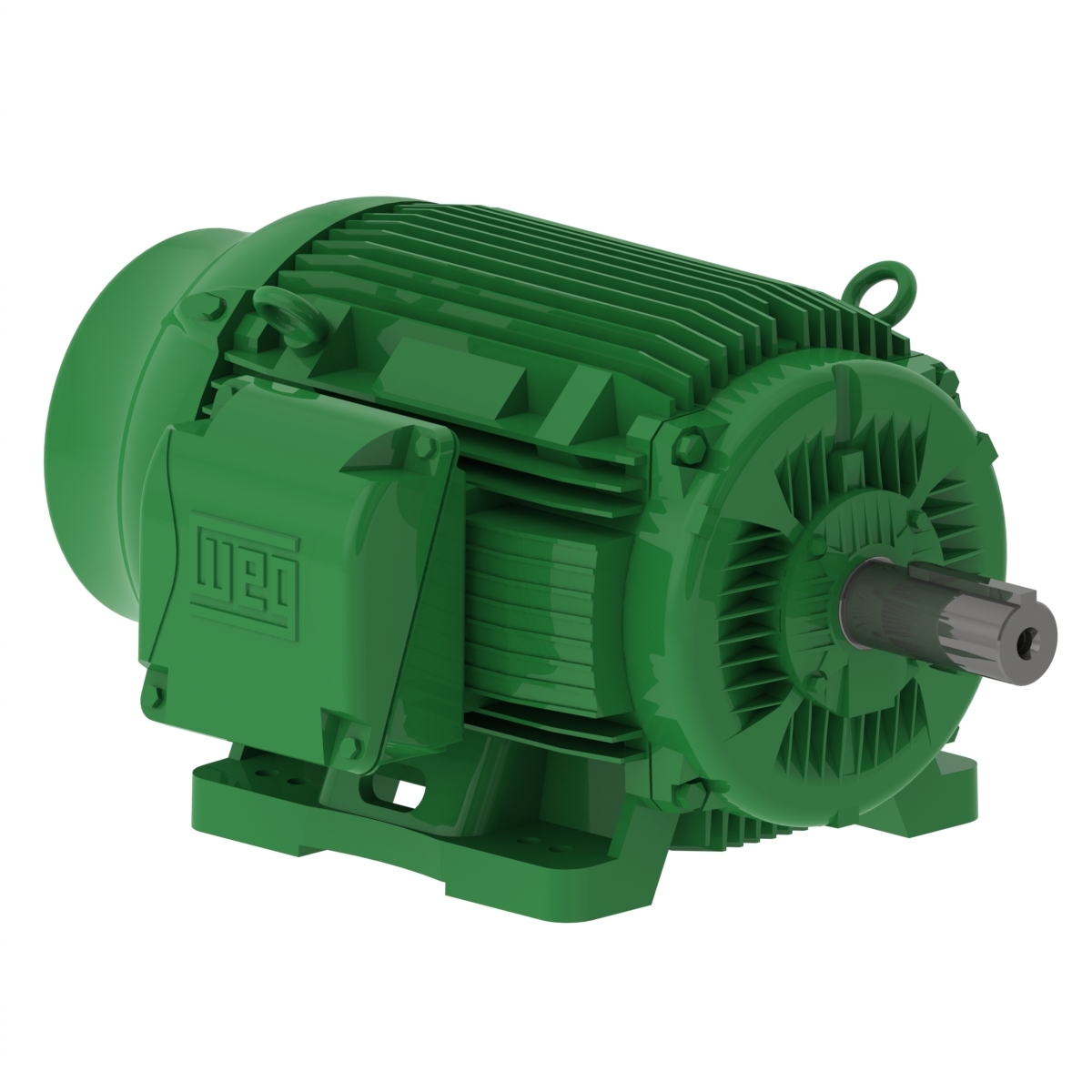

04012EG3E364T-W22 WEG 40HP Electric Motor, 1200RPM
Enlarge Photo

Product ID: 04012EG3E364T-W22

04012EG3E364T-W22 WEG 40HP Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 04012EG3E364T-W22

Selected accessories will also be added to cart
$6,009.00 / Each
Quantity:
IC411 - TEFC, IP55, 364T/365T Frame, 208-230/460VAC 60Hz 3 Phase, 11792444, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1190 rpm
Slip 0.83 %
Rated voltage 230/460 V
Rated current 97.8/48.9 A
L. R. Amperes 822/411 A
LRC 8.4x(Code K)
No load current 46.0/23.0 A
Rated torque 177 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 24.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 932 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.5  95.0

Power factor

50% 75% 100%
0.64  0.76  0.81
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 57.3 A
L. R. Amperes 378 A
LRC 6.6x(Code G)
No load current 23.0 A
Rated torque 212 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 24.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 932 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.6  93.6

Power factor

50% 75% 100%
0.70  0.80  0.85
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 55.4 A
L. R. Amperes 399 A
LRC 7.2x(Code H)
No load current 24.0 A
Rated torque 212 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 24.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 932 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.1  94.1

Power factor

50% 75% 100%
0.66  0.77  0.83
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 54.1 A
L. R. Amperes 411 A
LRC 7.6x(Code J)
No load current 25.0 A
Rated torque 212 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 24.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 932 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.1  94.1

Power factor

50% 75% 100%
0.63  0.75  0.82

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 6002 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
