/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/03036ET3Y200L-W22 WEG 40HP/30kW IEC TRU-Metric Electric Motor, 3600RPM

Product ID: 03036ET3Y200L-W22

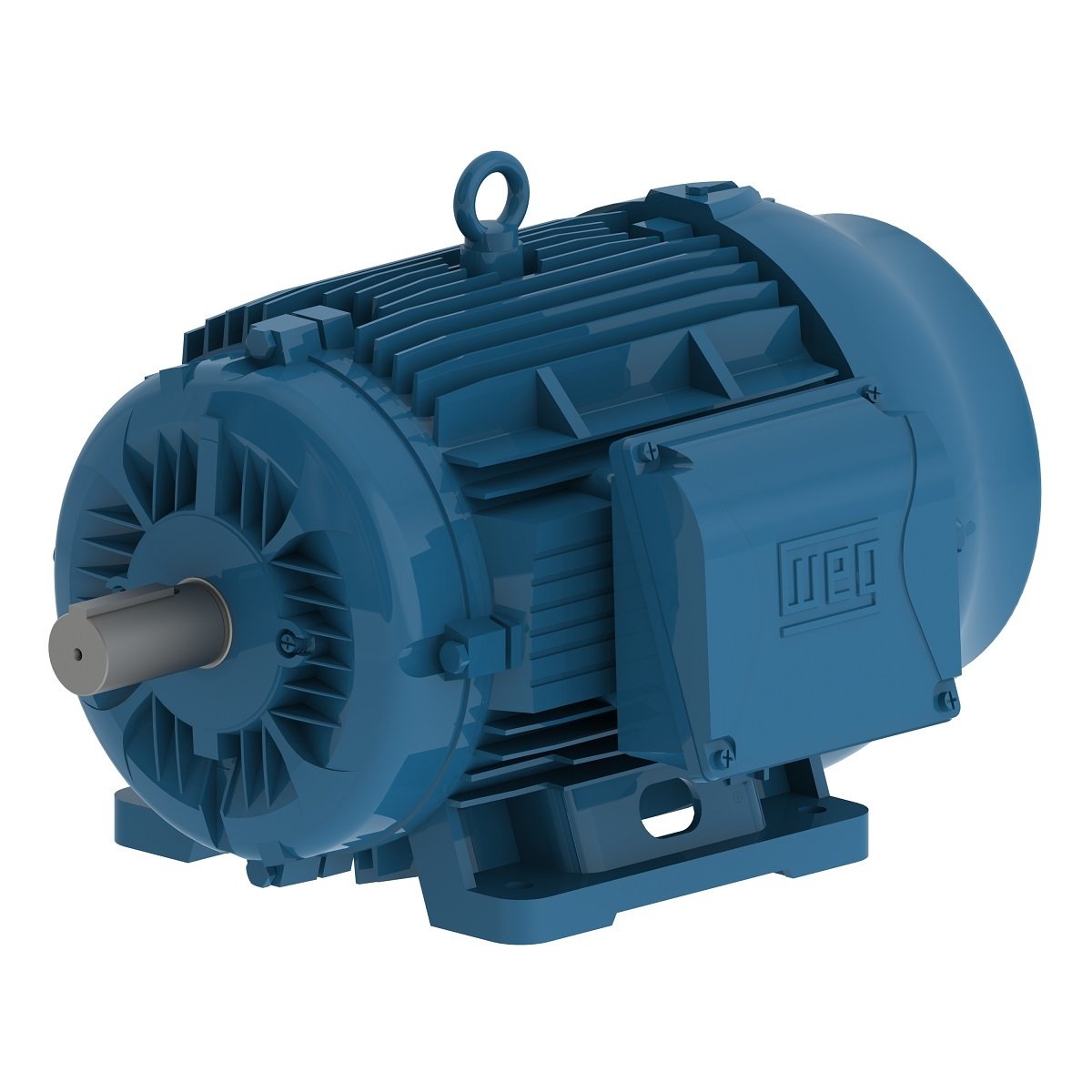

03036ET3Y200L-W22 WEG 40HP/30kW IEC TRU-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 03036ET3Y200L-W22

Selected accessories will also be added to cart

$3,657.75 / Each

Quantity:

IC411-TEFC, IP55, 200L Frame, 460/380-415VAC 3-Phase 50/60Hz, 11567399, Foot Mount, Cast Iron Frame, 55mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	200L
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	55.3 A
L. R. Amperes	404 A
LRC	7.3
No load current	18.0 A
Rated torque	70.0 ft.lb
Locked rotor torque	270 %
Breakdown torque	260 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	4.44 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	536 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.1	93.6	93.6

Power factor

50%	75%	100%
0.77	0.85	0.88

Frame	200L
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	400 V
Rated current	53.8 A
L. R. Amperes	414 A
LRC	7.7
No load current	20.0 A
Rated torque	69.9 ft.lb
Locked rotor torque	300 %
Breakdown torque	290 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	4.44 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	536 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.8	93.5	93.6

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	200L
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2970 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	53.1 A
L. R. Amperes	430 A
LRC	8.1
No load current	21.9 A
Rated torque	69.8 ft.lb
Locked rotor torque	330 %
Breakdown torque	310 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	4.44 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	536 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.6	93.4	93.6

Power factor

50%	75%	100%
0.69	0.79	0.84

Frame	200L
Output	40 HP (30 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3570 rpm
Slip	0.83 %
Rated voltage	460 V
Rated current	47.1 A
L. R. Amperes	410 A
LRC	8.7
No load current	18.0 A
Rated torque	58.0 ft.lb
Locked rotor torque	360 %
Breakdown torque	330 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	4.44 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	76.0 dB(A)
Approx. weight³	536 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	92.4	93.0

Power factor

50%	75%	100%
0.73	0.82	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM50x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
