/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount, C-Face/03018OT3V286TC-W40 WEG 30HP, General Purpose Electric Motor, 1800RPM

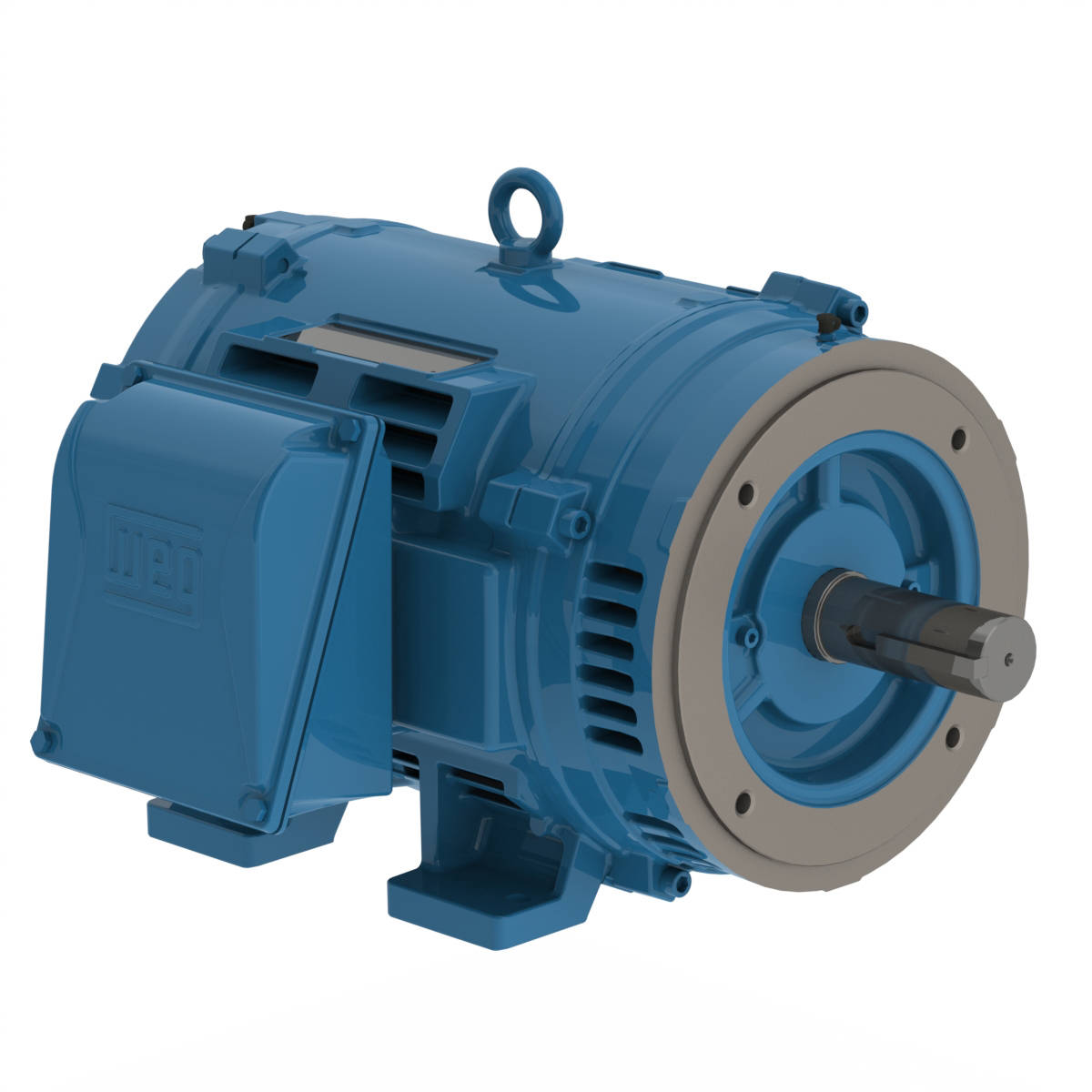

03018OT3V286TC-W40 WEG 30HP, General Purpose Electric Motor, 1800RPM

Product ID: 03018OT3V286TC-W40

MFG: WEG Electric Corporation
MFG Part Number: 03018OT3V286TC-W40

Selected accessories will also be added to cart

$1,961.25 / Each

Quantity:

IC01 - ODP, IP23, 284TC/286TC Frame, 200/400VAC 60Hz 3 Phase, 14495863, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-7/8" Keyed Shaft

Details

Frame	284/6TC
Output	30 HP (22 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	200/400 V
Rated current	80.3/40.1 A
L. R. Amperes	530/265 A
LRC	6.6x(Code G)
No load current	27.8/13.9 A
Rated torque	89.0 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	4.52 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	402 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.70	0.80	0.84
