/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEFC, F-1 Mounting/03018ET3ECT286TF1-W22 WEG 30HP Cooling Tower Electric Motor, 1800RPM

Product ID: 03018ET3ECT286TF1-W2

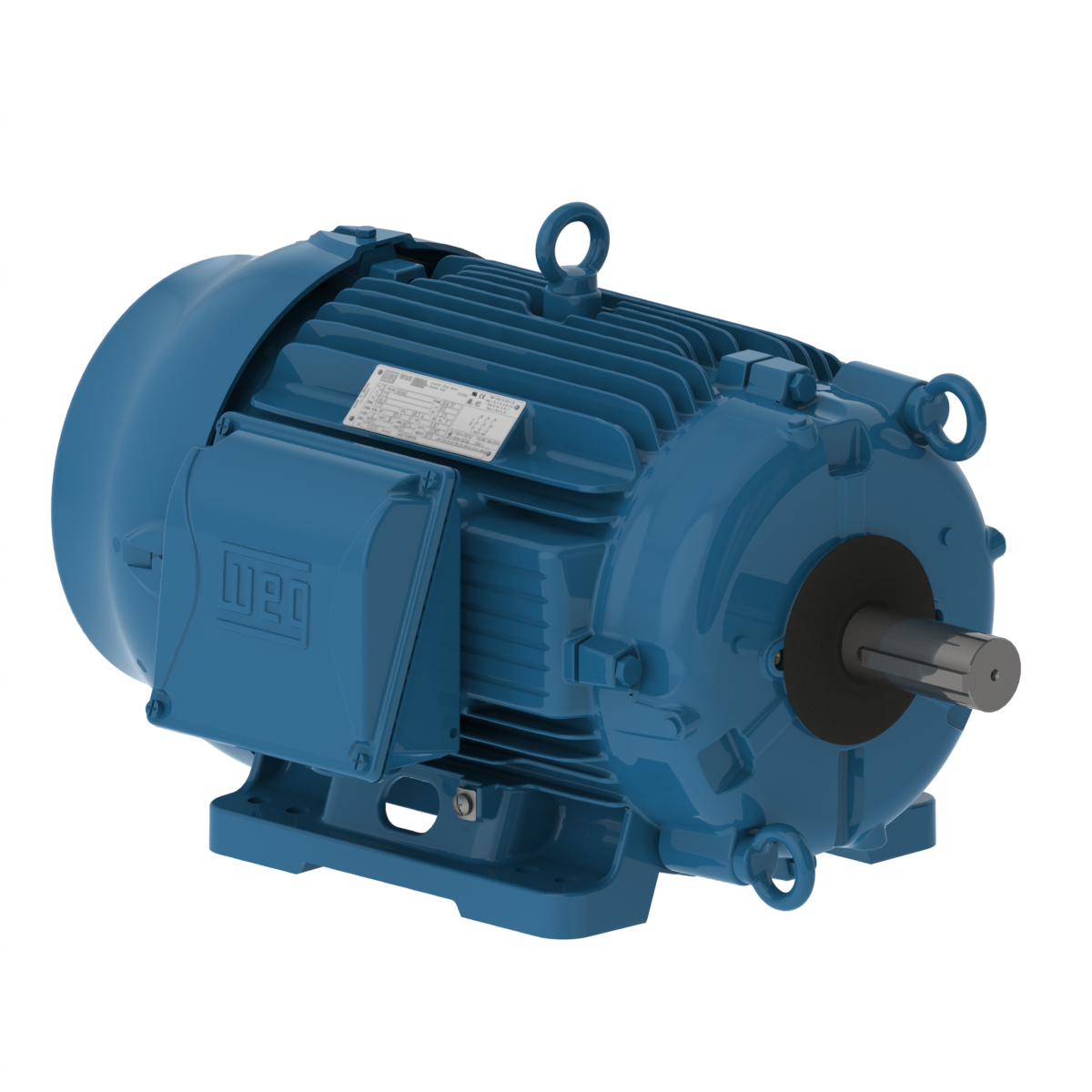

03018ET3ECT286TF1-W22 WEG 30HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 03018ET3ECT286TF1-W22

Selected accessories will also be added to cart

$2,803.50 / Each

Quantity:

IC411 - TEFC, IP55, 284T/286T Frame, 230/460/380VAC 60Hz 3 Phase, 11972829, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F1 Box Mounting, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284/6T
Output	30 HP (22 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	70.2/35.1 A
L. R. Amperes	428/214 A
LRC	6.1x(Code G)
No load current	26.0/13.0 A
Rated torque	89.3 ft.lb
Locked rotor torque	240 %
Breakdown torque	240 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	459 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	93.6

Power factor

50%	75%	100%
0.70	0.80	0.84

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	35.7 A
L. R. Amperes	214 A
LRC	6.0x(Code G)
No load current	12.9 A
Rated torque	89.9 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	459 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.1	92.5	92.6

Power factor

50%	75%	100%
0.70	0.81	0.85

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	34.3 A
L. R. Amperes	230 A
LRC	6.7x(Code H)
No load current	13.8 A
Rated torque	89.6 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	459 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.1	92.8	92.7

Power factor

50%	75%	100%
0.67	0.79	0.84

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	33.9 A
L. R. Amperes	237 A
LRC	7.0x(Code H)
No load current	14.5 A
Rated torque	89.3 ft.lb
Locked rotor torque	260 %
Breakdown torque	280 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	459 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.6	92.5	92.6

Power factor

50%	75%	100%
0.64	0.76	0.82

Frame	284/6T
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	380 V
Rated current	43.1 A
L. R. Amperes	216 A
LRC	5.0x(Code E)
No load current	12.9 A
Rated torque	109 ft.lb
Locked rotor torque	170 %
Breakdown torque	190 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	459 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.0	90.2	90.2

Power factor

50%	75%	100%
0.76	0.83	0.86

Frame	284/6T
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	41.1 A
L. R. Amperes	230 A
LRC	5.6x(Code F)
No load current	13.8 A
Rated torque	108 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	459 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.5	91.0	91.0

Power factor

50%	75%	100%
0.73	0.82	0.85

Frame	284/6T
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	39.7 A
L. R. Amperes	238 A
LRC	6.0x(Code G)
No load current	14.5 A
Rated torque	108 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	459 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.2	91.7	91.7

Power factor

50%	75%	100%
0.70	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
