/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/C-Face, Footless/03012ET3ER326TSC-W22 WEG 30HP Severe Duty Electric Motor, 1200RPM

Product ID: 03012ET3ER326TSC-W22

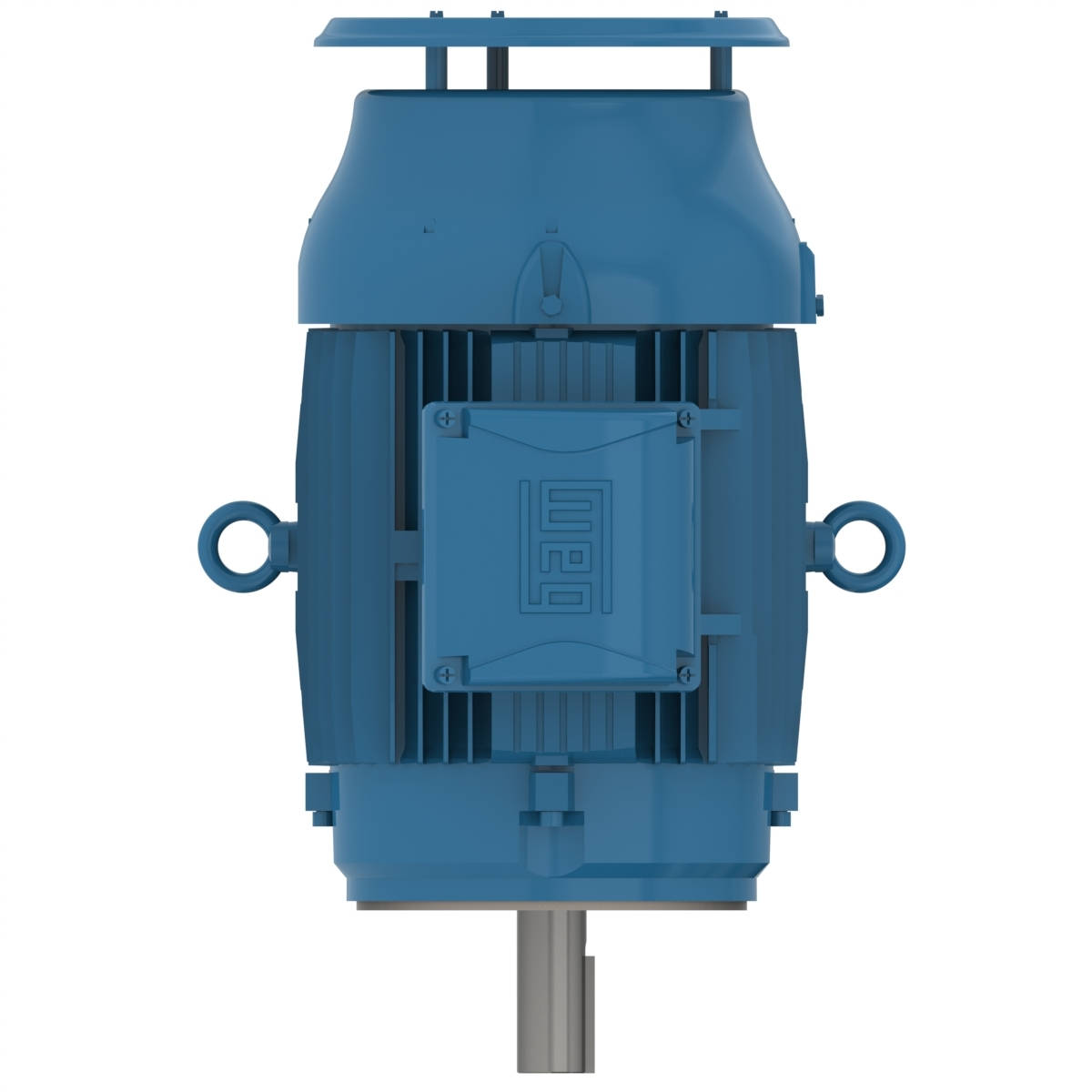

03012ET3ER326TSC-W22 WEG 30HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 03012ET3ER326TSC-W22

Selected accessories will also be added to cart

$4,326.00 / Each

Quantity:

IC411 - TEFC, IP55, 326TSC, 230/460/380VAC 50/60Hz 3 Phase, 14335221, NEMA Premium Efficiency, Footless, C-Face, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	326TSC
Output	30 HP (22 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1180 rpm
Slip	1.67 %
Rated voltage	230/460 V
Rated current	72.4/36.2 A
L. R. Amperes	449/224 A
LRC	6.2x(Code G)
No load current	29.0/14.5 A
Rated torque	134 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	594 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	93.0	93.0

Power factor

50%	75%	100%
0.65	0.76	0.82

Frame	326TSC
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	380 V
Rated current	36.9 A
L. R. Amperes	214 A
LRC	5.8x(Code G)
No load current	14.0 A
Rated torque	135 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	594 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.3	91.8	91.7

Power factor

50%	75%	100%
0.64	0.76	0.83

Frame	326TSC
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	36.2 A
L. R. Amperes	228 A
LRC	6.3x(Code H)
No load current	15.0 A
Rated torque	134 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	594 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.3	92.2	92.1

Power factor

50%	75%	100%
0.61	0.74	0.80

Frame	326TSC
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	35.4 A
L. R. Amperes	237 A
LRC	6.7x(Code H)
No load current	16.0 A
Rated torque	134 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	594 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.7	91.9	92.0

Power factor

50%	75%	100%
0.58	0.71	0.79

Frame	326TSC
Output	30 HP (22 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	43.7 A
L. R. Amperes	214 A
LRC	4.9x(Code E)
No load current	14.0 A
Rated torque	162 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	594 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	91.7	91.0

Power factor

50%	75%	100%
0.71	0.80	0.84

Frame	326TSC
Output	30 HP (22 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	400 V
Rated current	41.7 A
L. R. Amperes	225 A
LRC	5.4x(Code F)
No load current	15.0 A
Rated torque	162 ft.lb
Locked rotor torque	180 %
Breakdown torque	220 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	594 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	91.7

Power factor

50%	75%	100%
0.68	0.78	0.83

Frame	326TSC
Output	30 HP (22 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	40.7 A
L. R. Amperes	236 A
LRC	5.8x(Code G)
No load current	16.0 A
Rated torque	161 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	594 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	92.4	91.7

Power factor

50%	75%	100%
0.65	0.76	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
