/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/02589EP3QCT286VF1-W22 WEG 6.25/25HP Cooling Tower Electric Motor, 900/1800RPM

Product ID: 02589EP3QCT286VF1-W2

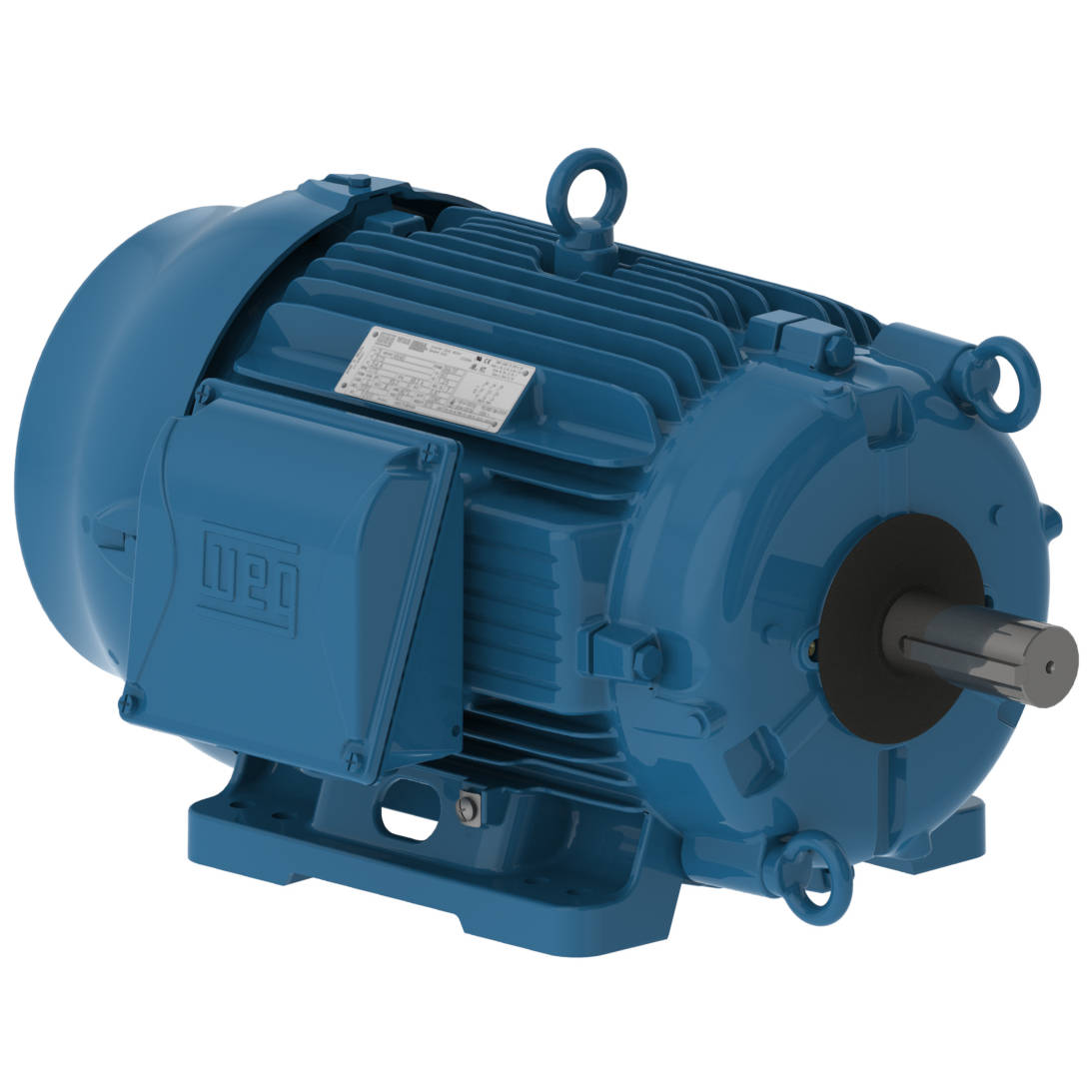

02589EP3QCT286VF1-W22 WEG 6.25/25HP Cooling Tower Electric Motor, 900/1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02589EP3QCT286VF1-W2

Selected accessories will also be added to cart

$3,149.25 / Each

Quantity:

IC411 - TEFC, IP55, 284T/286T Frame, 460VAC 60Hz 3 Phase, 12176621, High Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

460 V 60 Hz 4P
460 V 60 Hz 8P

Electric Motors

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	8/4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	460 V
Rated current	30.1 A
L. R. Amperes	256 A
LRC	8.5x(Code K)
No load current	12.8 A
Rated torque	73.8 ft.lb
Locked rotor torque	300 %
Breakdown torque	310 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	471 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	91.7	91.7

Power factor

50%	75%	100%
0.68	0.80	0.84

Frame	284/6T
Output	6.25 HP (4.6 kW)
Number of Poles	8/4
Frequency	60 Hz
Rated speed	885 rpm
Slip	1.67 %
Rated voltage	460 V
Rated current	11.1 A
L. R. Amperes	44.4 A
LRC	4.0x(Code G)
No load current	7.30 A
Rated torque	37.1 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	86s (cold) 48s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	471 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	85.5	86.5

Power factor

50%	75%	100%
0.40	0.52	0.60

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
