/Products/Electric Motors/3 Phase/WEG/Air Handling/Pad Mount/02512ET3EPM324/6Y-W22 WEG 25HP Pad Mount Electric Motor, 1200RPM

Product ID: 02512ET3EPM324/6Y-W2

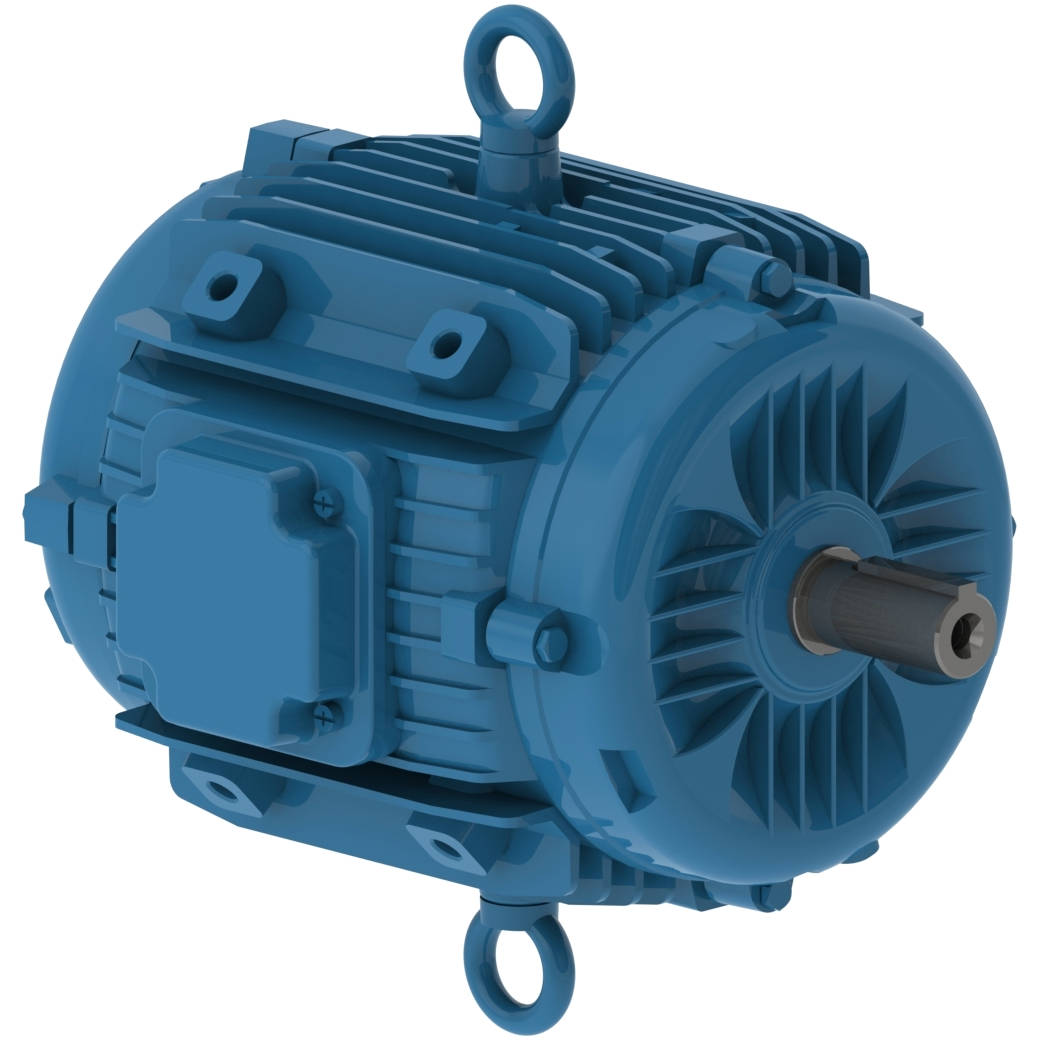

02512ET3EPM324/6Y-W22 WEG 25HP Pad Mount Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 02512ET3EPM324/6Y-W22

Selected accessories will also be added to cart

$4,014.75 / Each

Quantity:

IC410 - TEAO, IP55, 326YZ Frame, 208-230/460VAC 60Hz 3 Phase, 13789918, NEMA Premium Efficiency, Cast Iron Frame, 2-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	326YZ
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1180 rpm
Slip	1.67 %
Rated voltage	208-230/460 V
Rated current	67.3-60.9/30.4 A
L. R. Amperes	417-378/188 A
LRC	6.2x(Code G)
No load current	0.000-28.0/14.0 A
Rated torque	111 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	46s (cold) 26s (hot)

Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	560 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	93.0	93.0

Power factor

50%	75%	100%
0.65	0.77	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Winding thermal protection	Thermistor - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
