/Products/Electric Motors/3 Phase/WEG/Fire Pump/Foot Mount, C-Face, Rolled Steel/01536OP3EFP215TC-S WEG 15HP Fire Pump Electric Motor, 3600RPM

Product ID: 01536OP3EFP215TC-S

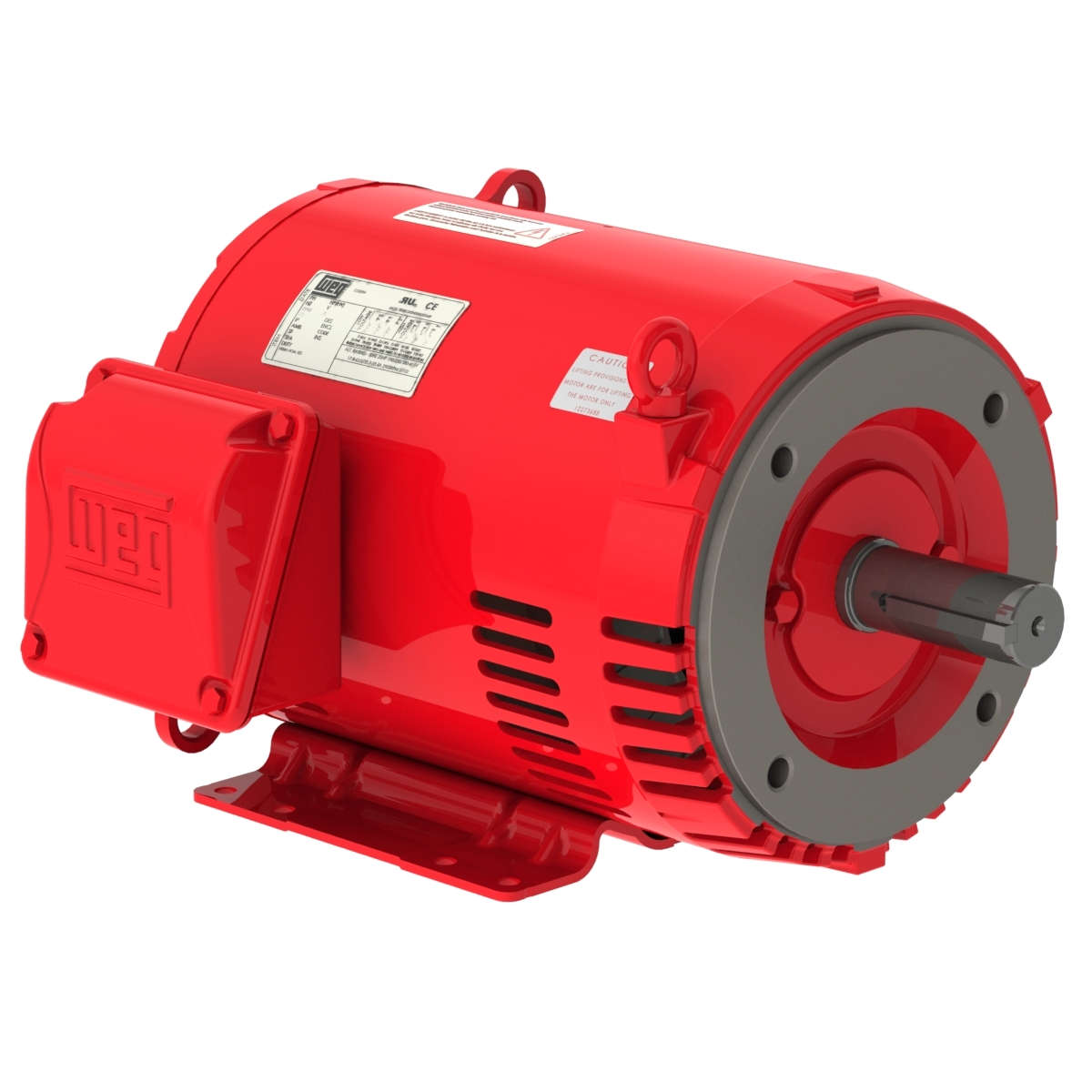

01536OP3EFP215TC-S WEG 15HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536OP3EFP215TC-S

Selected accessories will also be added to cart

$962.25 / Each

Quantity:

IC01 - ODP, 213TC/215TC Frame, 230/460/190-220/380-415VAC 60Hz 3 Phase, 12675508, High Efficiency, Rolled Steel, Foot Mounted, C-Face, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5TC
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3525 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	35.0/17.5 A
L. R. Amperes	228/114 A
LRC	6.5x(Code G)
No load current	14.7/7.36 A
Rated torque	22.3 ft.lb
Locked rotor torque	190 %
Breakdown torque	260 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.4651 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	126 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.73	0.83	0.88

Frame	213/5TC
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	190/380 V
Rated current	43.8/21.9 A
L. R. Amperes	201/101 A
LRC	4.6x(Code D)
No load current	14.3/7.17 A
Rated torque	27.3 ft.lb
Locked rotor torque	130 %
Breakdown torque	180 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.4651 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	126 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	86.9	83.9

Power factor

50%	75%	100%
0.80	0.88	0.91

Frame	213/5TC
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	220/415 V
Rated current	39.6/21.0 A
L. R. Amperes	202/107 A
LRC	5.1x(Code E)
No load current	15.7/8.32 A
Rated torque	27.2 ft.lb
Locked rotor torque	140 %
Breakdown torque	200 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.4651 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	126 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.0	87.3	85.1

Power factor

50%	75%	100%
0.75	0.85	0.89

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
