/Products/Electric Motors/Single Phase/WEG/Farm Duty - Grain Dryer/01536AP1DGD215TZ-S WEG 10-15HP Grain Dryer Electric Motor, 3600RPM

Product ID: 01536AP1DGD215TZ-S

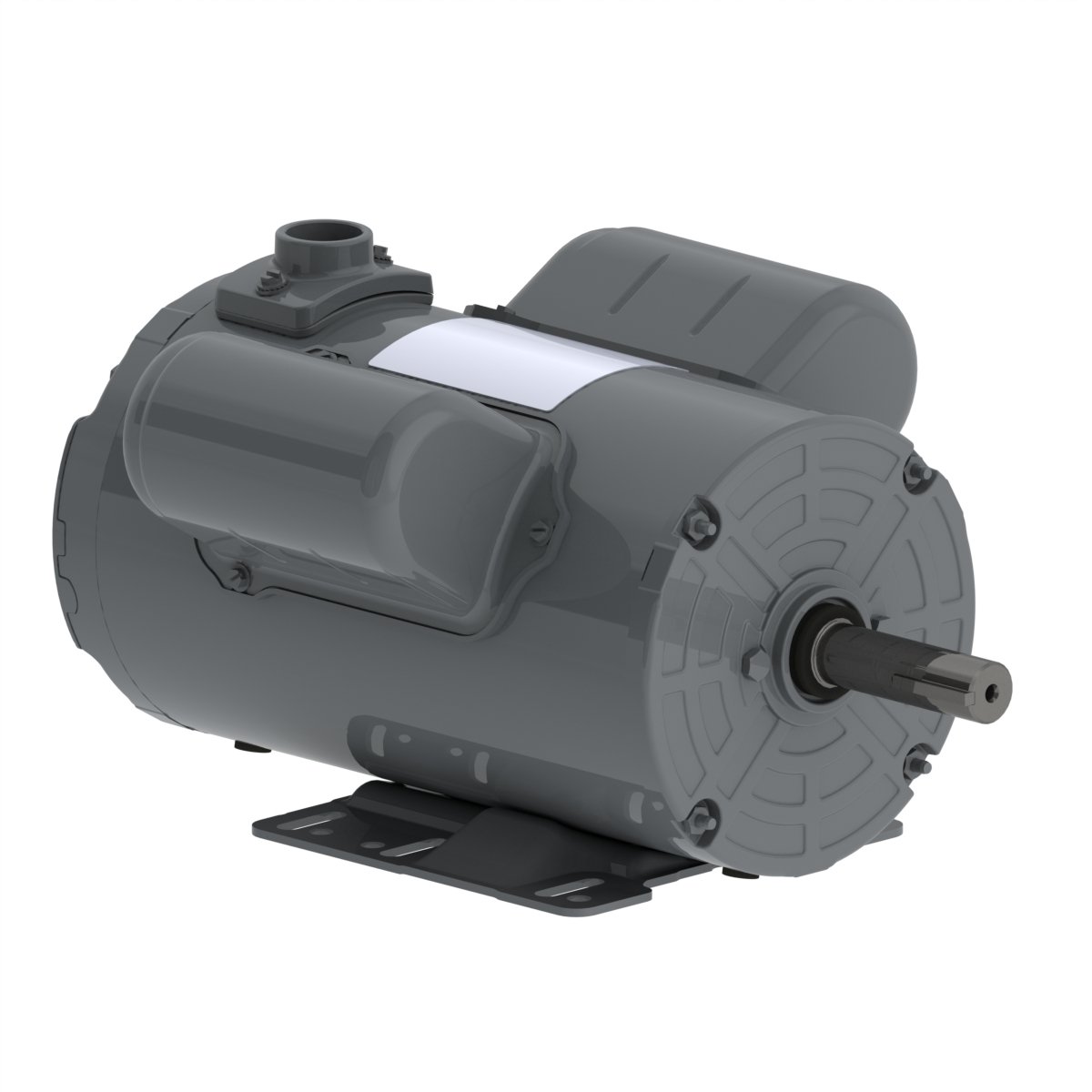

01536AP1DGD215TZ-S WEG 10-15HP Grain Dryer Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536AP1DGD215TZ-S

Selected accessories will also be added to cart

$1,518.00 / Each

Quantity:

IC410-TEAO, IP55, 213TZ/215TZ Frame, 230VAC Single Phase 60Hz, 13972899, Foot Mount, Rolled Steel, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5TZ
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3550 rpm
Slip	1.39 %
Rated voltage	230 V
Rated current	37.8 A
L. R. Amperes	446 A
LRC	11.8x(Code M)
No load current	5.30 A
Rated torque	14.6 ft.lb
Locked rotor torque	210 %
Breakdown torque	440 %

Locked rotor time	14s (cold) 8s (hot)
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-3
Rotation¹	Both (CW and CCW)
Noise level²	75.0 dB(A)
Approx. weight³	166 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.2	86.4	88.0

Power factor

50%	75%	100%
0.97	0.98	0.98

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 7031 207N (ISO 12944 - C2)
Grounding Lugs	In the endshield
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
