/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/01509ET3Y200L-W22 WEG 20HP/15kW IEC TRU-Metric Electric Motor, 900RPM

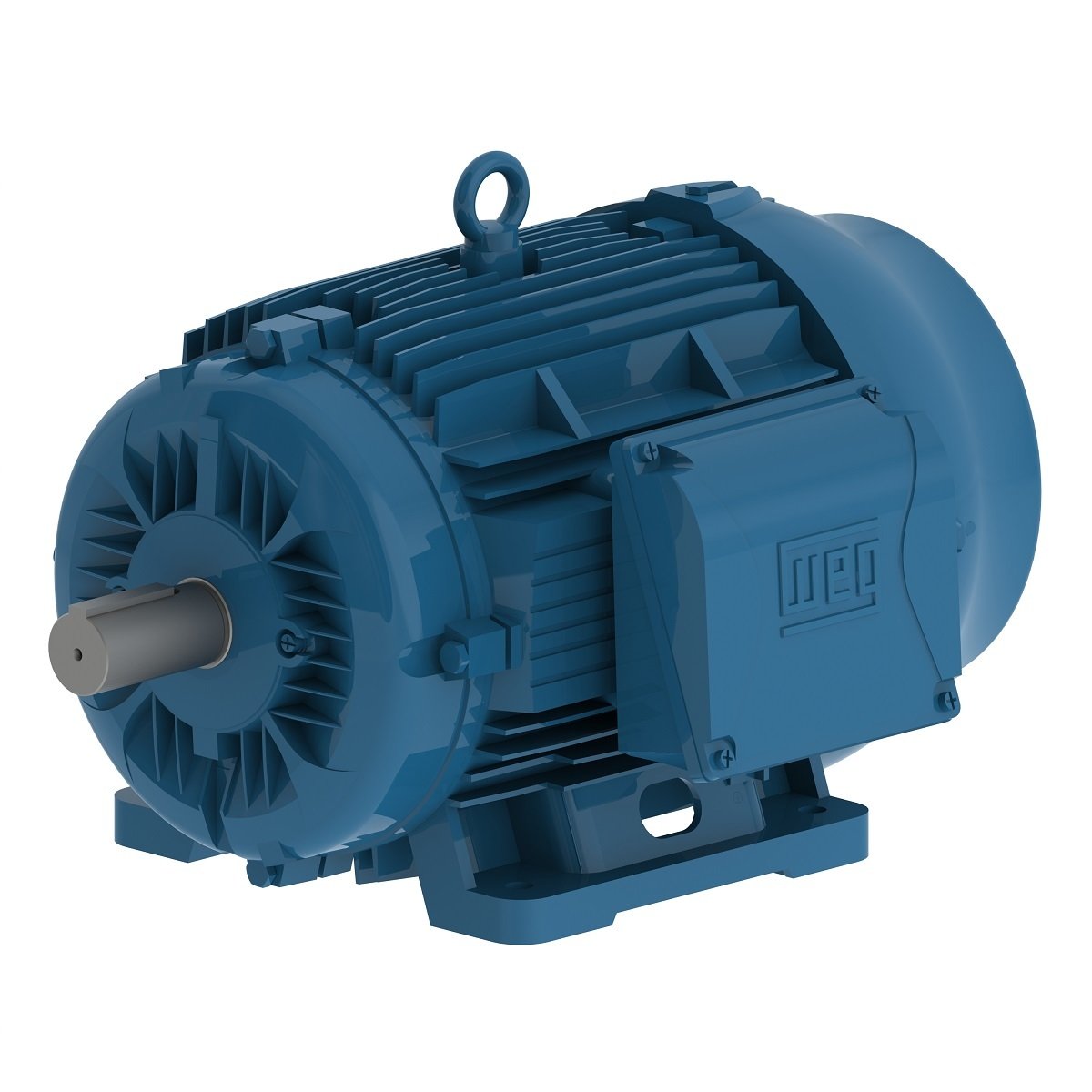

01509ET3Y200L-W22 WEG 20HP/15kW IEC TRU-Metric Electric Motor, 900RPM
Enlarge Photo

Product ID: 01509ET3Y200L-W22

01509ET3Y200L-W22 WEG 20HP/15kW IEC TRU-Metric Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 01509ET3Y200L-W22

Selected accessories will also be added to cart
$3,868.50 / Each
Quantity:
IC411-TEFC, IP55, 200L Frame, 460/380-415VAC 3-Phase 50/60Hz, 13034280, Foot Mount, Cast Iron Frame, 55mm Keyed Shaft

Electric Motors

Frame 200L
Output 20 HP (15 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 33.0 A
L. R. Amperes 162 A
LRC 4.9
No load current 14.7 A
Rated torque 142 ft.lb
Locked rotor torque 170 %
Breakdown torque 190 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 10.8 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 549 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.5  91.0  91.0

Power factor

50% 75% 100%
0.60  0.71  0.76
Frame 200L
Output 20 HP (15 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 32.0 A
L. R. Amperes 157 A
LRC 4.9
No load current 16.0 A
Rated torque 142 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 10.8 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 549 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.0  91.0  91.4

Power factor

50% 75% 100%
0.56  0.68  0.74
Frame 200L
Output 20 HP (15 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 31.7 A
L. R. Amperes 155 A
LRC 4.9
No load current 17.2 A
Rated torque 142 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 10.8 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 549 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.4  90.8  91.5

Power factor

50% 75% 100%
0.53  0.65  0.72
Frame 200L
Output 20 HP (15 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 885 rpm
Slip 1.67 %
Rated voltage 460 V
Rated current 28.0 A
L. R. Amperes 146 A
LRC 5.2
No load current 15.3 A
Rated torque 117 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 79s (cold) 44s (hot)
Moment of inertia (J) 10.8 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 549 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  91.0  91.0

Power factor

50% 75% 100%
0.55  0.67  0.74

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM50x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
