/Products/Electric Motors/3 Phase/WEG/Fire Pump/Foot Mount, C-Face, Rolled Steel/01036OP3HFP213TC-S WEG 10HP Fire Pump Electric Motor, 3600RPM

Product ID: 01036OP3HFP213TC-S

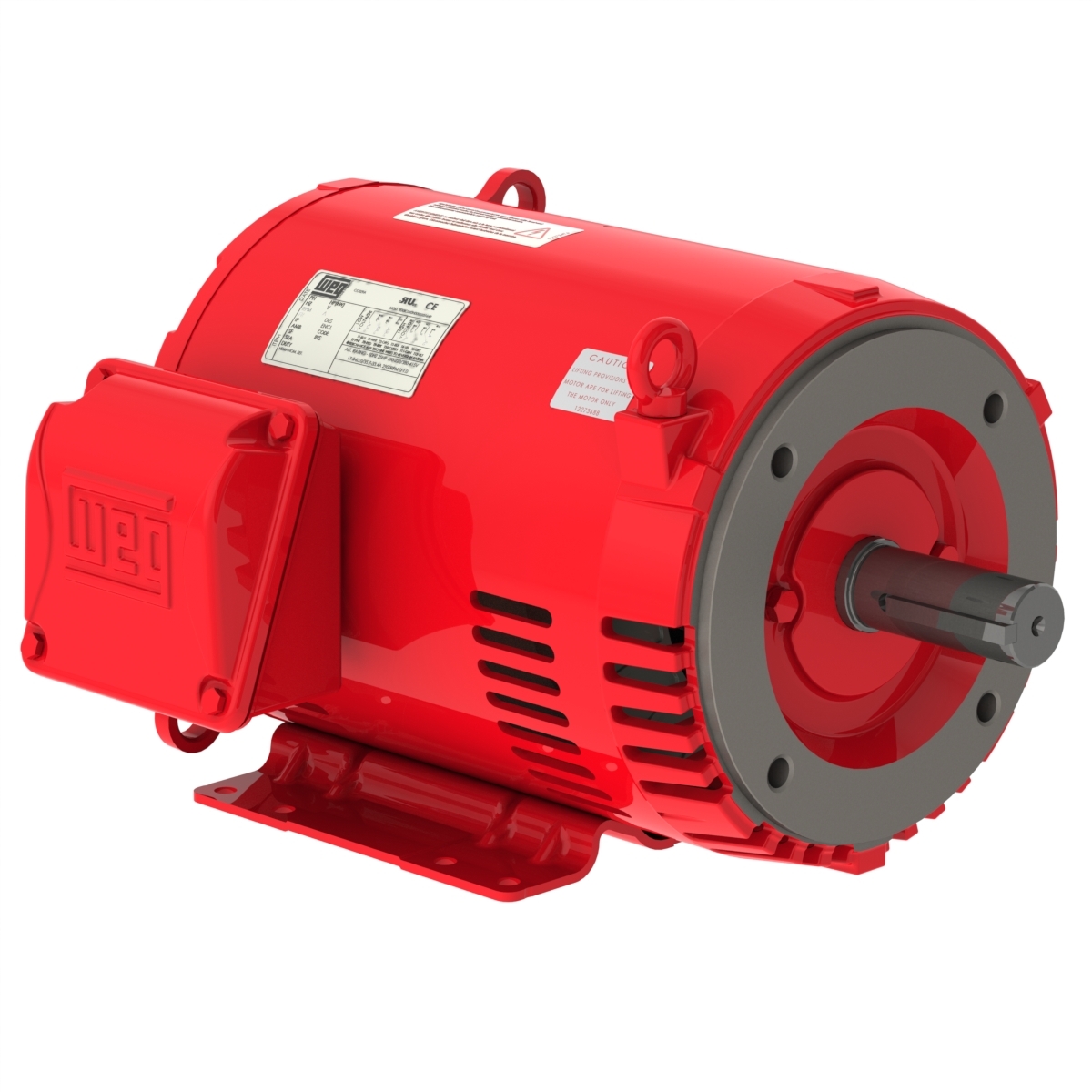

01036OP3HFP213TC-S WEG 10HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036OP3HFP213TC-S

Selected accessories will also be added to cart

$675.75 / Each

Quantity:

IC01 - ODP, 213TC/215TC Frame, 575VAC 60Hz 3 Phase, 12675497, High Efficiency, Foot Mounted, C-Face, Rolled Steel, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5TC
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	575 V
Rated current	9.76 A
L. R. Amperes	62.5 A
LRC	6.4x(Code G)
No load current	4.10 A
Rated torque	14.9 ft.lb
Locked rotor torque	180 %
Breakdown torque	260 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.3816 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	130 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	88.5

Power factor

50%	75%	100%
0.72	0.83	0.87

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
