/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/01036ET3H215TC-S WEG 10HP General Purpose Electric Motor, 3600RPM

Product ID: 01036ET3H215TC-S

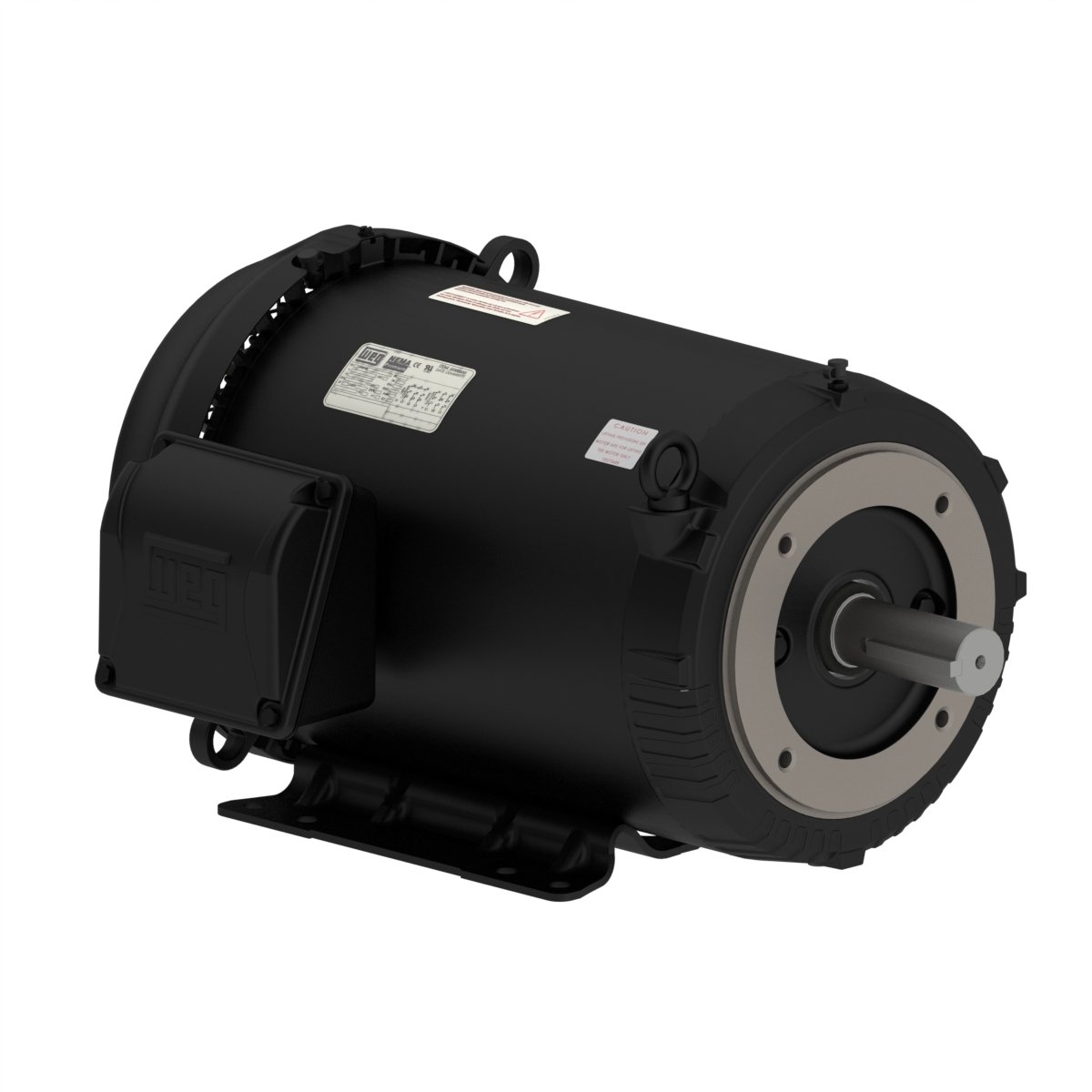

01036ET3H215TC-S WEG 10HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ET3H215TC-S

Selected accessories will also be added to cart

$903.75 / Each

Quantity:

IC411 - TEFC, IP55, 213TC/215TC Frame, 575VAC 3-Phase 60Hz, 12845475, C-Face, Foot Mount, Rolled Steel, NEMA Premium Efficiency, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5TC
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	575 V
Rated current	9.20 A
L. R. Amperes	69.0 A
LRC	7.5x(Code H)
No load current	3.01 A
Rated torque	14.7 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.7188 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	171 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.2	90.2

Power factor

50%	75%	100%
0.80	0.88	0.91

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
