/Products/Electric Motors/Single Phase/WEG/General Purpose, TEFC, W22/01036ES1E215TC-W22 WEG 10HP Electric Motor, 3600RPM

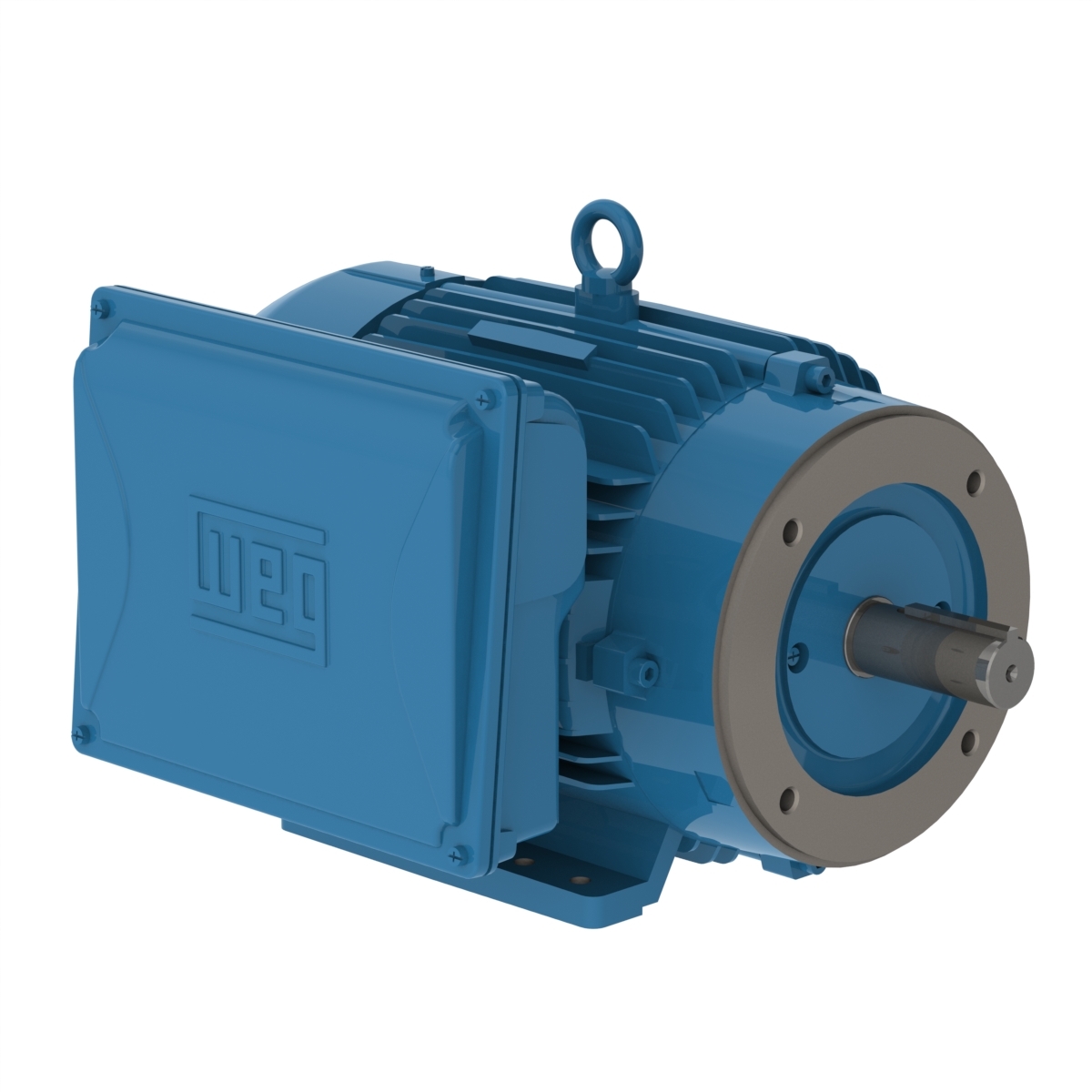

01036ES1E215TC-W22 WEG 10HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036ES1E215TC-W22

01036ES1E215TC-W22 WEG 10HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ES1E215TC-W22

Selected accessories will also be added to cart
$1,477.50 / Each
Quantity:
IC411 - TEFC, IP55, 213TC/215TC Frame, 208-230/460VAC, 60Hz Single Phase, 14074771, Foot Mount, C-Face, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 208-230/460 V
Rated current 41.8-38.8/19.4 A
L. R. Amperes 293-272/136 A
LRC 7.0x(Code G)
No load current 5.95-6.90/3.45 A
Rated torque 14.9 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.5285 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 166 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  85.5  86.5

Power factor

50% 75% 100%
0.96  0.97  0.97

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6308 ZZ   6206 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
161 lb  327 lb

 Loading...

About this Product

V-Ring Seal



V-Ring Seal to keep liquids and dust out of the motor.





Capacitor



Available with a run capacitor, run and start capacitor or start capacitor.



        Cast Iron Frame



          • FC-200 (EN GJL 200) cast iron frames meet impact
            level IK08 (5J) ensuring superior mechanical strength
            for the most demanding applications.
          • Solid motor feet provide excellent rigidity, allowing
            easier alignment and installation.



        Cooling System



          • The cooling system (fan, non drive endshield and fan cover)
            is designed to minimize noise level and improve thermal efficiency.
          • Steel plate fan cover provides high mechanical strength,
            corrosion resistance and extended lifetime.



        Centrifugal Switch



          • The starting system of W22 single phase motors
            was completely redesigned to improve functionality,
            thus increasing system reliability and lifespan.
