/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount/01018ET3E215T-S WEG 10HP General Purpose Electric Motor, 1800RPM

Product ID: 01018ET3E215T-S

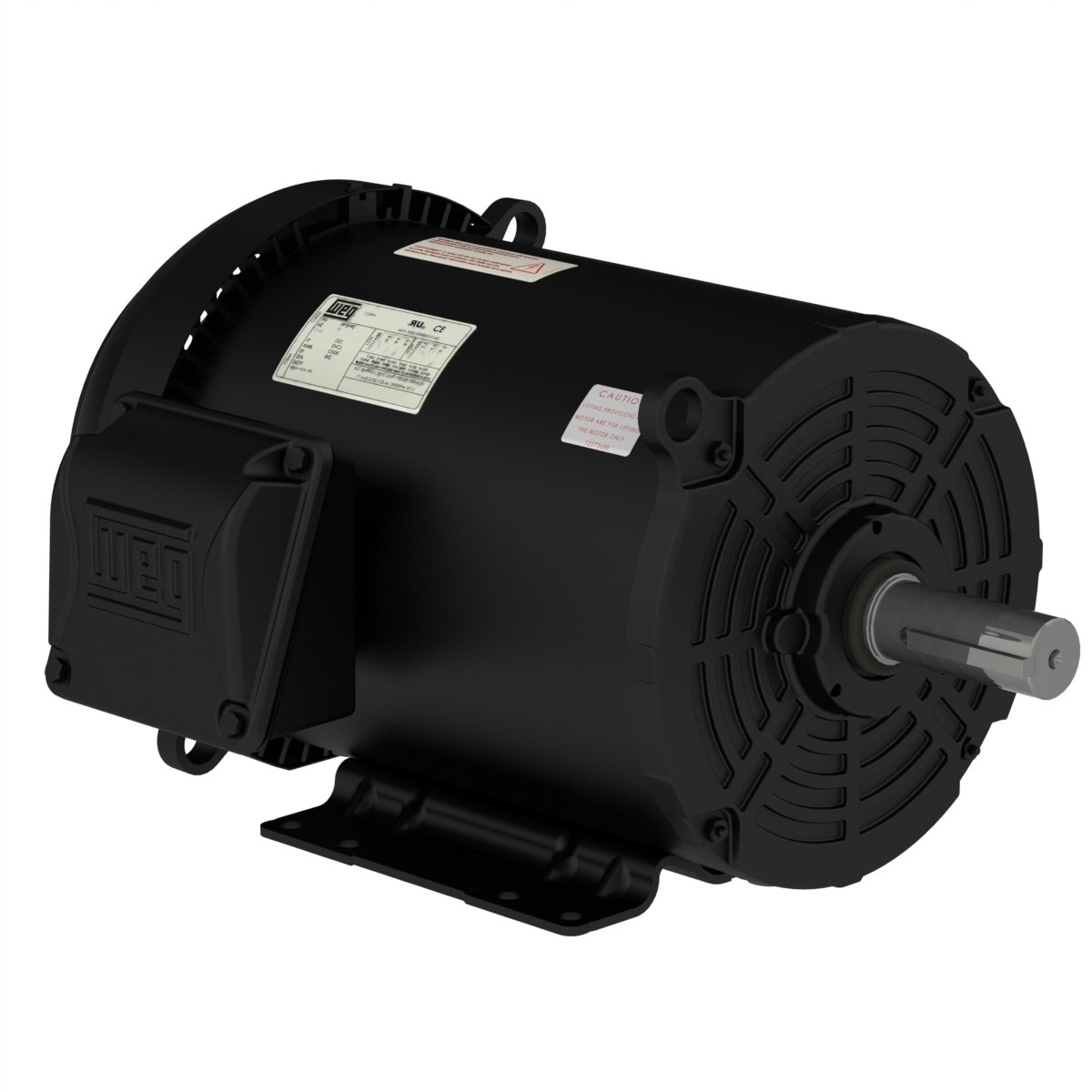

01018ET3E215T-S WEG 10HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018ET3E215T-S

Selected accessories will also be added to cart

$832.50 / Each

Quantity:

IC411 - TEFC, IP55, 213T/215T Frame, 208-230/460VAC 3 Phase 50/60Hz, 12630848, Rolled Steel NEMA Premium Efficiency, Foot Mount, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	27.0-24.4/12.2 A
L. R. Amperes	189-171/85.4 A
LRC	7.0x(Code H)
No load current	9.56-11.1/5.54 A
Rated torque	29.4 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.07 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	127 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	91.7

Power factor

50%	75%	100%
0.67	0.78	0.84

Frame	213/5T
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	190/380 V
Rated current	22.4/11.2 A
L. R. Amperes	170/85.1 A
LRC	7.6x(Code J)
No load current	10.9/5.46 A
Rated torque	26.5 ft.lb
Locked rotor torque	250 %
Breakdown torque	320 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	1.07 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	127 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.1	90.7	90.1

Power factor

50%	75%	100%
0.64	0.76	0.83

Frame	213/5T
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	220/415 V
Rated current	20.6/10.9 A
L. R. Amperes	179/94.8 A
LRC	8.7x(Code L)
No load current	12.1/6.43 A
Rated torque	26.4 ft.lb
Locked rotor torque	320 %
Breakdown torque	390 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	1.07 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	127 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.7	90.2	90.3

Power factor

50%	75%	100%
0.56	0.69	0.78

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
