/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount/00736ET3E213T-SRT WEG 7.5HP General Purpose Electric Motor, 3600RPM

Product ID: 00736ET3E213T-SRT

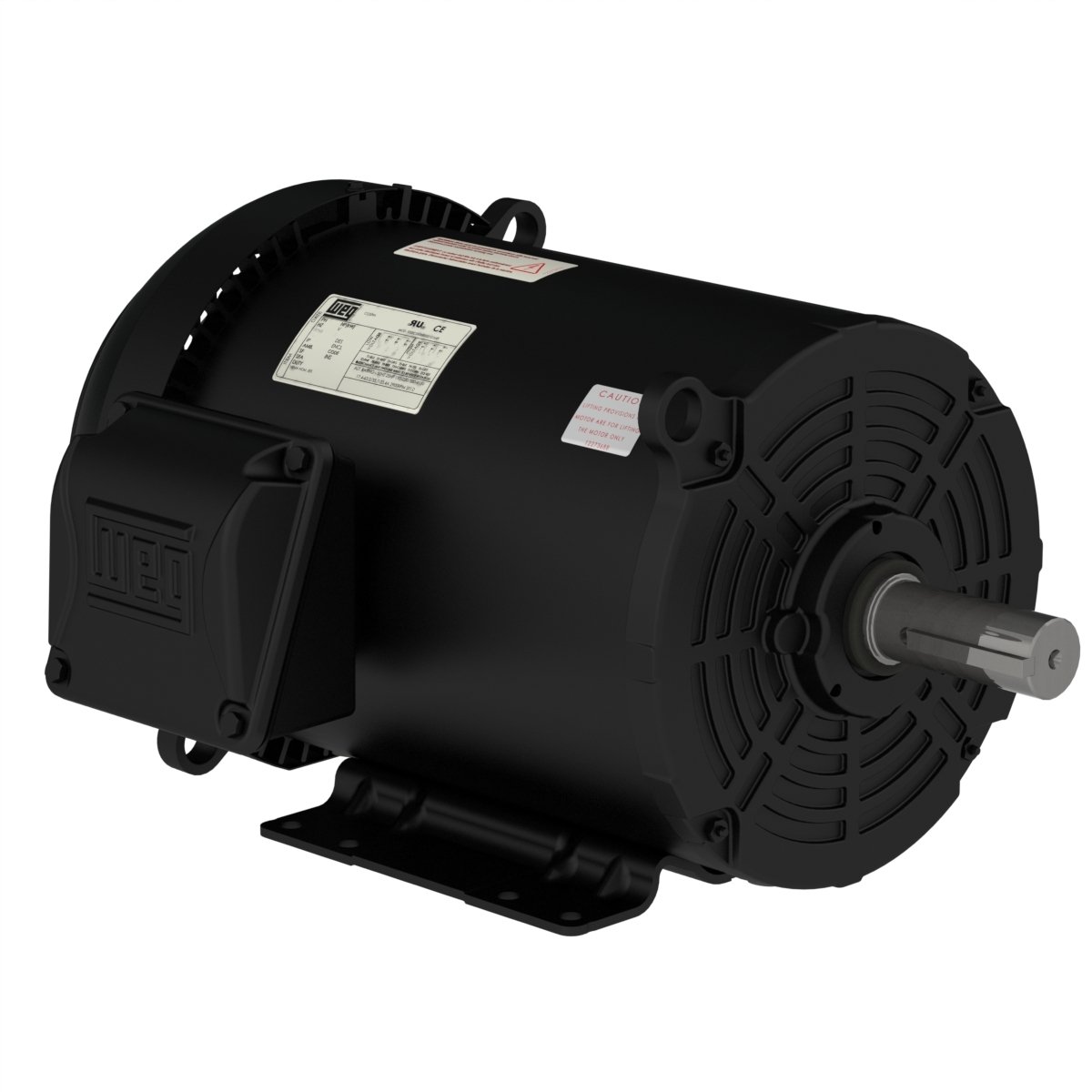

00736ET3E213T-SRT WEG 7.5HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ET3E213T-SRT

Selected accessories will also be added to cart

$808.50 / Each

Quantity:

IC411 - TEFC, IP55, 213T/215T Frame, 208-230/460VAC 3 Phase 50/60Hz, 13202800, Rolled Steel NEMA Premium Efficiency, Foot Mount, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3490 rpm
Slip	3.06 %
Rated voltage	208-230/460 V
Rated current	19.4-17.5/8.76 A
L. R. Amperes	140-126/63.1 A
LRC	7.2x(Code H)
No load current	0.000-6.40/3.20 A
Rated torque	11.1 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %

Locked rotor time	36s (cold) 20s (hot)
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	116 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.0	89.5

Power factor

50%	75%	100%
0.74	0.83	0.88

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
