/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JM Close-Coupled Pump/00736ET3E184JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM

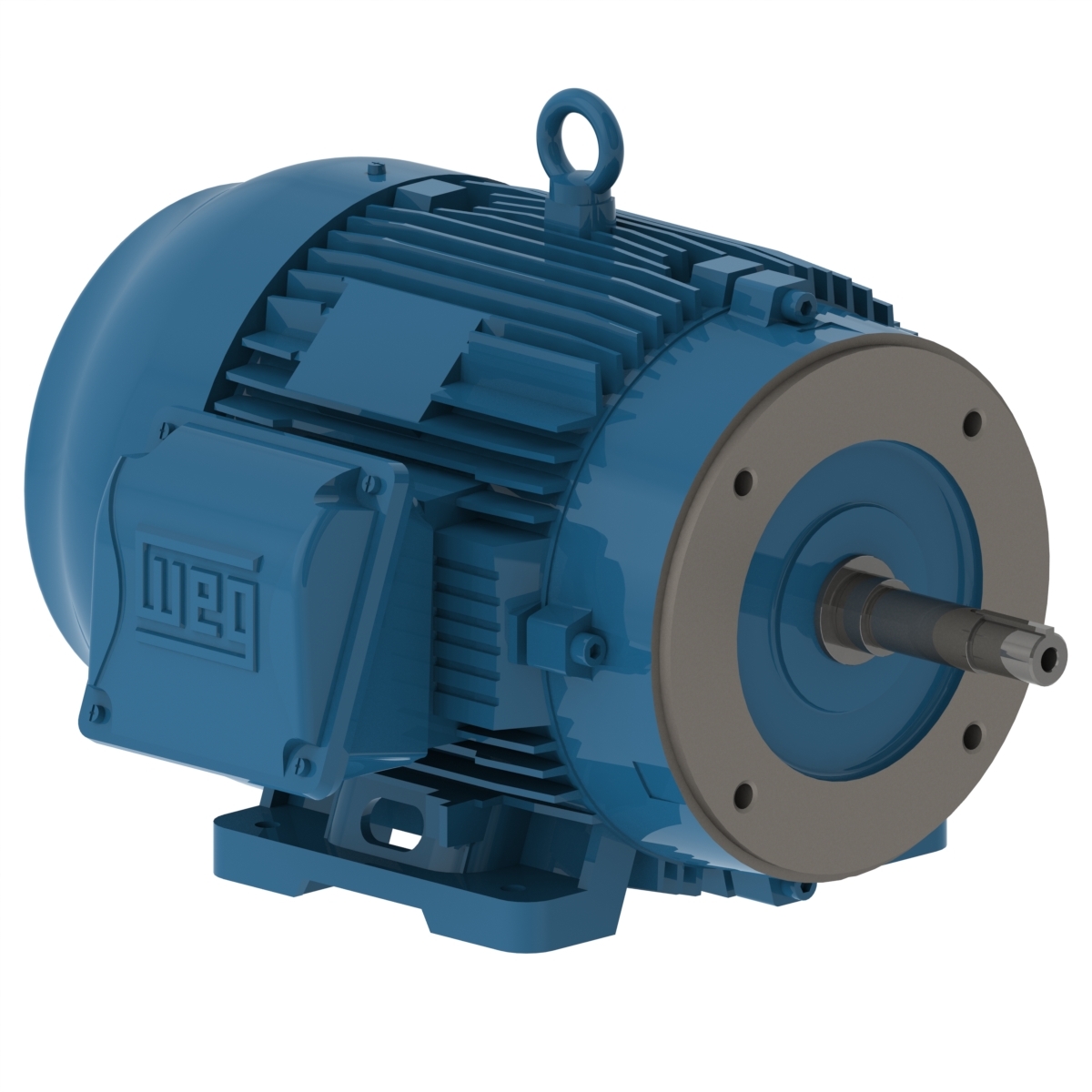

00736ET3E184JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00736ET3E184JM-W22

00736ET3E184JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ET3E184JM-W22

Selected accessories will also be added to cart
$984.75 / Each
Quantity:
IC411 - TEFC, 182JM/184JM Frame, 208-230/460V 3-Phase 60Hz, 13418946, Foot Mounted, Cast Iron Frame

Electric Motors

Frame 182/4JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 230/460 V
Rated current 17.5/8.76 A
L. R. Amperes 144/71.8 A
LRC 8.2x(Code J)
No load current 6.51/3.26 A
Rated torque 11.1 ft.lb
Locked rotor torque 270 %
Breakdown torque 330 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 99.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.75  0.84  0.88
Frame 182/4JM
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 7.84 A
L. R. Amperes 65.1 A
LRC 8.3x(Code J)
No load current 3.20 A
Rated torque 9.83 ft.lb
Locked rotor torque 310 %
Breakdown torque 360 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  87.0  88.1

Power factor

50% 75% 100%
0.70  0.82  0.88
Frame 182/4JM
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 7.68 A
L. R. Amperes 69.9 A
LRC 9.1x(Code K)
No load current 3.50 A
Rated torque 9.79 ft.lb
Locked rotor torque 350 %
Breakdown torque 390 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.9  87.6  88.1

Power factor

50% 75% 100%
0.66  0.79  0.86
Frame 182/4JM
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2915 rpm
Slip 2.83 %
Rated voltage 415 V
Rated current 7.53 A
L. R. Amperes 72.3 A
LRC 9.6x(Code L)
No load current 3.77 A
Rated torque 9.78 ft.lb
Locked rotor torque 370 %
Breakdown torque 430 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.2  88.1  88.7

Power factor

50% 75% 100%
0.63  0.77  0.84
Frame 182/4JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2850 rpm
Slip 5.00 %
Rated voltage 380 V
Rated current 10.5 A
L. R. Amperes 66.1 A
LRC 6.3x(Code G)
No load current 3.20 A
Rated torque 13.6 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.0  87.2  87.2

Power factor

50% 75% 100%
0.80  0.88  0.91
Frame 182/4JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2865 rpm
Slip 4.50 %
Rated voltage 400 V
Rated current 10.0 A
L. R. Amperes 70.0 A
LRC 7.0x(Code H)
No load current 3.50 A
Rated torque 13.6 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.0  88.0

Power factor

50% 75% 100%
0.77  0.86  0.90
Frame 182/4JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2875 rpm
Slip 4.17 %
Rated voltage 415 V
Rated current 9.82 A
L. R. Amperes 72.7 A
LRC 7.4x(Code H)
No load current 3.77 A
Rated torque 13.5 ft.lb
Locked rotor torque 270 %
Breakdown torque 310 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.0  88.5  88.5

Power factor

50% 75% 100%
0.74  0.84  0.88

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Mechanical Seal

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6307 ZZ   6206 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
222 lb  321 lb
