/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/P-Base/00736ET3E184HP-W22 WEG 7.5HP P-Base Pump Electric Motor, 3600RPM

Product ID: 00736ET3E184HP-W22

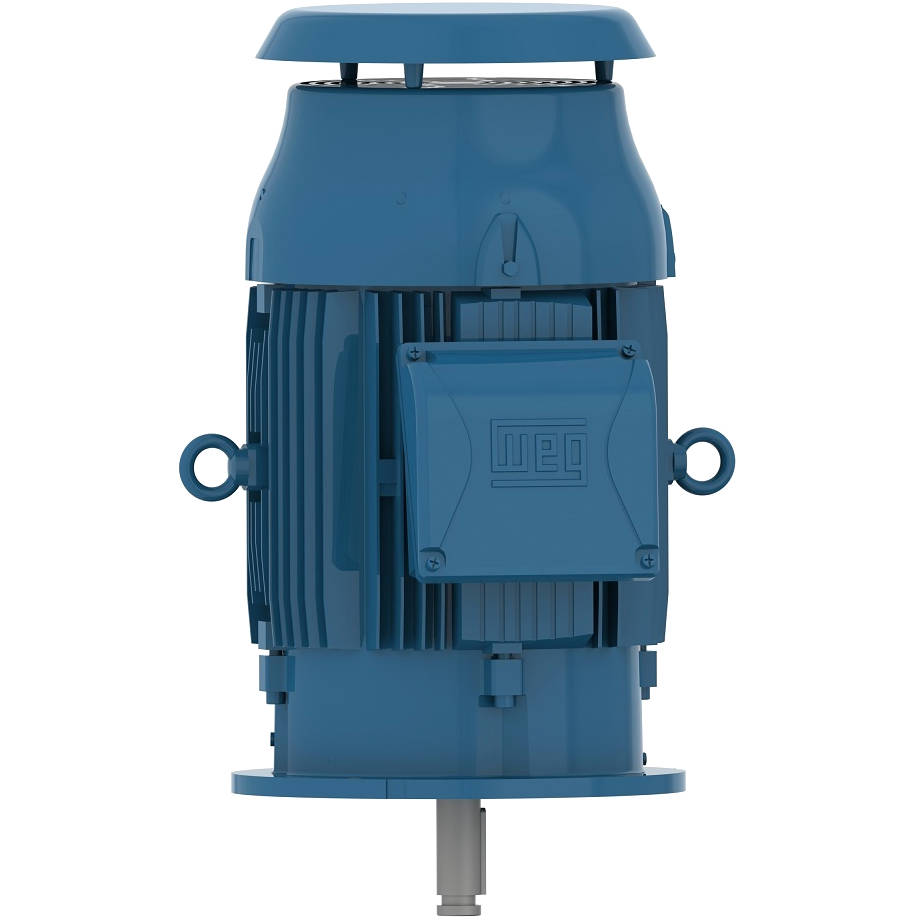

00736ET3E184HP-W22 WEG 7.5HP P-Base Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ET3E184HP-W22

Selected accessories will also be added to cart

$998.25 / Each

Quantity:

IC411 - TEFC, IP55, L184HP Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 13501988, NEMA Premium Efficiency, Footless, Cast Iron Frame, 1-1/8" Shaft

Details
Purchase Components

Electric Motors

Frame	L184HP
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3485 rpm
Slip	3.19 %
Rated voltage	230/460 V
Rated current	17.5/8.76 A
L. R. Amperes	144/71.8 A
LRC	8.2x(Code J)
No load current	5.80/2.90 A
Rated torque	11.3 ft.lb
Locked rotor torque	270 %
Breakdown torque	330 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.2242 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	92.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.75	0.84	0.88

Frame	L184HP
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	7.84 A
L. R. Amperes	65.1 A
LRC	8.3x(Code J)
No load current	2.70 A
Rated torque	9.96 ft.lb
Locked rotor torque	310 %
Breakdown torque	360 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.2242 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	92.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	87.0	88.1

Power factor

50%	75%	100%
0.70	0.82	0.88

Frame	L184HP
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	7.62 A
L. R. Amperes	69.3 A
LRC	9.1x(Code K)
No load current	3.00 A
Rated torque	9.93 ft.lb
Locked rotor torque	350 %
Breakdown torque	390 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.2242 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	92.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.9	87.6	88.1

Power factor

50%	75%	100%
0.66	0.79	0.86

Frame	L184HP
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2915 rpm
Slip	2.83 %
Rated voltage	415 V
Rated current	7.47 A
L. R. Amperes	71.7 A
LRC	9.6x(Code L)
No load current	3.20 A
Rated torque	9.91 ft.lb
Locked rotor torque	370 %
Breakdown torque	430 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.2242 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	92.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.2	88.1	88.7

Power factor

50%	75%	100%
0.63	0.77	0.84

Frame	L184HP
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2810 rpm
Slip	6.33 %
Rated voltage	380 V
Rated current	10.9 A
L. R. Amperes	68.7 A
LRC	6.3x(Code G)
No load current	2.70 A
Rated torque	14.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.2242 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	92.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.0	87.0	84.5

Power factor

50%	75%	100%
0.80	0.88	0.91

Frame	L184HP
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2840 rpm
Slip	5.33 %
Rated voltage	400 V
Rated current	10.3 A
L. R. Amperes	72.1 A
LRC	7.0x(Code H)
No load current	3.00 A
Rated torque	13.9 ft.lb
Locked rotor torque	250 %
Breakdown torque	280 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.2242 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	92.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.0	86.0

Power factor

50%	75%	100%
0.77	0.86	0.90

Frame	L184HP
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2860 rpm
Slip	4.67 %
Rated voltage	415 V
Rated current	10.0 A
L. R. Amperes	74.0 A
LRC	7.4x(Code H)
No load current	3.20 A
Rated torque	13.8 ft.lb
Locked rotor torque	270 %
Breakdown torque	310 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.2242 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	92.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.0	88.5	87.0

Power factor

50%	75%	100%
0.74	0.84	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
