/Products/Electric Motors/Single Phase/WEG/General Purpose, TEFC, W22/00736ES1E213TC-W22 WEG 7.5HP Electric Motor, 3600RPM

Product ID: 00736ES1E213TC-W22

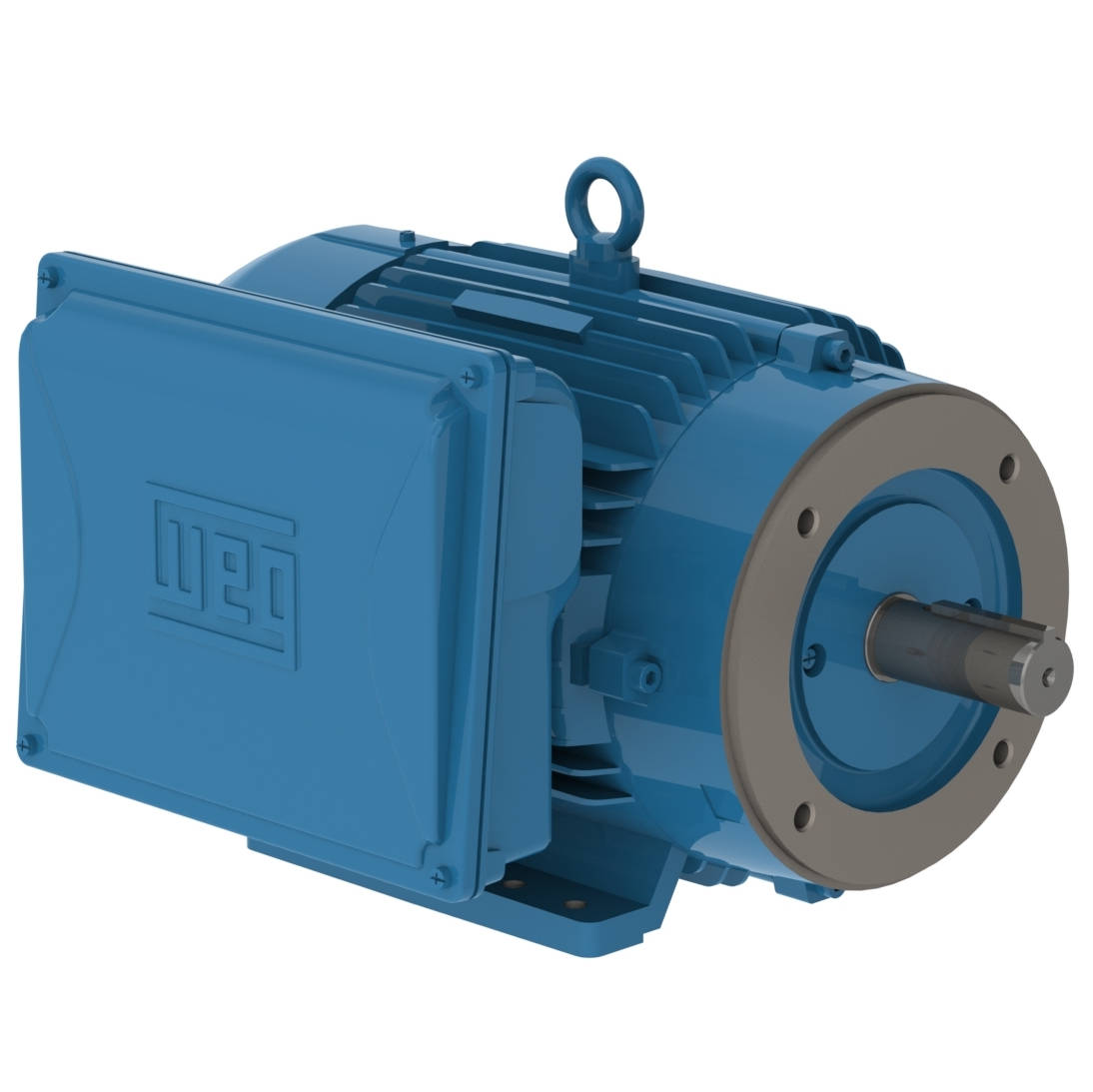

00736ES1E213TC-W22 WEG 7.5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ES1E213TC-W22

Selected accessories will also be added to cart

$1,198.50 / Each

Quantity:

IC411 - TEFC, IP55, 213TC/215TC Frame, 208-230/460VAC 60Hz Single Phase, 14121679, Foot Mounted, C-Face, Cast Iron Frame, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	208-230/460 V
Rated current	30.5-28.2/14.1 A
L. R. Amperes	220-203/102 A
LRC	7.2x(Code G)
No load current	5.69-6.60/3.30 A
Rated torque	11.2 ft.lb
Locked rotor torque	280 %
Breakdown torque	290 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.5550 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	165 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.5	84.0	85.5

Power factor

50%	75%	100%
0.99	0.99	0.99

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
