/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount/00718ET3H213T-S WEG 7.5HP General Purpose Electric Motor, 1800RPM

Product ID: 00718ET3H213T-S

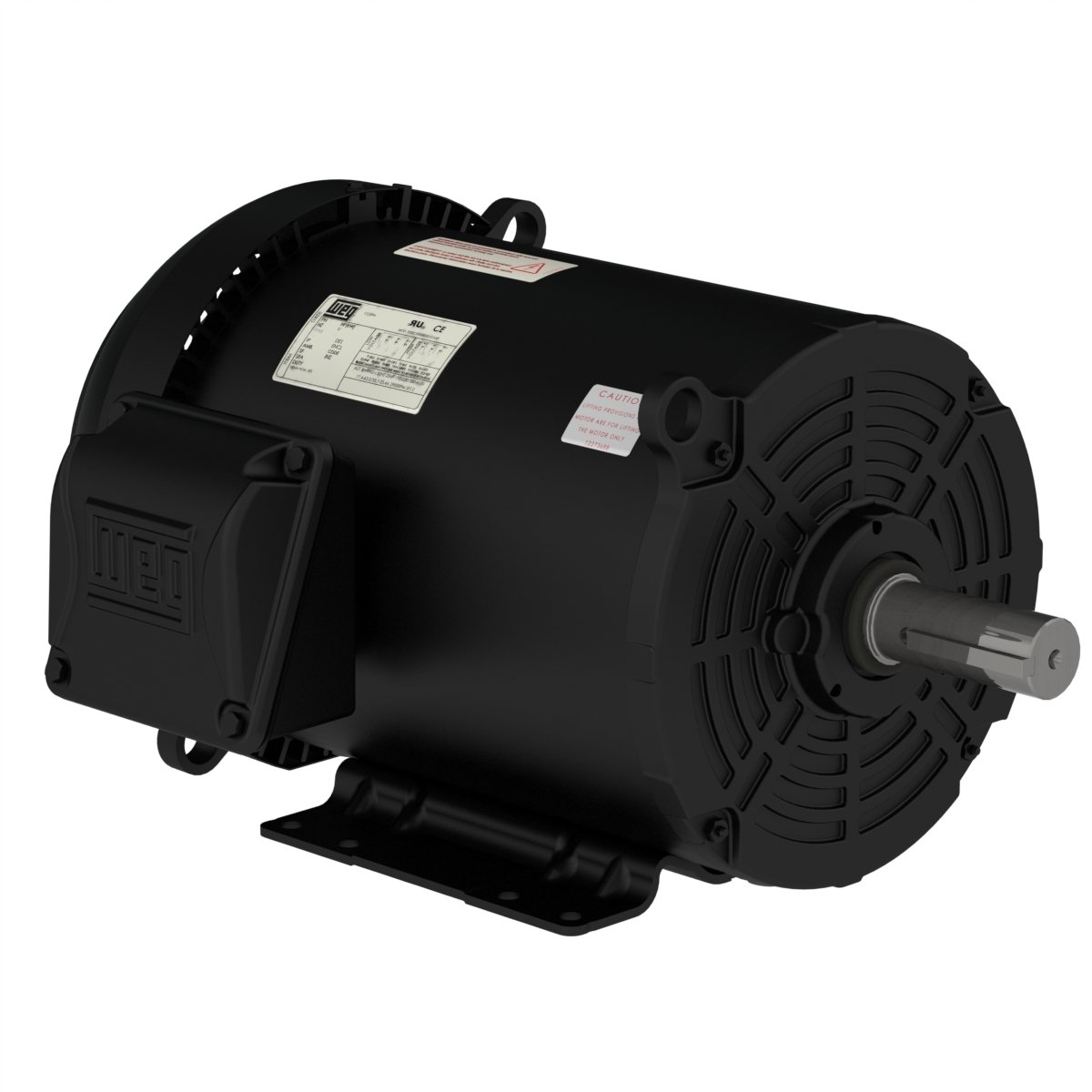

00718ET3H213T-S WEG 7.5HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718ET3H213T-S

Selected accessories will also be added to cart

$711.00 / Each

Quantity:

IC411 - TEFC, IP55, 213T/215T Frame, 575VAC 3-Phase 60Hz, 12675406, Foot Mount, Rolled Steel, NEMA Premium Efficiency, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	575 V
Rated current	7.26 A
L. R. Amperes	53.0 A
LRC	7.3x(Code H)
No load current	3.52 A
Rated torque	22.0 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.9380 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	120 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.7

Power factor

50%	75%	100%
0.64	0.76	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
