/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount, C-Face/00712OT3E254TC-W40 WEG 7.5HP, General Purpose Electric Motor, 1200RPM

Product ID: 00712OT3E254TC-W40

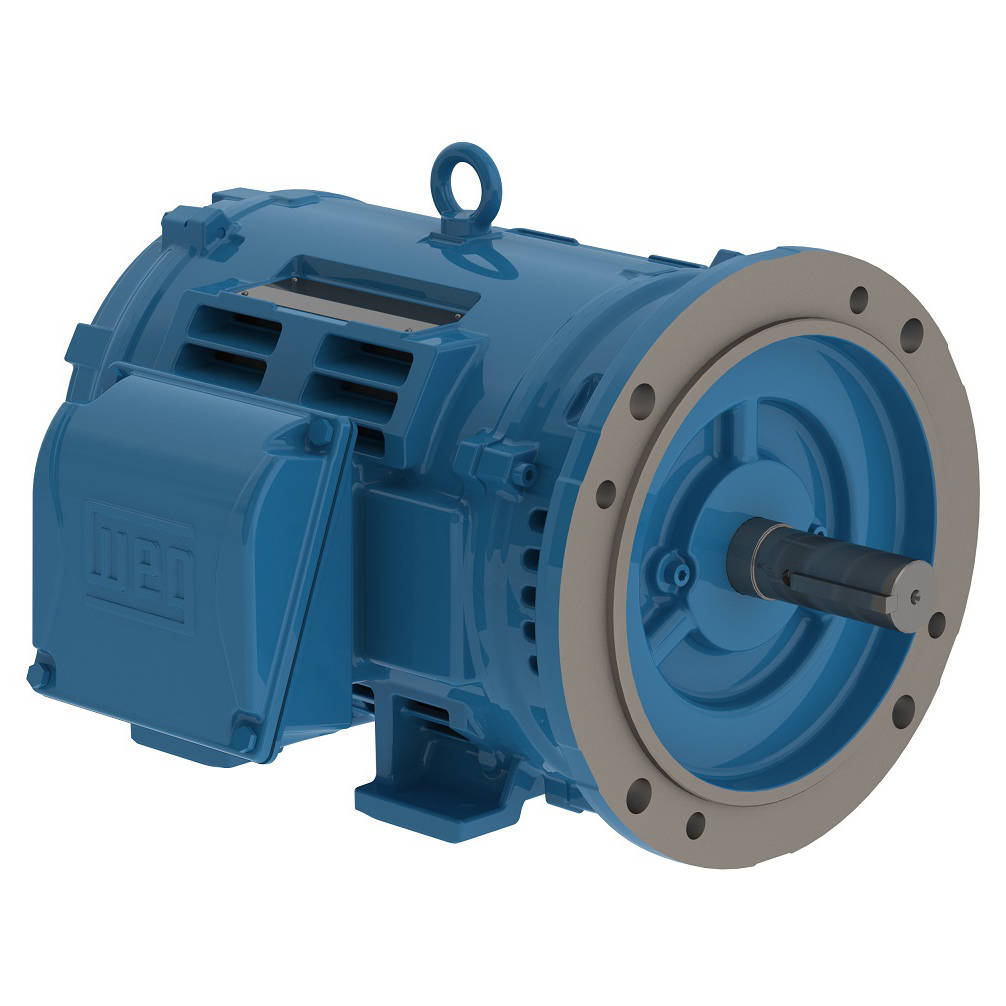

00712OT3E254TC-W40 WEG 7.5HP, General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00712OT3E254TC-W40

Selected accessories will also be added to cart

$1,151.25 / Each

Quantity:

IC01 - ODP, IP23, 254TC Frame, 230/460/380VAC 50/60Hz 3 Phase, 14494121, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	254TC
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1180 rpm
Slip	1.67 %
Rated voltage	230/460 V
Rated current	19.9/9.94 A
L. R. Amperes	133/66.6 A
LRC	6.7x(Code H)
No load current	10.8/5.40 A
Rated torque	33.4 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	2.29 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	247 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	89.5	90.2

Power factor

50%	75%	100%
0.58	0.70	0.77

Frame	254TC
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	380 V
Rated current	11.4 A
L. R. Amperes	67.3 A
LRC	5.9x(Code G)
No load current	5.30 A
Rated torque	40.4 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	2.29 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	247 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.6	88.0	88.0

Power factor

50%	75%	100%
0.65	0.77	0.83

Frame	254TC
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	400 V
Rated current	11.1 A
L. R. Amperes	71.0 A
LRC	6.4x(Code H)
No load current	5.80 A
Rated torque	40.4 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	2.29 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	247 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.9	88.0	88.0

Power factor

50%	75%	100%
0.61	0.74	0.81

Frame	254TC
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	11.0 A
L. R. Amperes	74.8 A
LRC	6.8x(Code J)
No load current	6.10 A
Rated torque	40.2 ft.lb
Locked rotor torque	229 %
Breakdown torque	290 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	2.29 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	247 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.3	88.0	88.0

Power factor

50%	75%	100%
0.58	0.71	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector

Bearing details

	Drive End	Non Drive End
Bearing type	6309 Z C3	6209 Z C3
Sealing	Sem vedação	Without Bearing Seal
Lubrication interval	20000 h	20000 h
Lubricant amount	13 g	9 g
Grease Type	Mobil Polyrex EM
