/Products/Electric Motors/Single Phase/WEG/General Purpose, TEFC, W22/JM Close-Coupled Pump/00536ES1E184JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM

Product ID: 00536ES1E184JM-W22

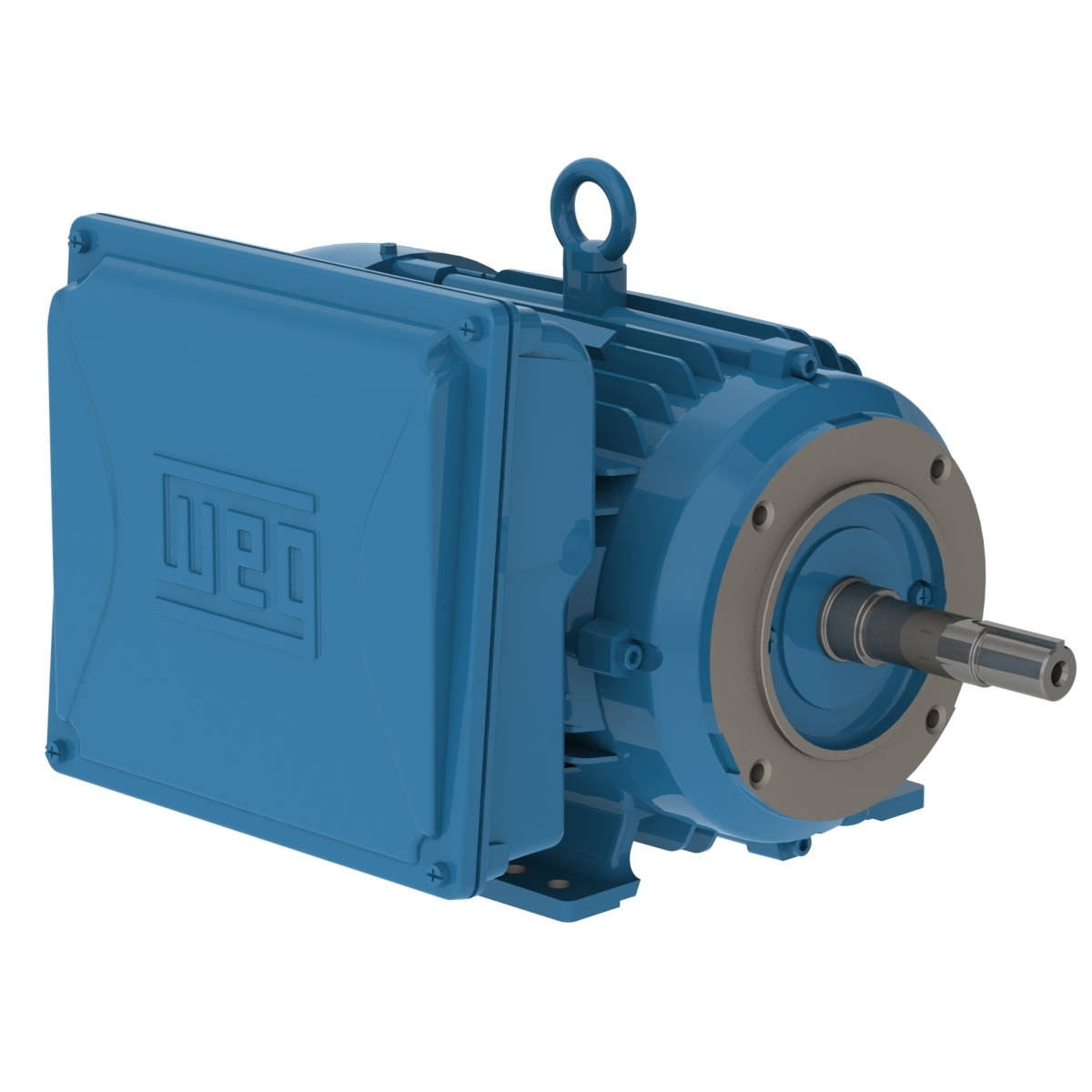

00536ES1E184JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536ES1E184JM-W22

Selected accessories will also be added to cart

$1,092.75 / Each

Quantity:

IC411 - TEFC, IP55, 182JM/184JM Frame, 208-230VAC 60Hz Single Phase, 14092593, Foot Mounted, C-Face, Cast Iron Frame

Details
Purchase Components

Frame	182/4JM
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3515 rpm
Slip	2.36 %
Rated voltage	208-230/460 V
Rated current	20.5-19.0/9.50 A
L. R. Amperes	146-135/67.5 A
LRC	7.1x(Code G)
No load current	3.36-3.90/1.95 A
Rated torque	7.47 ft.lb
Locked rotor torque	280 %
Breakdown torque	250 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.2164 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	CCW
Noise level²	72.0 dB(A)
Approx. weight³	110 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
