/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount/00318ET3E182T-S WEG 3HP General Purpose Electric Motor, 1800RPM

Product ID: 00318ET3E182T-S

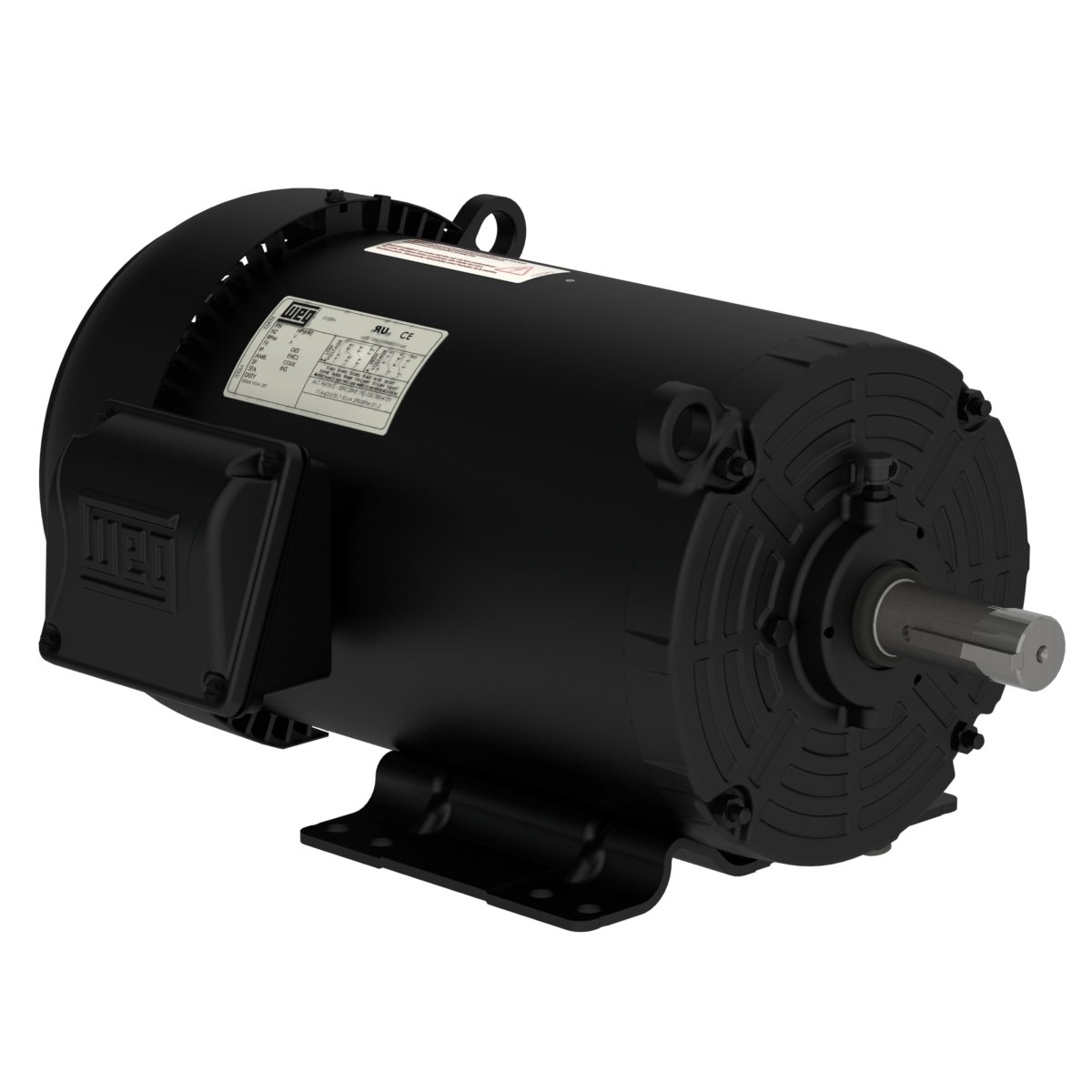

00318ET3E182T-S WEG 3HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318ET3E182T-S

Selected accessories will also be added to cart

$432.75 / Each

Quantity:

IC411 - TEFC, 182T/184T Frame, 208-230/460VAC 3 Phase 50/60Hz, 12675402, Rolled Steel NEMA Premium Efficiency, Foot Mount, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	208-230/460 V
Rated current	8.43-7.62/3.81 A
L. R. Amperes	74.1-67.1/33.5 A
LRC	8.8x(Code K)
No load current	3.45-4.00/2.00 A
Rated torque	8.81 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.4017 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	83.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	89.5

Power factor

50%	75%	100%
0.61	0.74	0.81

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	190/380 V
Rated current	9.08/4.54 A
L. R. Amperes	60.8/30.4 A
LRC	6.7x(Code H)
No load current	3.95/1.97 A
Rated torque	10.7 ft.lb
Locked rotor torque	170 %
Breakdown torque	260 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.4017 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	83.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.7	86.7

Power factor

50%	75%	100%
0.68	0.79	0.85

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	220/415 V
Rated current	8.15/4.32 A
L. R. Amperes	65.2/34.6 A
LRC	8.0x(Code K)
No load current	4.22/2.23 A
Rated torque	10.6 ft.lb
Locked rotor torque	220 %
Breakdown torque	320 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.4017 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	83.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.9	88.0	87.4

Power factor

50%	75%	100%
0.62	0.74	0.81

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
