/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/C-Face, Foot Mount/00312OT3H213TC-S WEG 3HP General Purpose Electric Motor, 1200RPM

Product ID: 00312OT3H213TC-S

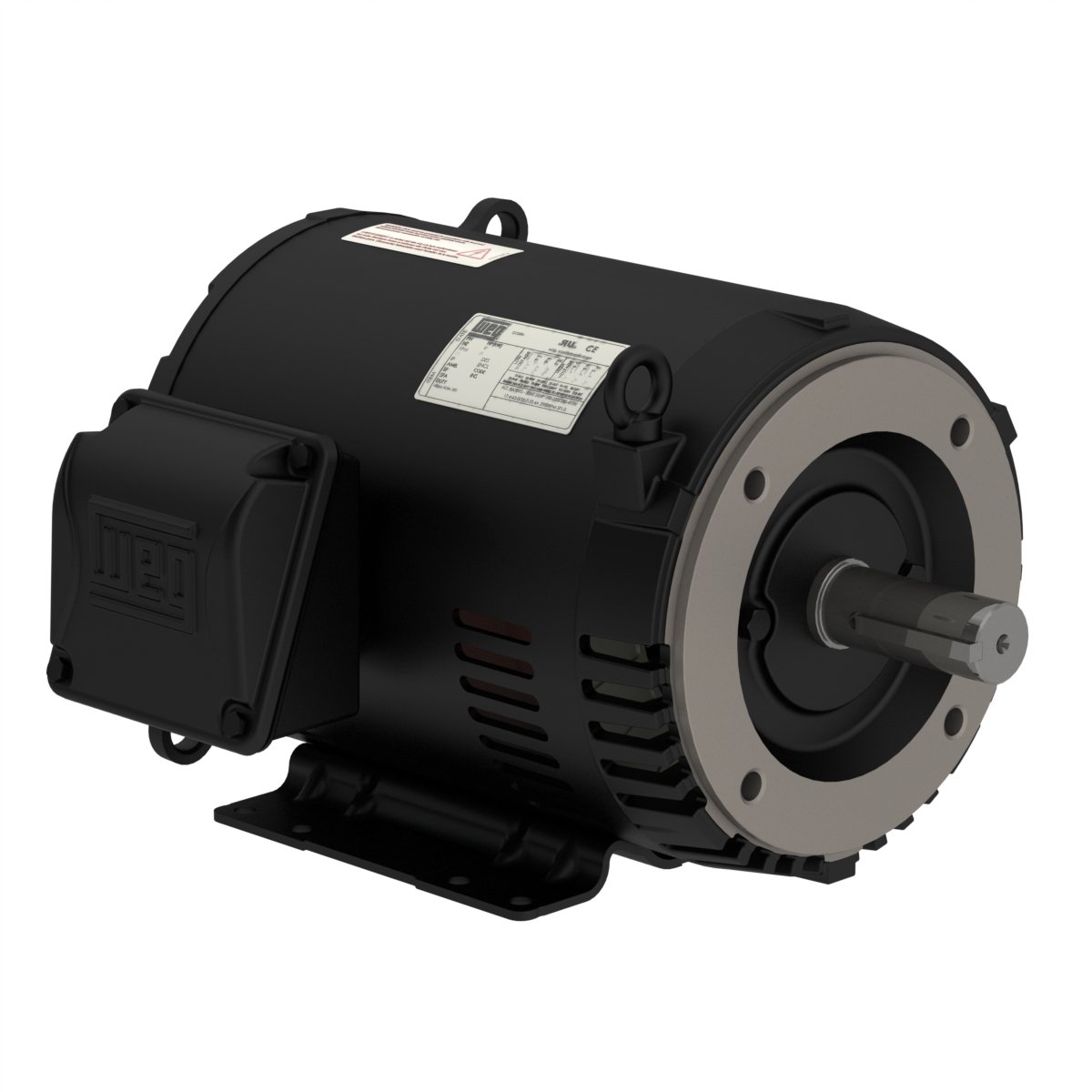

00312OT3H213TC-S WEG 3HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00312OT3H213TC-S

Selected accessories will also be added to cart

$619.50 / Each

Quantity:

IC01 - ODP, 213TC/215TC Frame, 575VAC 3-Phase 60Hz, 12674857, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5TC
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	575 V
Rated current	3.33 A
L. R. Amperes	19.6 A
LRC	5.9x(Code H)
No load current	1.83 A
Rated torque	13.2 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	70s (cold) 39s (hot)

Moment of inertia (J)	0.8104 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	98.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	88.5

Power factor

50%	75%	100%
0.56	0.68	0.75

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
