/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount, C-Face/00309ST3QIE215TC-W22 WEG 3HP Severe Duty Electric Motor, 900RPM

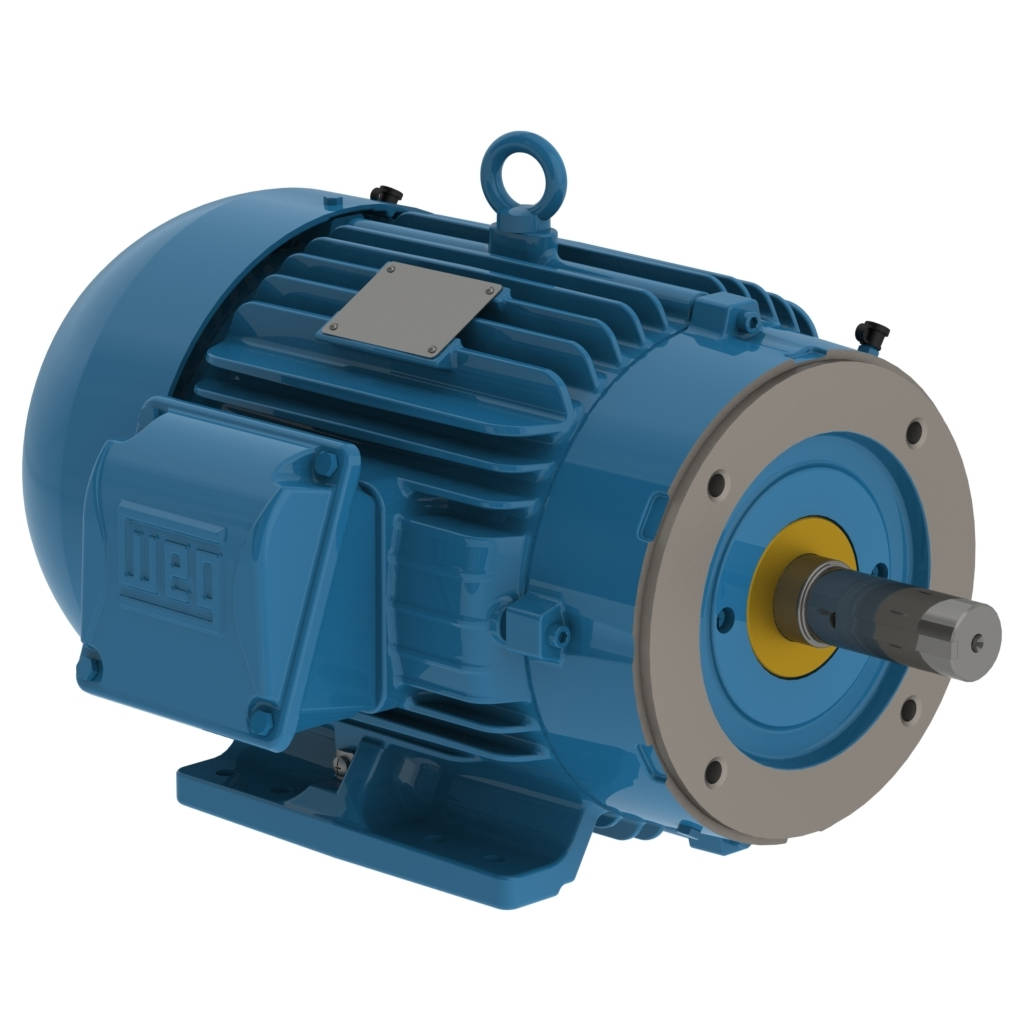

00309ST3QIE215TC-W22 WEG 3HP Severe Duty Electric Motor, 900RPM
Enlarge Photo

00309ST3QIE215TC-W22 WEG 3HP Severe Duty Electric Motor, 900RPM

Product ID: 00309ST3QIE215TC-W22

MFG: WEG Electric Corporation
MFG Part Number: 00309ST3QIE215TC-W22

Selected accessories will also be added to cart
$2,222.25 / Each
Quantity:
IC411 - TEFC, IP55, 213TC/215TC Frame, 460VAC 60Hz 3 Phase, 14022422, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, IEEE 841, 1-3/8" Keyed Shaft

Electric Motors

Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 870 rpm
Slip 3.33 %
Rated voltage 460 V
Rated current 4.55 A
L. R. Amperes 30.9 A
LRC 6.8x(Code K)
No load current 2.71 A
Rated torque 18.1 ft.lb
Locked rotor torque 229 %
Breakdown torque 275 %
Locked rotor time 79s (cold) 44s (hot)
Moment of inertia (J) 2.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 196 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  85.5  85.5

Power factor

50% 75% 100%
0.50  0.63  0.71
Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 710 rpm
Slip 5.33 %
Rated voltage 380 V
Rated current 5.33 A
L. R. Amperes 28.2 A
LRC 5.3x(Code G)
No load current 2.68 A
Rated torque 22.2 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 2.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 196 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.0  82.5

Power factor

50% 75% 100%
0.57  0.70  0.76
Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 715 rpm
Slip 4.67 %
Rated voltage 400 V
Rated current 5.20 A
L. R. Amperes 31.2 A
LRC 6.0x(Code J)
No load current 2.86 A
Rated torque 22.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 2.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 196 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.0  82.5

Power factor

50% 75% 100%
0.54  0.67  0.74
Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 720 rpm
Slip 4.00 %
Rated voltage 415 V
Rated current 5.06 A
L. R. Amperes 32.9 A
LRC 6.5x(Code J)
No load current 3.00 A
Rated torque 21.9 ft.lb
Locked rotor torque 260 %
Breakdown torque 270 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 2.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 196 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  84.0  84.0

Power factor

50% 75% 100%
0.51  0.64  0.72

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System Stainless Steel, at Drive end and Non-drive end
Main terminal box hole NPT 1"
Terminal Block Without
Drain Type T, Threaded
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type 6308 C3  6207 C3
Sealing Inpro/Seal  Inpro/Seal
Lubrication interval 20000 h  20000 h
Lubricant amount 11 g  7 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
235 lb  431 lb
