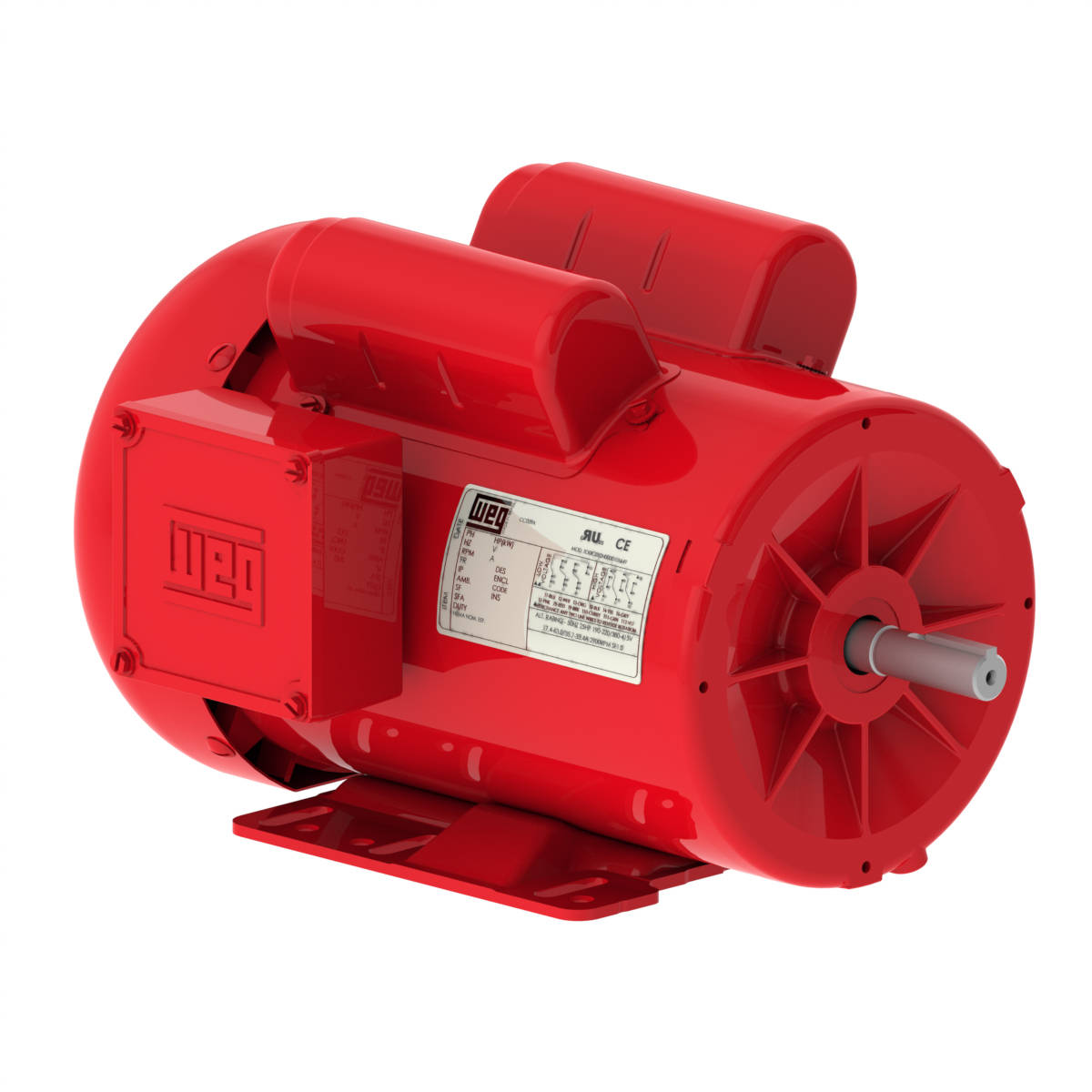

00218ES1BFD145T WEG 2HP Farm Duty Electric Motor, 1750RPM
Enlarge Photo

00218ES1BFD145T WEG 2HP Farm Duty Electric Motor, 1750RPM

Product ID: 00218ES1BFD145T

MFG: WEG Electric Corporation
MFG Part Number: 00218ES1BFD145T

Selected accessories will also be added to cart
$434.25 / Each
Quantity:
IC411 - TEFC, G145T, 115/208-230V, 60 Hz, Single Phase

Electric Motors

Frame G145T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 21.0/10.8-10.5 A
L. R. Amperes 145/74.5-72.5 A
LRC 6.9x(Code K)
No load current 12.4/5.35-6.20 A
Rated torque 5.92 ft.lb
Locked rotor torque 280 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.2133 sq.ft.lb
Insulation Class B
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 54.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
74.0  78.0  78.1

Power factor

50% 75% 100%
0.60  0.71  0.78

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xNPT 3/4"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 207N (ISO 12944 - C3)


Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 ZZ   6203 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
118 lb  173 lb
