/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/00158ET3H56C-S WEG 1.5HP General Purpose Electric Motor, 1800RPM

Product ID: 00158ET3H56C-S

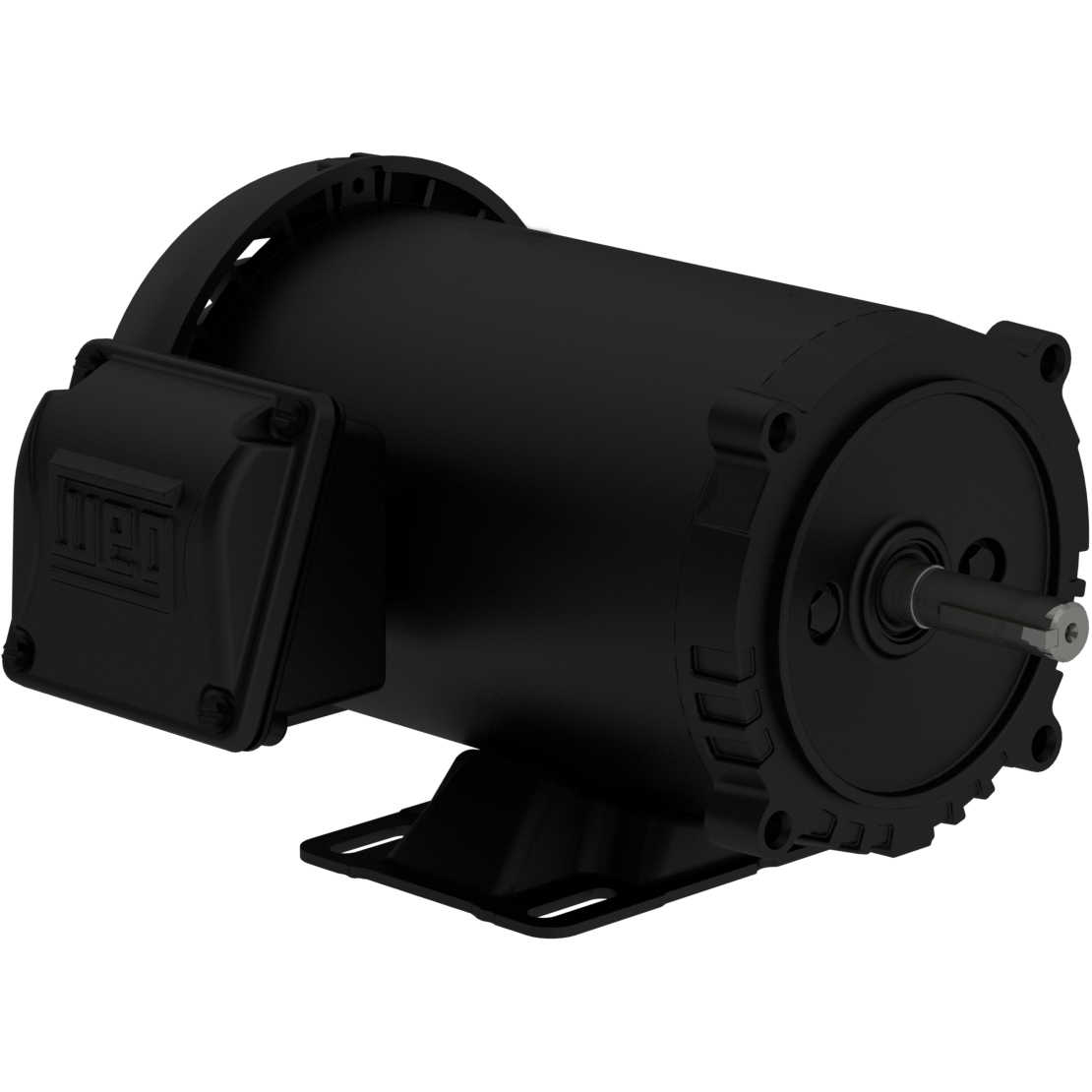

00158ET3H56C-S WEG 1.5HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ET3H56C-S

Selected accessories will also be added to cart

$347.25 / Each

Quantity:

IC411 - TEFC, IP55, 56HC Frame, 575VAC 60Hz 3 Phase, 14799005, C-Face, Foot Mounted, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56HC
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	575 V
Rated current	1.62 A
L. R. Amperes	13.3 A
LRC	8.2x(Code K)
No load current	0.867 A
Rated torque	4.50 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	0.1101 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	38.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	86.5

Power factor

50%	75%	100%
0.59	0.72	0.79

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
