/Products/Electric Motors/3 Phase/Leeson/TEFC, Rigid Base/110034.00 Leeson 3/4HP General Purpose Electric Motor, 1725RPM

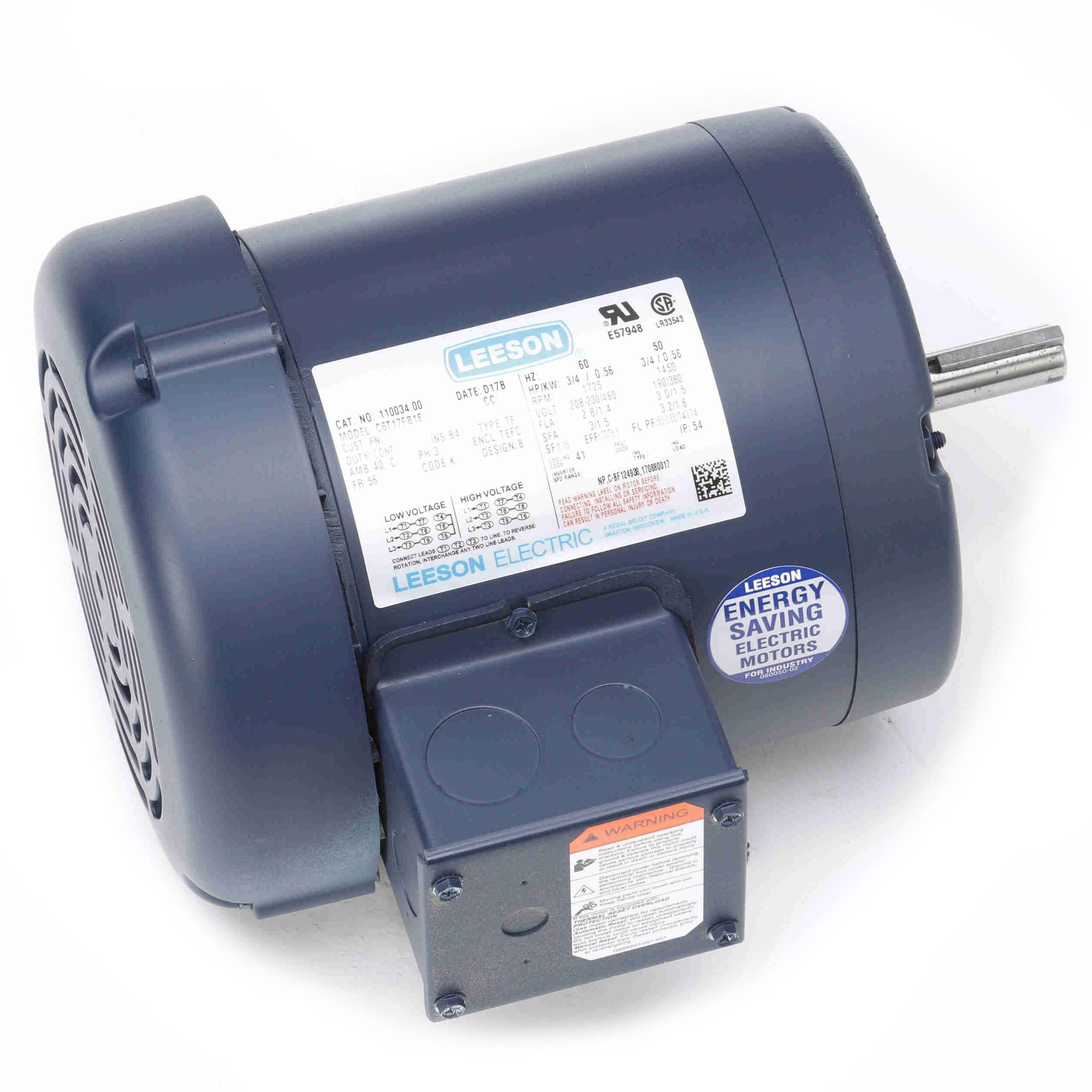

Click Image to Expand

Product ID: 110034.00

110034.00 Leeson 3/4HP General Purpose Electric Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110034.00

Selected accessories will also be added to cart
$424.97 / Each
Quantity:
TEFC, 56 Frame, 208-230/460VAC 3-Phase 60Hz, C6T17FB1E, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Standard, EPAct efficient ratings
  • Inverter-rated; Continuous duty
  • Class B insulation systems – 42, 48 and 56 frames
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards; UL recognized and CSA certified

General Specifications

General Specifications
Model : C6T17FB1E Catalog No : 110034.00
Part Description : 3/4HP..1725RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C6T17FB1E Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.75 HP Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 2.8/1.4 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 77 % Duty : Continuous
Insulation Class : B Design Code : B
KVA Code : K Frame : 56
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 54

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 10.48 in Frame Length : 5.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720007525
Weight : 25.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 8.10 106.00 294.0 0 0.75
Full Load 1.40 36.00 100.0 1,746 0.75
Pull-Up 0.00 103.00 286.0 0 0.75
Break-Down 0.00 134.00 372.0 0 0.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.10
  • 0.114
  • 0.0
  • 13.0
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 1.14
  • 0.260
  • 54.9
  • 28.6
  • 1,787
  • 0.0
  • 9.00
  • 50 %
  • 1.19
  • 0.403
  • 70.4
  • 42.5
  • 1,774
  • 0.0
  • 18.00
  • 75 %
  • 1.28
  • 0.558
  • 75.6
  • 54.7
  • 1,760
  • 0.0
  • 27.00
  • 100 %
  • 1.39
  • 0.721
  • 77.4
  • 65.1
  • 1,746
  • 60.0
  • 36.00
  • 125 %
  • 1.56
  • 0.871
  • 79.4
  • 70.1
  • 1,730
  • 0.0
  • 45.00
  • 150 %
  • 1.77
  • 1.076
  • 76.3
  • 76.3
  • 1,711
  • 0.0
  • 54.00
