Product ID: HV071A

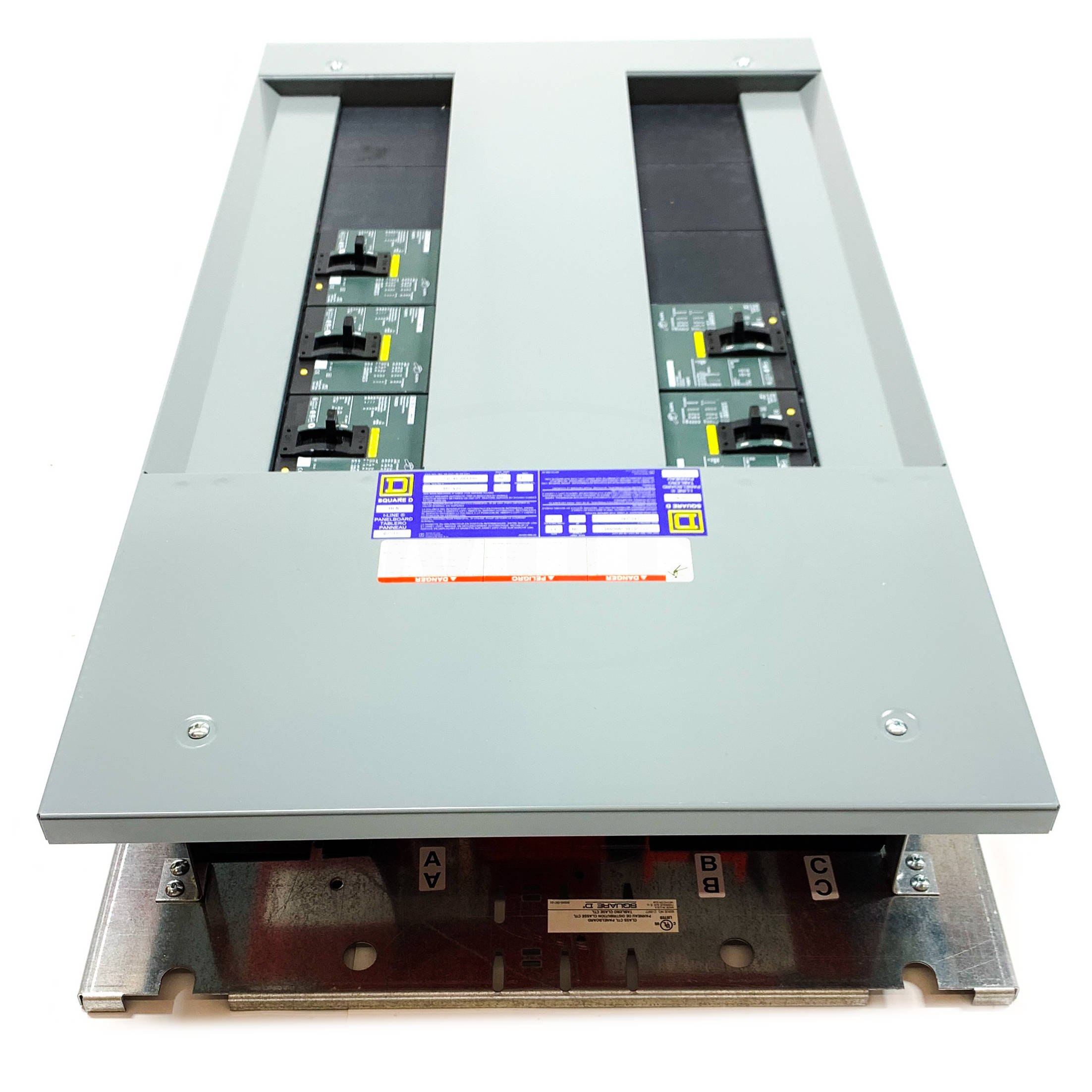

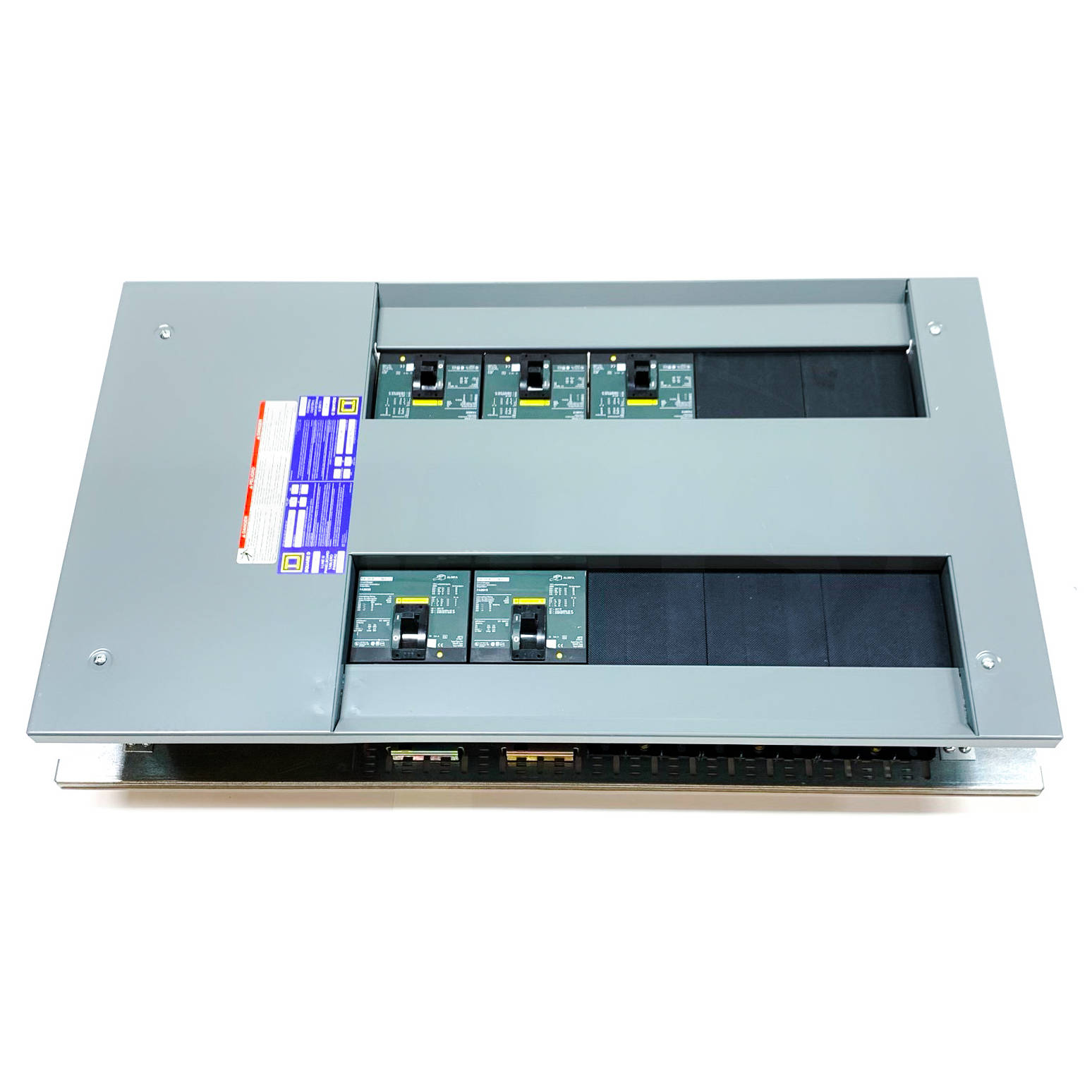

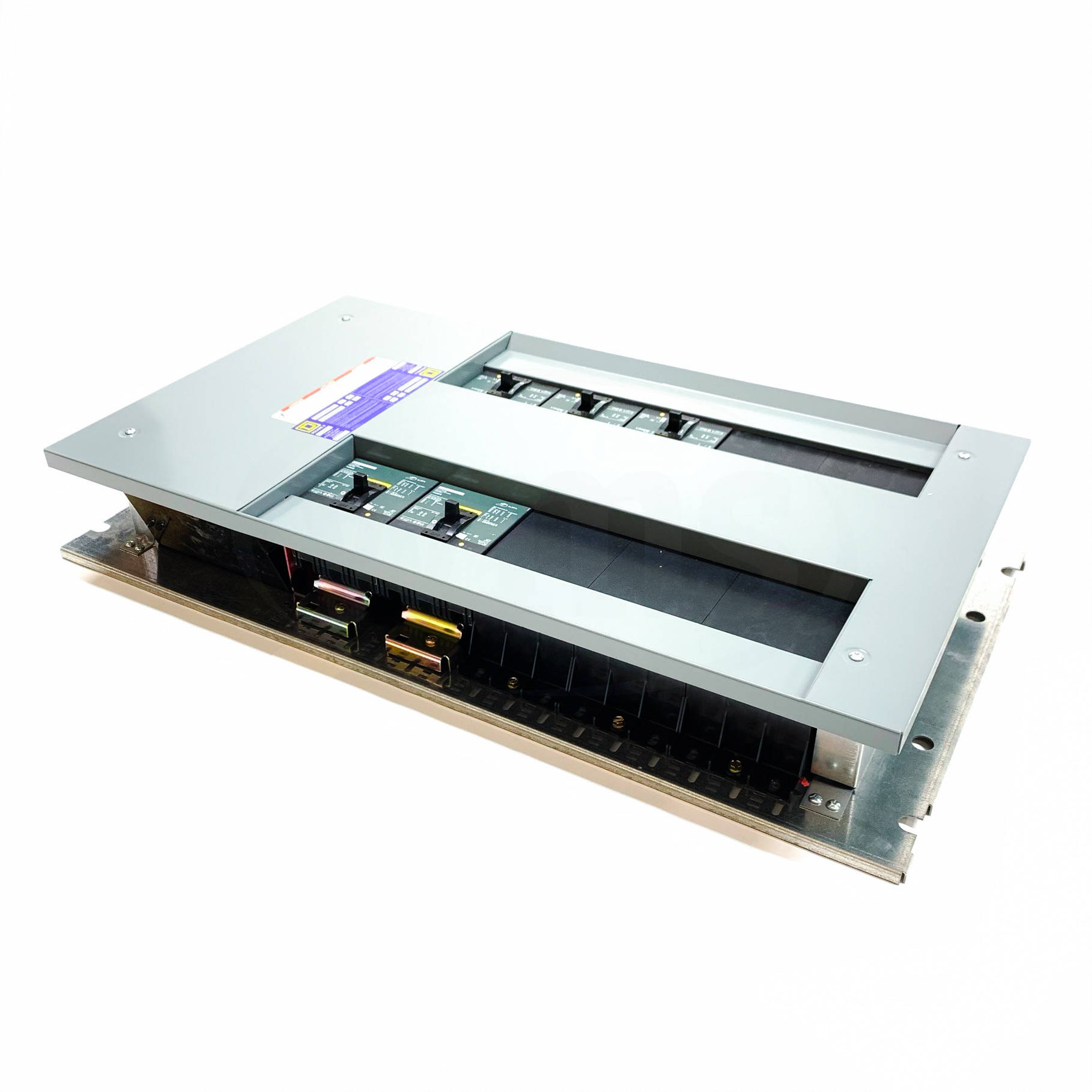

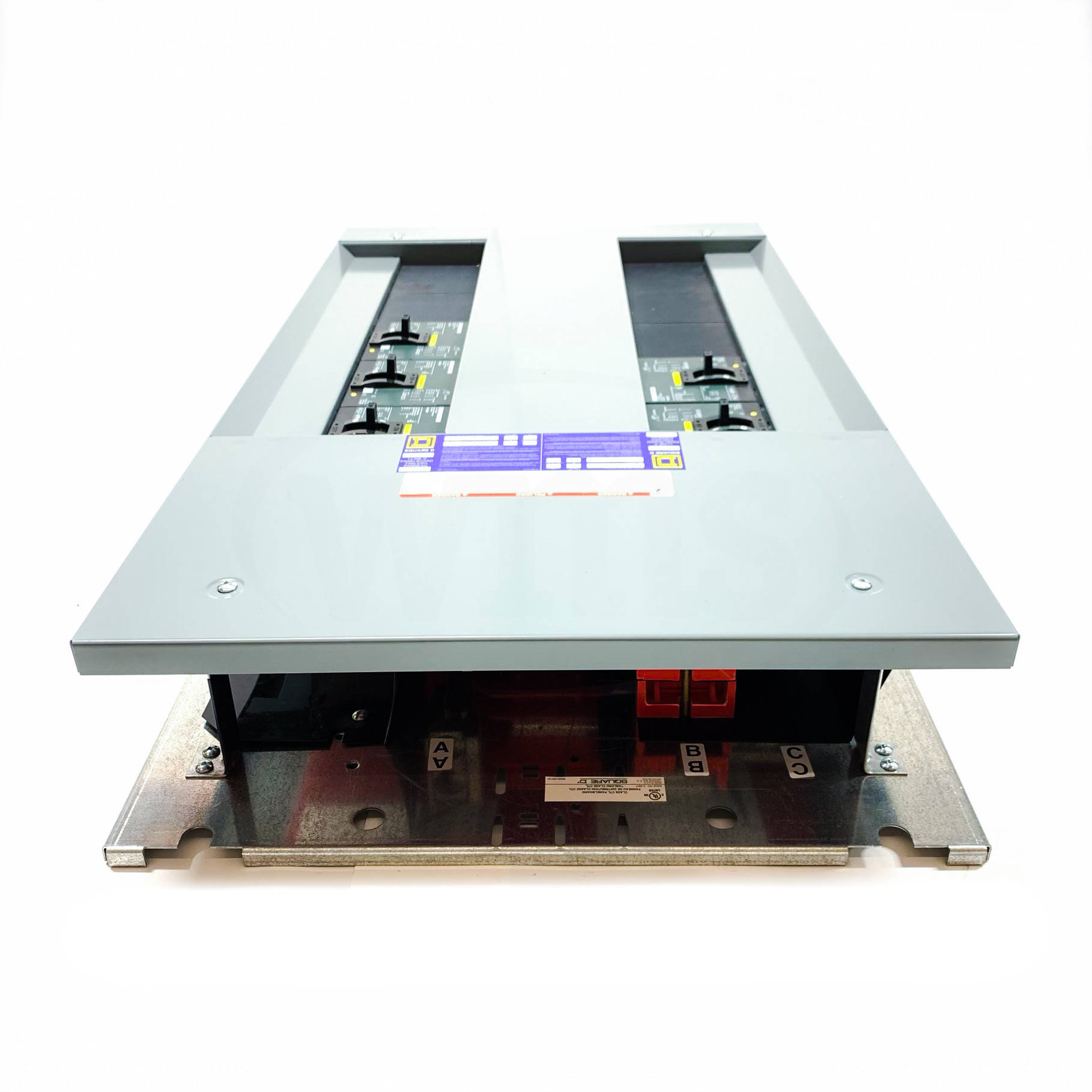

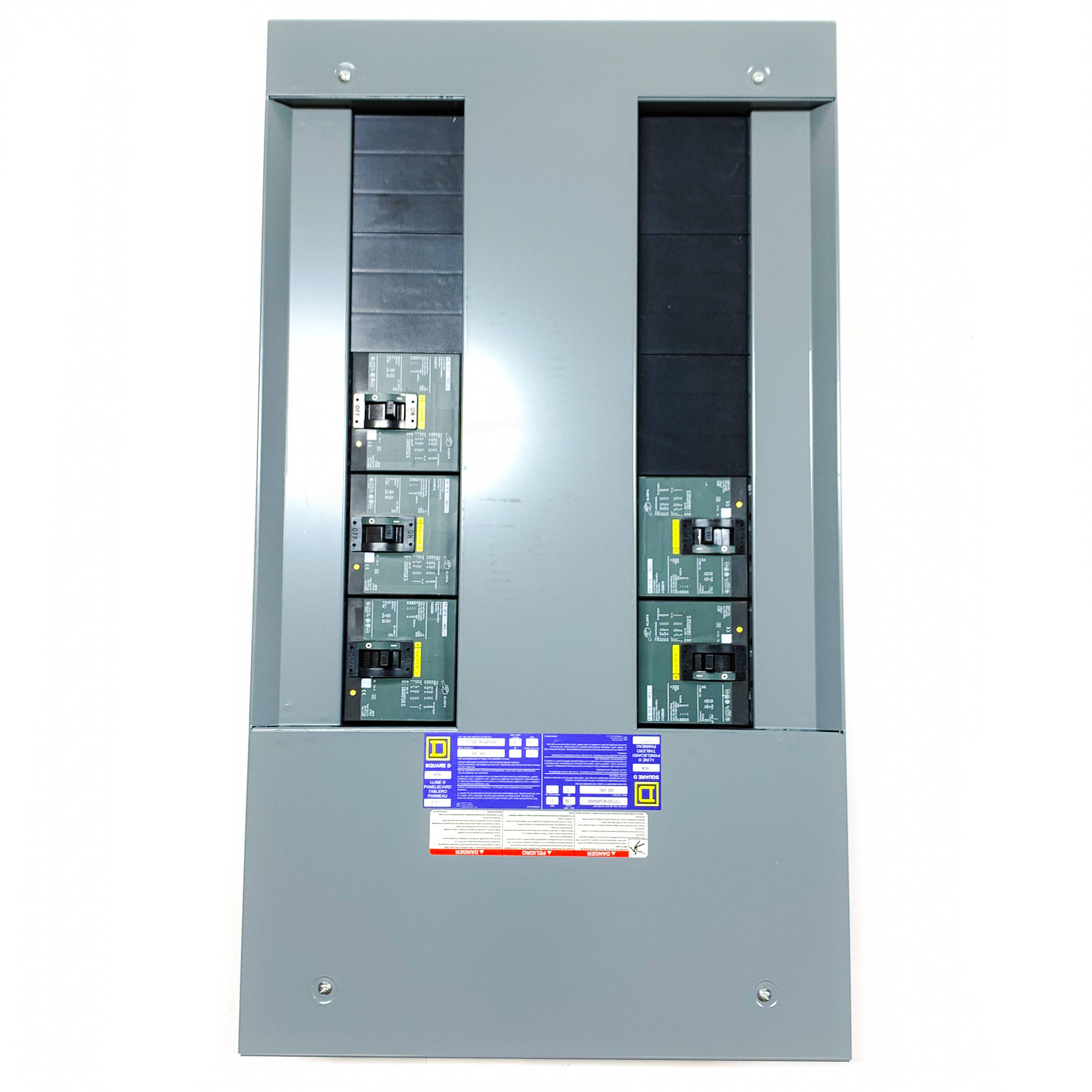

HV071A Square D I-Line Electrical Panel, 480VAC 3-Phase 60Hz

MFG: Schneider Electric (Square D)
MFG Part Number: HV071A

Available Stock: 1
Selected accessories will also be added to cart
$6,949.97 / Each
Quantity:
New, Surplus Stock. 100A, 2x20A + 3x15A Circuit Breaker
HV071A Square D I-Line Electrical Panel

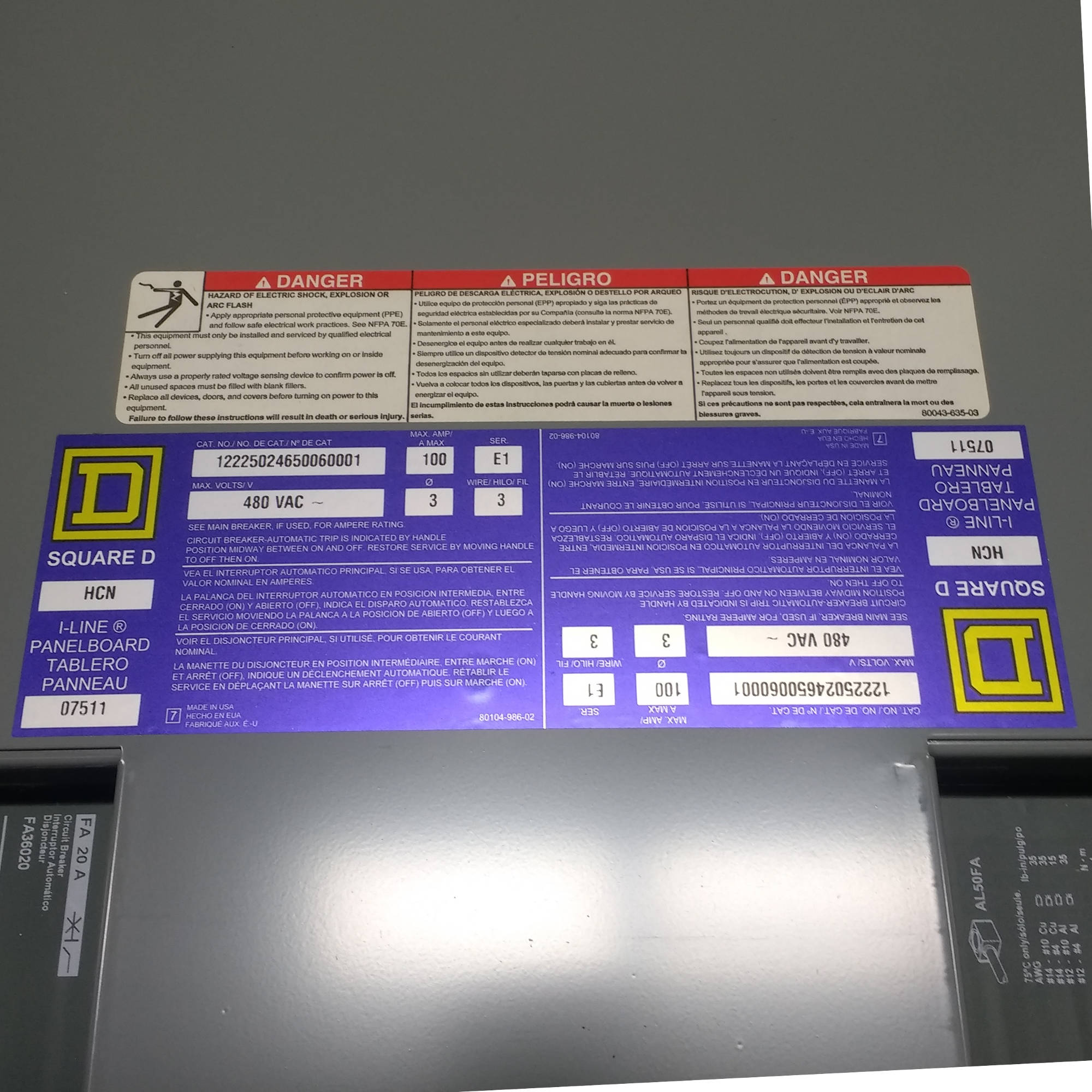

System:
480VAC 3-Phase 3-Wire 60Hz
14,000 Amps Syms. SCCR
Main:
Main Lugs: 100 Amps
Top Feed
14K AIC
Incoming Conductors per Phase #6-300kcmil Al/Cu
Enclosure:
Type 1
Surface with Door Front
Front Cat# HCN65TSD
65"H x 26"W x 6.5"D
PBA 400
Bussing:
Copper Bus
Standard Plating
Manufactured 10/26/2007

Includes:

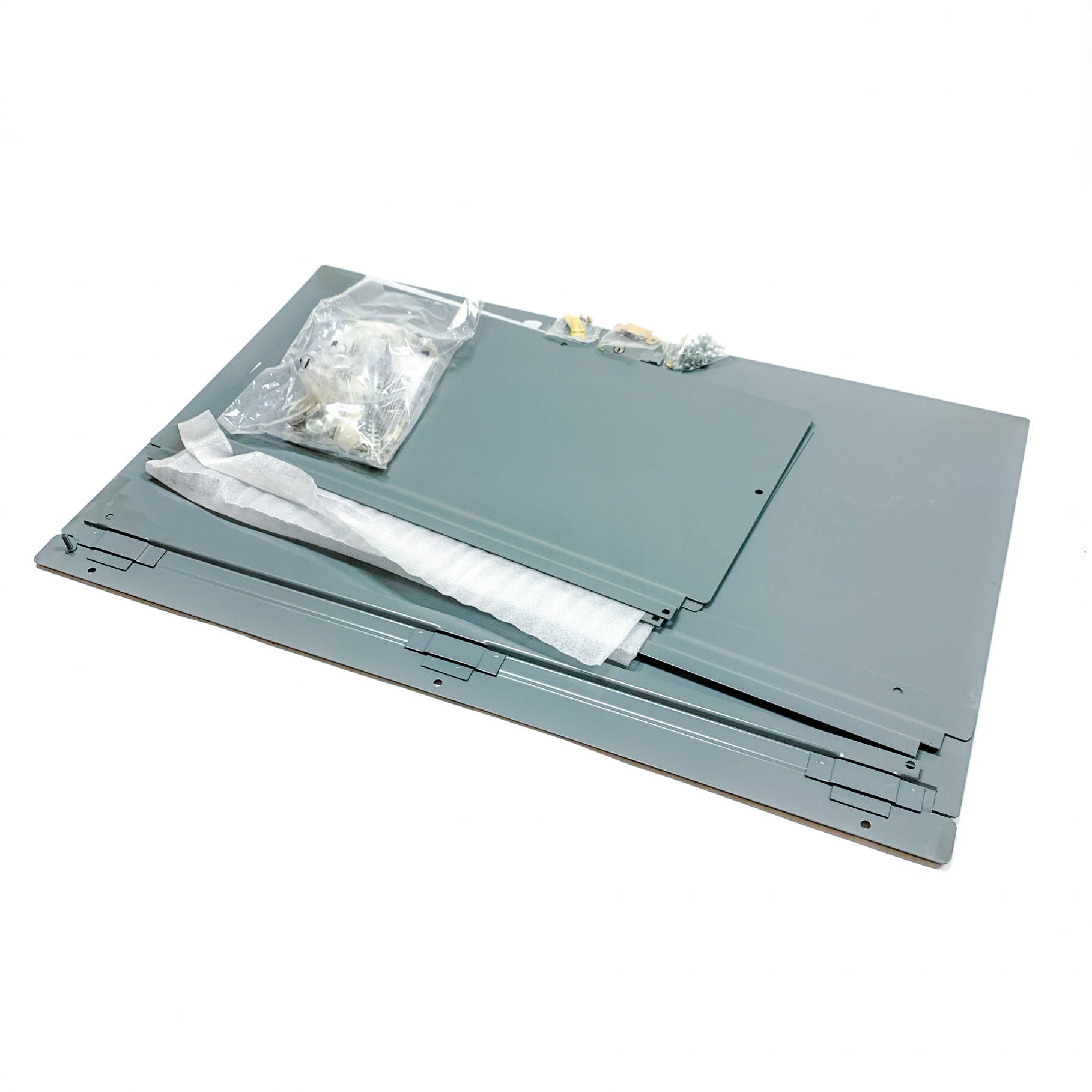

One (1) HCN65TSD Trim, I-Line Panelboard, hcn, surface, 4 pcs, w/door, 26x65 in

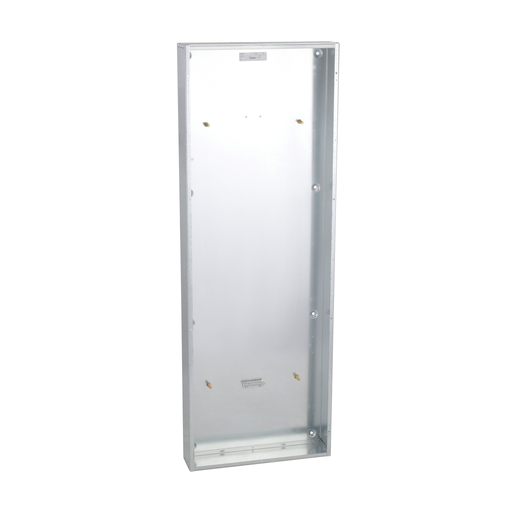

One (1) HC2665B HCN 26"W x 65"H Type 1 I-LINE Panelboard Enclosure
One (1) HCN23656 Interior, I-Line Panelboard, hcn, 600 A, main lugs, 26x65 in
Two (2) FA36020 FA/LA Molded Case Circuit Breaker, 600V, 20A, 3P

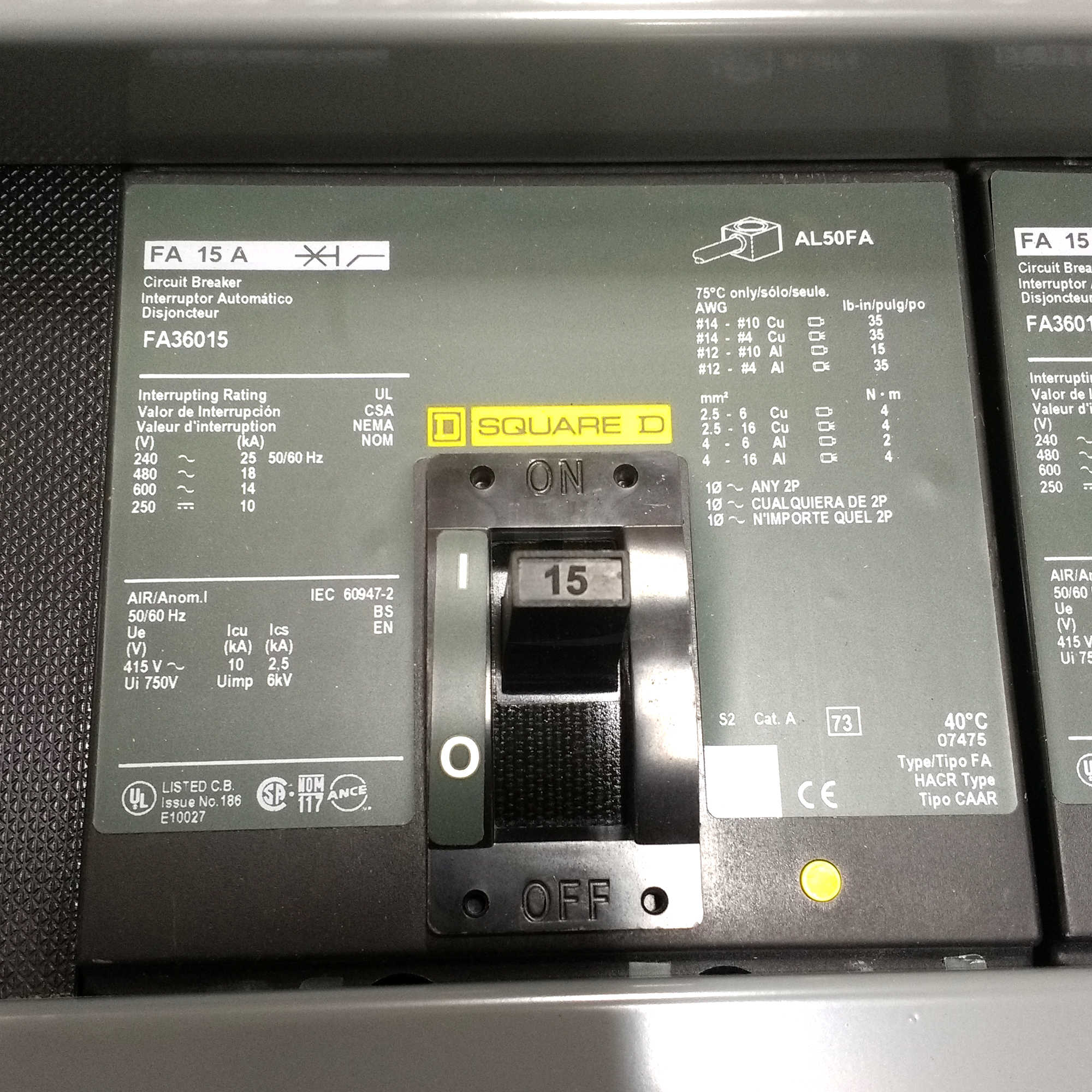

Three (3) FA/LA Molded Case Circuit Breaker, 600V, 15A, 3P

Box Cat#HC2665B NOT INCLUDED!
