/Products/Surplus Electric Motors/FD32CM2PH US/Nidec 1.5HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: FD32CM2PH

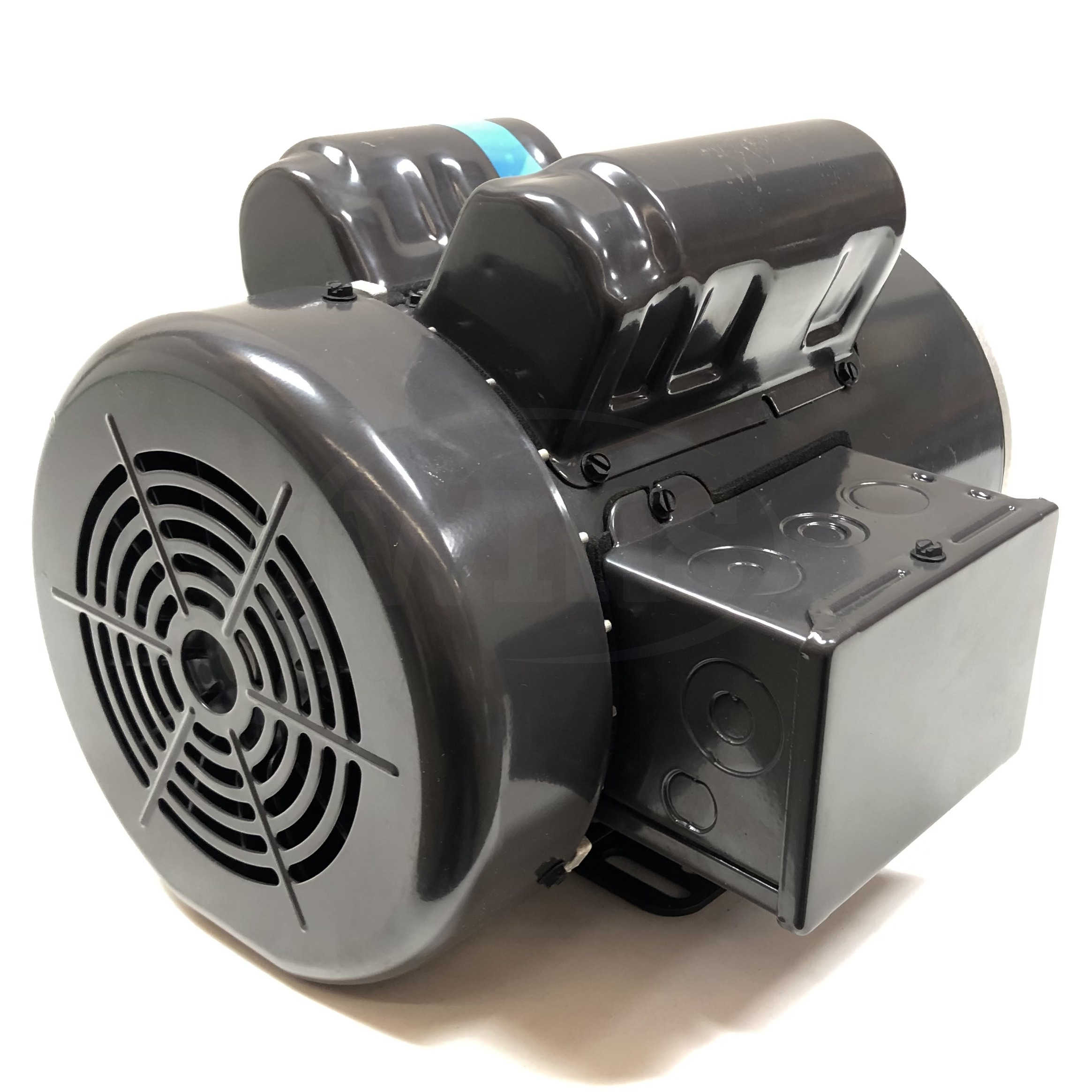

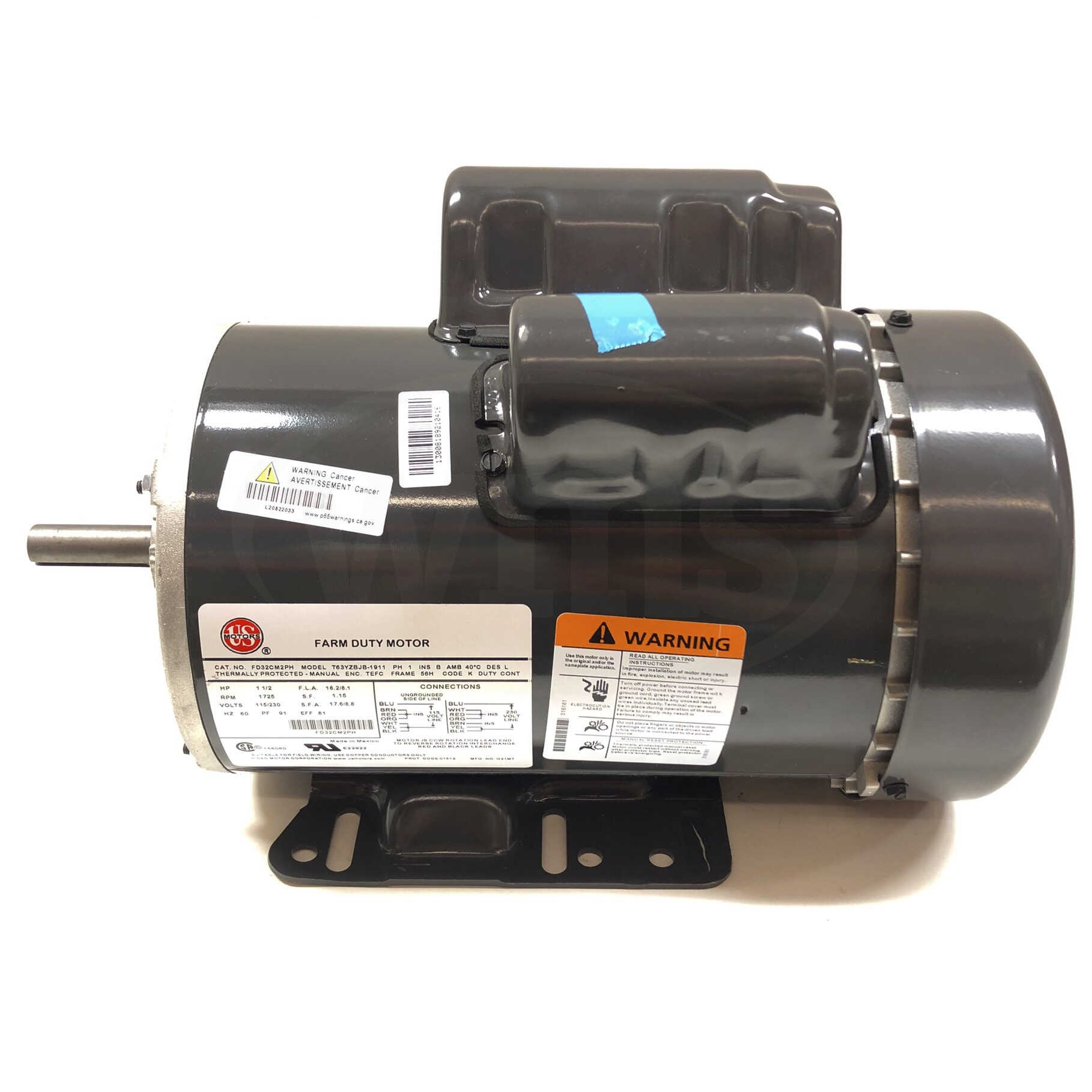

FD32CM2PH US/Nidec 1.5HP Electric Motor, 1800RPM

MFG: US Motors (Nidec Motor Corporation)
MFG Part Number: FD32CM2PH

Available Stock: 1
Selected accessories will also be added to cart
$468.97 / Each
Quantity:
New, Surplus Stock

Model_Number:T063BJB1911015B
PRODUCT NAME:1.5 HP - TEFC - 1725
PHASETYPE:1_CAP START-CAP RUN
MOTOR ENCLOSURE:TEFC
HORSEPOWER:1.5
KILOWATTS:1.1
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115/230
VOLTS :115
VOLTS 2:230
FRME :56
SHAFT CODE:H
STATOR DIAMETER:6.3
STACK:4
MOUNTING:RIGID
MOTOR TYPE:SMA
OPPOSITE END BEARING:6203
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:REVERSIBLE
SERVICE FACTOR:1.15
RUNCAPMFD:50
RUNCAPVOLTS:370
STARTCAPMFD:709
SHIPPING WEIGHT:32
THERMAL PROTECTION:MANUAL RESET
BREAKDOWN TORQUE:195.7
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:277.7
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:K
LOCKED ROTOR AMPS:94.39
NEMA NOMINAL EFFICIENCY:81
FULL LOAD AMPS PRIMARY:16.2/8.1
SERVICE FACTOR AMPS PRIMARY:17.6/8.8
